All parts of Makita 6844: 87 positions on 1 sheet

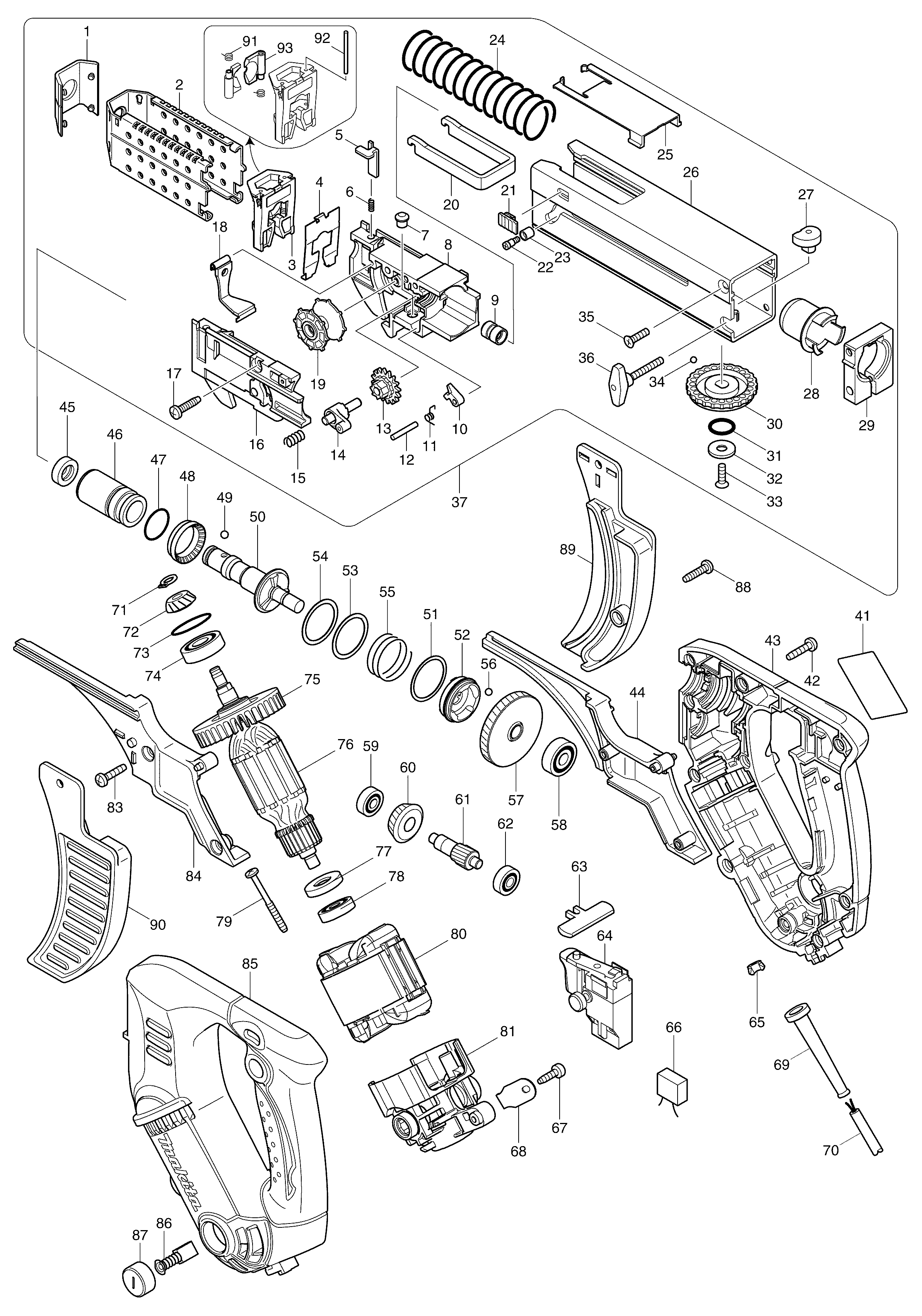

Sheet 1: Makita 6844 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 424043-2 | Makita 424043-2 Rubber Cover for 6844 6843 DFR550 DFR750 |
| 2 | 345841-0 | Makita 345841-0 STOPPER BASE 756844 |
| 3 | 158376-0 | Makita 158376-0 GUIDE BOX COMPLETE6842 |
| 4 | 345840-2 | Makita 345840-2 GUARD6842 |
| 5 | 345837-1 | Makita 345837-1 LEVER6842 |
| 6 | 233211-4 | Makita 233211-4 COMPRESSION SPRING 2 |
| 7 | 256451-7 | Makita 256451-7 PIN 6 |
| 8 | 450107-6 | Makita 450107-6 FEEDER BOX6842 |
| 9 | 257685-5 | Makita 257685-5 SLEEVE 6833 5MM SILVER |
| 10 | 310062-3 | Makita 310062-3 STOPPER |
| 11 | 231636-6 | Makita 231636-6 TORSION SPRING 4 6834 |
| 12 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 13 | 226344-2 | Makita 226344-2 SPUR GEAR 16 |
| 14 | 158374-4 | Makita 158374-4 RATCHET ARM COMPLETE6842 |
| 15 | 233212-2 | Makita 233212-2 COMPRESSION SPRING 6 FOR |
| 16 | 158378-6 | Makita 158378-6 BOXCOVER COMPLETE6844 |
| 17 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 18 | 162201-9 | Makita 162201-9 DUST COVER FOR 6833 |
| 19 | 416518-5 | Makita 416518-5 Wheel for 6833 |
| 20 | 345838-9 | Makita 345838-9 PLATE6842 |
| 21 | 450111-5 | Makita 450111-5 STOPPER6842 |
| 22 | 265177-0 | Makita 265177-0 SHOULDER FLAT HEAD6842 |
| 23 | 257764-9 | Makita 257764-9 SLEEVE 46842 |
| 24 | 234032-7 | Makita 234032-7 COMPRESSION SPRING 26844 |
| 25 | 450114-9 | Makita 450114-9 CASING COVER6842 |
| 26 | 158379-4 | Makita 158379-4 CASING 75 COMPLETE6844 |
| 27 | 310237-4 | Makita 310237-4 SHIFTER PIN6842 |
| 28 | 450110-7 | Makita 450110-7 Insulation Sleeve |
| 29 | 318181-9 | Makita 318181-9 CLAMPER6842 |
| 30 | 417056-0 | Makita 417056-0 DIAL 42 |
| 31 | 213107-5 | Makita 213107-5 O RING 12 |
| 32 | 267201-5 | Makita 267201-5 FLAT WASHER 6 6834 |
| 33 | 912117-6 | Makita 912117-6 COUNTERSUNK HEAD SCREW M4X12, BO4556 |
| 34 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 35 | 912117-6 | Makita 912117-6 COUNTERSUNK HEAD SCREW M4X12, BO4556 |
| 36 | 265778-4 | Makita 265778-4 SCREW M4X28 FOR 6833 |
| 41 | 863777-6 | Makita 863777-6 6844 NAME PLATE6844 |
| 42 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 43 | 188305-9 | Makita 188305-9 HOUSING SET6842 |
| 44 | 188304-1 | Makita 188304-1 SCREW GUIDE SET6844 |
| 45 | 421467-3 | Makita 421467-3 DUST COVER |
| 46 | 214173-5 | Makita 214173-5 PLANE BEARING 14, BFR440 |
| 47 | 213262-3 | Makita 213262-3 O RING 18 |
| 48 | 421927-5 | Makita 421927-5 SLEEVE 20, BFR440 |
| 49 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 50 | 324808-1 | Makita 324808-1 SPINDLE B6842 |
| 51 | 267332-0 | Makita 267332-0 FLAT WASHER 26, BFR440 |
| 52 | 223169-5 | Makita 223169-5 ,CLUTCH CAM C6842 |
| 53 | 267331-2 | Makita 267331-2 FLAT WASHER 25, BFR440 |
| 54 | 267331-2 | Makita 267331-2 FLAT WASHER 25, BFR440 |
| 55 | 234017-3 | Makita 234017-3 COMPRESSION SPRING 25, BFR440 |
| 56 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 57 | 226657-1 | Makita 226657-1 HELICAL GEAR 606844 |
| 58 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 59 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 60 | 227528-5 | Makita 227528-5 SPIRAL BEVEL GEAR 226842 |
| 61 | 226667-8 | Makita 226667-8 HELICAL GEAR 96844 |
| 62 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 63 | 419304-3 | Makita 419304-3 F/R CHANGE LEVER, BFR440 |
| 64 | 650590-9 | Makita 650590-9 Switch SGLl206CR for 6842 6843 6844 |
| 65 | 252045-6 | Makita 252045-6 SQUARE NUT M5 |
| 66 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 67 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 68 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 69 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 70 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
| 71 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 72 | 227527-7 | Makita 227527-7 SPIRAL BEVEL GEAR 156842 |
| 73 | 213380-7 | Makita 213380-7 O-RING 24 HR2450 |
| 74 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 76 | 515713-5 | Makita 515713-5 ARMATURE ASS'Y 220-26842 |
| 77 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 78 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 79 | 266069-6 | Makita 266069-6 TAPPING SCREW, UB1101 |
| 80 | 639372-2 | Makita 639372-2 FIELD 220-240V6842 |
| 81 | 158380-9 | Makita 158380-9 ENDBELL COMPLETE6842 |
| 83 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 84 | 188304-1 | Makita 188304-1 SCREW GUIDE SET6844 |
| 85 | 188305-9 | Makita 188305-9 HOUSING SET6842 |
| 86 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 87 | 643928-5 | Makita 643928-5 BRUSH HOLDER CAP, 9523NB |
| 88 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 89 | 188310-6 | Makita 188310-6 GUIDE ATTACHMENT SET6842 |
| 90 | 188310-6 | Makita 188310-6 GUIDE ATTACHMENT SET6842 |
| 91 | 233516-2 | Makita 233516-2 TORSION SPRING 46842 |
| 92 | 268188-4 | Makita 268188-4 PIN 26842 |
| 93 | 310236-6 | Makita 310236-6 GUIDE6842 |
