Makita 6835D
Makita 6835D: exploded parts diagram, 1 sheet, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6835D: 60 positions on 1 sheet

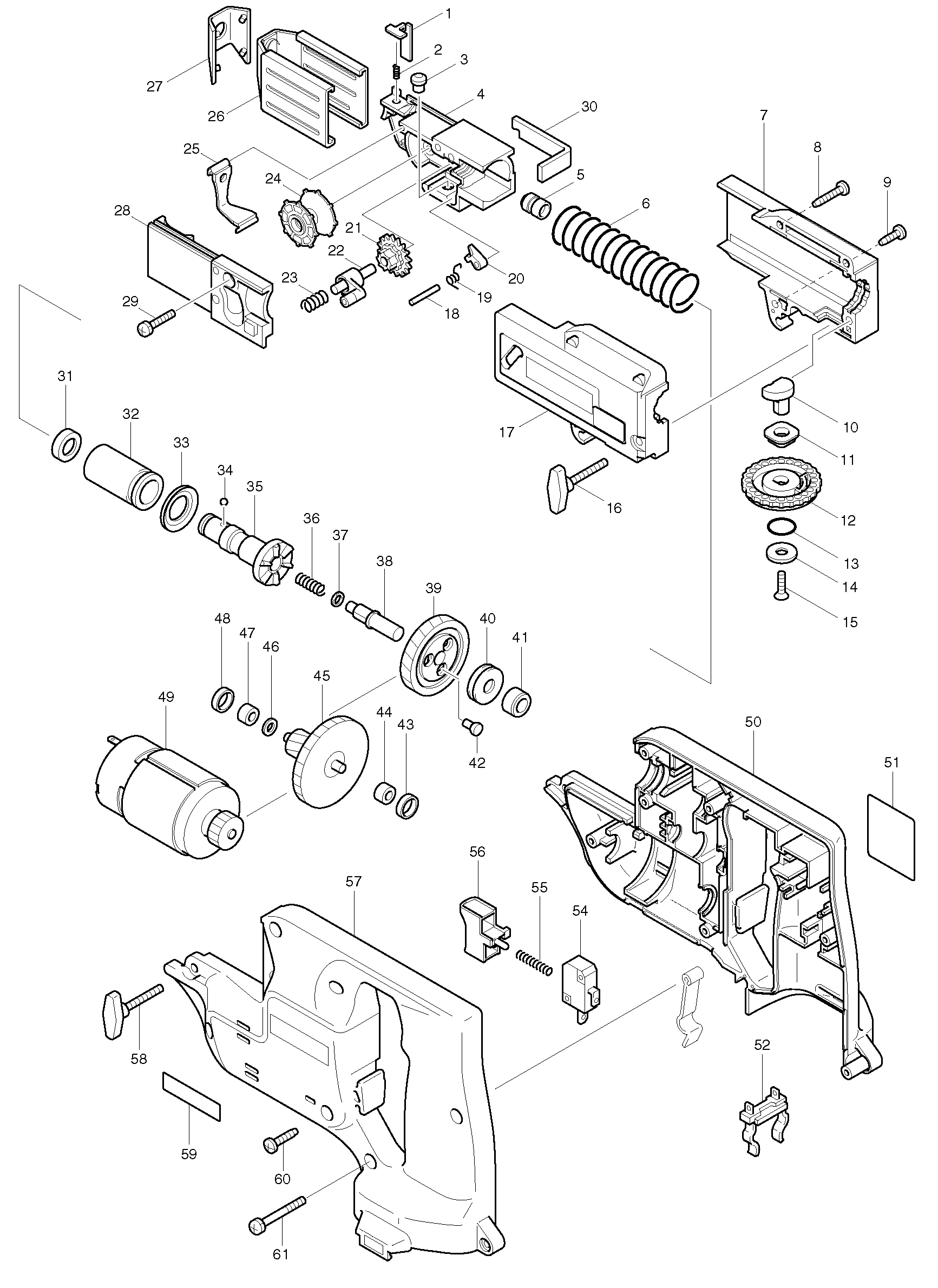

Sheet 1: Makita 6835D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 344625-3 | Makita 344625-3 LEVER |
| 2 | 233211-4 | Makita 233211-4 COMPRESSION SPRING 2 |
| 3 | 256451-7 | Makita 256451-7 PIN 6 |
| 4 | 416500-4 | Makita 416500-4 FEEDER BOX FOR DFR450 |
| 5 | 257687-1 | Makita 257687-1 SLEEVE 6 FOR 6833,6835d |
| 6 | 233209-1 | Makita 233209-1 COMPRESSION SPRING 21, 6833 |
| 7 | 182994-2 | Makita 182994-2 CASING SET |
| 8 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 9 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 10 | 310091-6 | Makita 310091-6 SHIFTER PIN |
| 11 | 257686-3 | Makita 257686-3 SLEEVE 8 |
| 12 | 417056-0 | Makita 417056-0 DIAL 42 |
| 13 | 213105-9 | Makita 213105-9 O RING 11, 6409 |
| 14 | 267201-5 | Makita 267201-5 FLAT WASHER 6 6834 |
| 15 | 912117-6 | Makita 912117-6 COUNTERSUNK HEAD SCREW M4X12, BO4556 |
| 16 | 265732-8 | Makita 265732-8 SCREW M4X28 FOR 6833 |
| 17 | 182994-2 | Makita 182994-2 CASING SET |
| 18 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 19 | 231636-6 | Makita 231636-6 TORSION SPRING 4 6834 |
| 20 | 310062-3 | Makita 310062-3 STOPPER |
| 21 | 226344-2 | Makita 226344-2 SPUR GEAR 16 |
| 22 | 152580-3 | Makita 152580-3 RATCHET ARM COMPLETE FOR |
| 23 | 233212-2 | Makita 233212-2 COMPRESSION SPRING 6 FOR |
| 24 | 416518-5 | Makita 416518-5 Wheel for 6833 |
| 25 | 162201-9 | Makita 162201-9 DUST COVER FOR 6833 |
| 26 | 344628-7 | Makita 344628-7 STOPPER BASE |
| 27 | 421617-0 | Makita 421617-0 CAP FOR 6833 |
| 28 | 152581-1 | Makita 152581-1 BOX COVER COMPLETE FOR |
| 29 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 30 | 344626-1 | Makita 344626-1 PLATE 6833 |
| 31 | 421467-3 | Makita 421467-3 DUST COVER |
| 32 | 214168-8 | Makita 214168-8 PLANE BEARING 14 FOR |
| 33 | 421618-8 | Makita 421618-8 RING 15 FOR |
| 34 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 35 | 323765-0 | Makita 323765-0 SPINDLE FOR 6833 |
| 36 | 233096-8 | Makita 233096-8 COMPRESSION SPRING 5 FOR |
| 37 | 267184-9 | Makita 267184-9 FLAT WASHER 6 FOR 6833 |
| 38 | 268032-5 | Makita 268032-5 AXEL |
| 39 | 226485-4 | Makita 226485-4 HELICAL GEAR 55 |
| 40 | 212042-4 | Makita 212042-4 THRUST NEEDLE BEARING 821 |
| 41 | 214028-4 | Makita 214028-4 PLANE BEARING 8 |
| 42 | 256439-7 | Makita 256439-7 PIN 4 FOR 6831DW |
| 43 | 165115-1 | Makita 165115-1 RUBBER SLEEVE 10 |
| 44 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 45 | 226813-3 | Makita 226813-3 GEAR COMPLETE 16-49 |
| 46 | 253811-4 | Makita 253811-4 FLAT WASHER 5, 5007MG |
| 47 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 48 | 165115-1 | Makita 165115-1 RUBBER SLEEVE 10 |
| 49 | 629677-8 | Makita 629677-8 DC Motor 12V for 6831D 6835DWA |
| 50 | 183169-6 | Makita 183169-6 HOUSING SET 6835D |
| 51 | 851897-8 | Makita 851897-8 NAME PLATE 6835D |
| 52 | 643909-9 | Makita 643909-9 BATTERY HOLDER *, 6222D |
| 54 | 651891-8 | Makita 651891-8 Switch, 6900DW SS330D |
| 55 | 233105-3 | Makita 233105-3 COMPRESSION SPRING 4 |
| 56 | 415478-8 | Makita 415478-8 SWITCH LEVER |
| 57 | 183169-6 | Makita 183169-6 HOUSING SET 6835D |
| 58 | 265732-8 | Makita 265732-8 SCREW M4X28 FOR 6833 |
| 59 | 819080-3 | |
| 60 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 61 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
