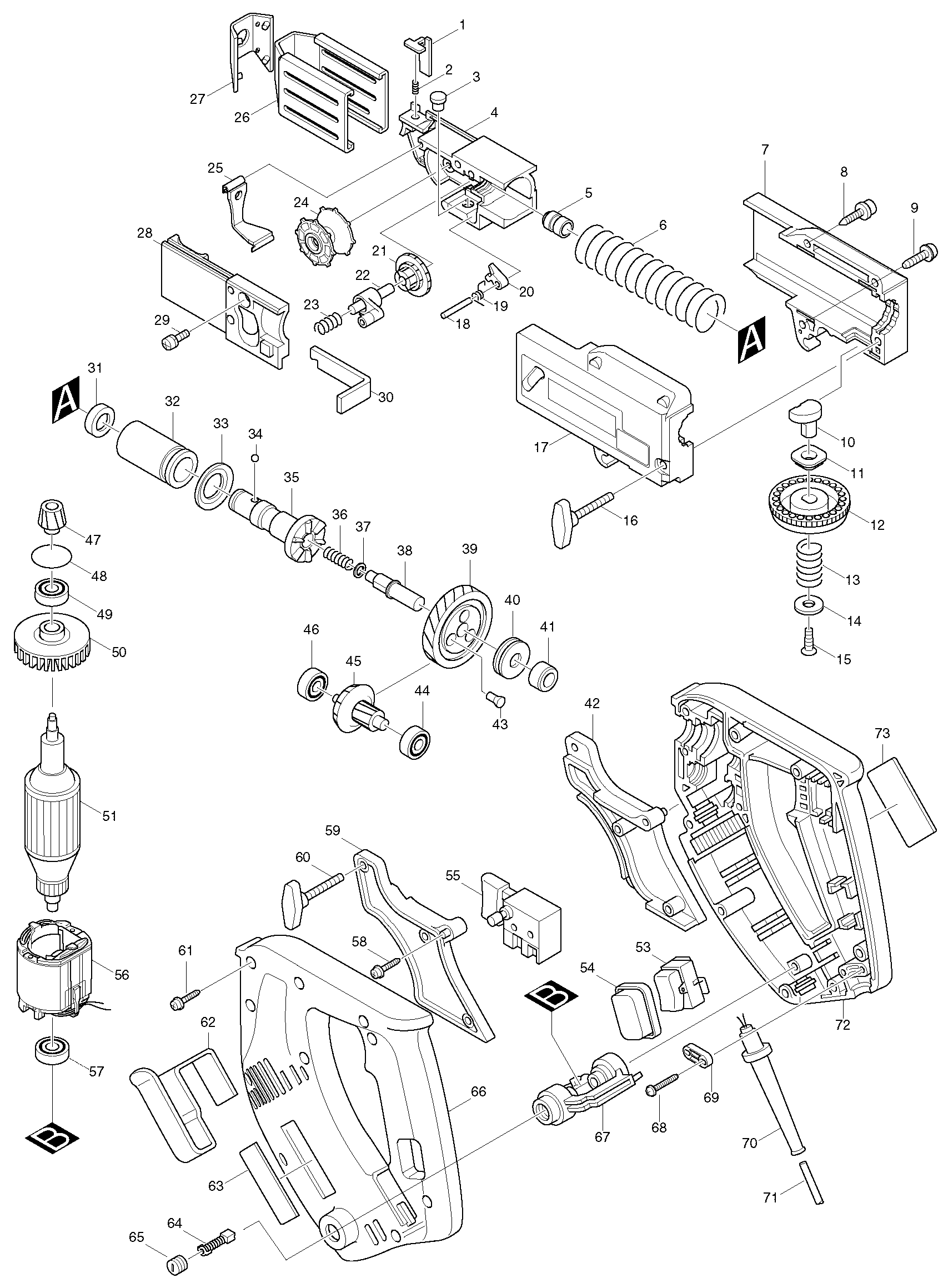

Sheet 1: Makita 6834 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 344625-3 | Makita 344625-3 LEVER |
| 2 | 233211-4 | Makita 233211-4 COMPRESSION SPRING 2 |
| 3 | 256451-7 | Makita 256451-7 PIN 6 |
| 4 | 416500-4 | Makita 416500-4 FEEDER BOX FOR DFR450 |
| 5 | 257687-1 | Makita 257687-1 SLEEVE 6 FOR 6833,6835d |
| 6 | 233210-6 | Makita 233210-6 COMPRESSION SPRING 21 |
| 7 | 182998-4 | Makita 182998-4 CASING SET FOR |
| 8 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 9 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 10 | 310061-5 | Makita 310061-5 SHIFTER PIN |
| 11 | 257686-3 | Makita 257686-3 SLEEVE 8 |
| 12 | 416517-7 | Makita 416517-7 KNOB 42 |
| 13 | 233089-5 | Makita 233089-5 COMPRESSION SPRING, 9067 |
| 14 | 267117-4 | Makita 267117-4 FLAT WASHER 6 |
| 15 | 912117-6 | Makita 912117-6 COUNTERSUNK HEAD SCREW M4X12, BO4556 |
| 16 | 265732-8 | Makita 265732-8 SCREW M4X28 FOR 6833 |
| 17 | 182998-4 | Makita 182998-4 CASING SET FOR |
| 18 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 19 | 231636-6 | Makita 231636-6 TORSION SPRING 4 6834 |
| 20 | 310062-3 | Makita 310062-3 STOPPER |
| 21 | 226344-2 | Makita 226344-2 SPUR GEAR 16 |
| 22 | 152580-3 | Makita 152580-3 RATCHET ARM COMPLETE FOR |
| 23 | 233212-2 | Makita 233212-2 COMPRESSION SPRING 6 FOR |
| 24 | 416518-5 | Makita 416518-5 Wheel for 6833 |
| 25 | 162201-9 | Makita 162201-9 DUST COVER FOR 6833 |
| 26 | 344628-7 | Makita 344628-7 STOPPER BASE |
| 27 | 421617-0 | Makita 421617-0 CAP FOR 6833 |
| 28 | 152581-1 | Makita 152581-1 BOX COVER COMPLETE FOR |
| 29 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 30 | 344627-9 | Makita 344627-9 PLATE |
| 31 | 421467-3 | Makita 421467-3 DUST COVER |
| 32 | 214168-8 | Makita 214168-8 PLANE BEARING 14 FOR |
| 33 | 421618-8 | Makita 421618-8 RING 15 FOR |
| 34 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 35 | 323765-0 | Makita 323765-0 SPINDLE FOR 6833 |
| 36 | 233096-8 | Makita 233096-8 COMPRESSION SPRING 5 FOR |
| 37 | 267184-9 | Makita 267184-9 FLAT WASHER 6 FOR 6833 |
| 38 | 268032-5 | Makita 268032-5 AXEL |
| 39 | 226486-2 | Makita 226486-2 HELICAL GEAR 59 |
| 40 | 212042-4 | Makita 212042-4 THRUST NEEDLE BEARING 821 |
| 41 | 214028-4 | Makita 214028-4 PLANE BEARING 8 |
| 42 | 182984-5 | Makita 182984-5 SCREW GUIDE SET FOR |
| 43 | 256439-7 | Makita 256439-7 PIN 4 FOR 6831DW |
| 44 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 45 | 226823-0 | Makita 226823-0 GEAR COMPLETE 9-22 |
| 46 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 47 | 226704-8 | Makita 226704-8 SPIRAL BEVEL GEAR 15 |
| 48 | 213008-7 | Makita 213008-7 O RING 22.4 |
| 49 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 50 | 241869-5 | Makita 241869-5 FAN 55, JR181D |
| 51 | 517063-4 | Makita 517063-4 ARMATURE ASS'Y 220V |
| 53 | 651569-3 | Makita 651569-3 SWITCH |
| 54 | 421621-9 | Makita 421621-9 DUST COVER FOR |
| 55 | 651283-1 | Makita 651283-1 SWITCH 6833 |
| 56 | 633258-2 | Makita 633258-2 FIELD 220V |
| 57 | 211026-9 | Makita 211026-9 BALL BEARING 627LLB |
| 58 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 59 | 182984-5 | Makita 182984-5 SCREW GUIDE SET FOR |
| 60 | 265732-8 | Makita 265732-8 SCREW M4X28 FOR 6833 |
| 61 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 62 | 344056-6 | Makita 344056-6 HOOK |
| 63 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 64 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 65 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 66 | 182601-7 | Makita 182601-7 HOUSING SET |
| 67 | 152433-6 | Makita 152433-6 HOLDER ARM CPMPLETE |
| 68 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 69 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 70 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 71 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
| 72 | 182601-7 | Makita 182601-7 HOUSING SET |
| 73 | 859469-3 | Makita 859469-3 NAME PLATE 6834 |
