Makita 6830: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6830: 63 positions on 1 sheet

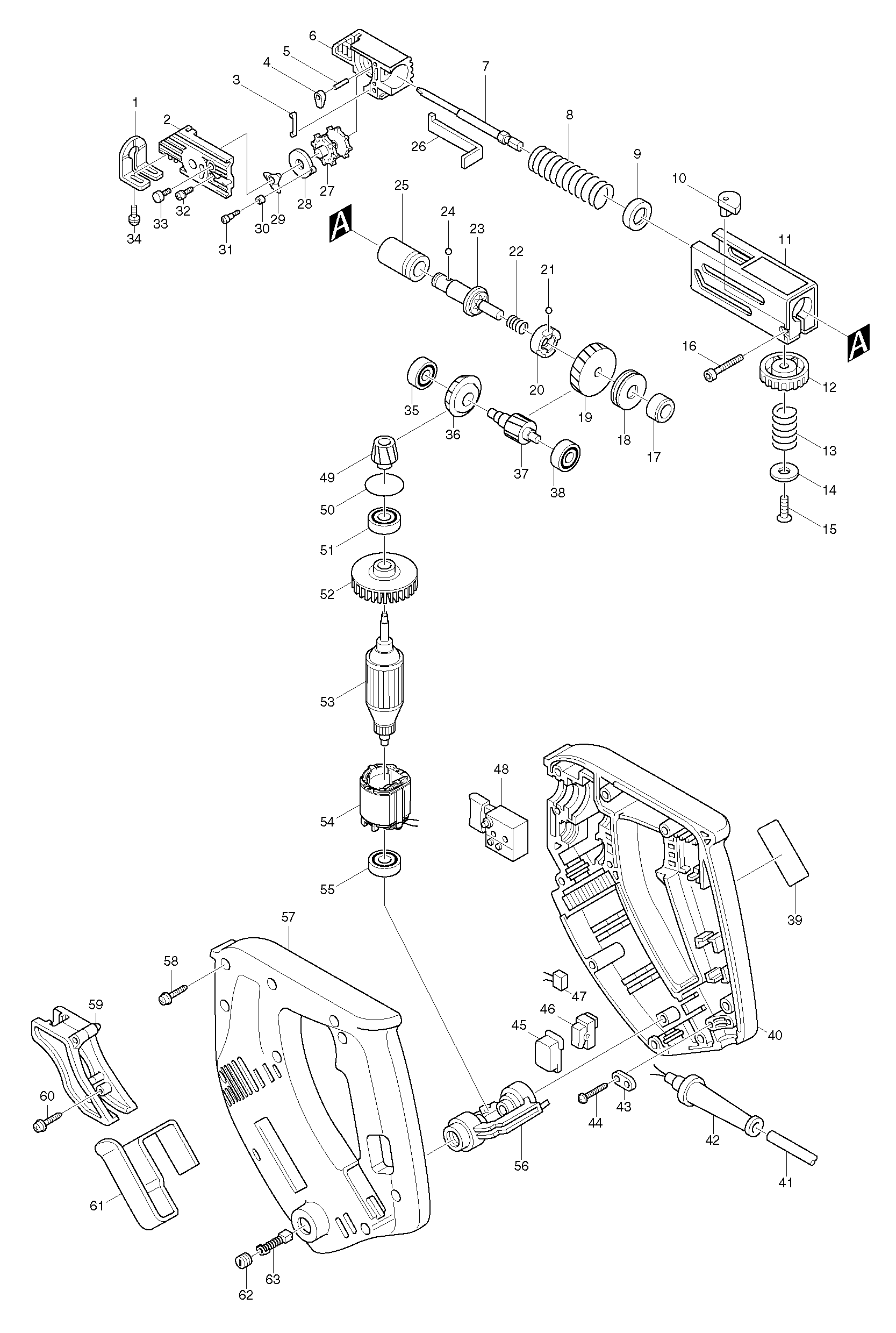

Sheet 1: Makita 6830 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 344054-0 | Makita 344054-0 STOPPER PLATE |
| 2 | 152502-3 | Makita 152502-3 BOX COVER COMPLETE |
| 3 | 232132-7 | |
| 4 | 311923-0 | |
| 5 | 256254-9 | Makita 256254-9 PIN 3, 4322 |
| 6 | 152467-9 | Makita 152467-9 FEEDER BOX COMPLETE |
| 7 | 784234-0 | Makita 784234-0 SCREWBIT 110 MM PH2, Ø6, 6830, 6831D (BULK) |
| 8 | 233112-6 | Makita 233112-6 COMPRESSION SPRING 21 |
| 9 | 421467-3 | Makita 421467-3 DUST COVER |
| 10 | 311924-8 | Makita 311924-8 SHIFTER PIN |
| 11 | 150565-3 | Makita 150565-3 CASING COMPLETE FOR |
| 12 | 415451-8 | Makita 415451-8 NUPPI |
| 13 | 233089-5 | Makita 233089-5 COMPRESSION SPRING, 9067 |
| 14 | 267117-4 | Makita 267117-4 FLAT WASHER 6 |
| 15 | 912117-6 | Makita 912117-6 COUNTERSUNK HEAD SCREW M4X12, BO4556 |
| 16 | 922146-1 | Makita 922146-1 HEX. SOCKET HEAD BOLT M4X |
| 17 | 214028-4 | Makita 214028-4 PLANE BEARING 8 |
| 18 | 212042-4 | Makita 212042-4 THRUST NEEDLE BEARING 821 |
| 19 | 226413-9 | Makita 226413-9 HELICAL GEAR 55 |
| 20 | 223095-8 | Makita 223095-8 CLUTCH CAM |
| 21 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 22 | 233006-5 | Makita 233006-5 COMPRESSION SPRING 9 |
| 23 | 223106-9 | Makita 223106-9 SPINDLE |
| 24 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 25 | 214162-0 | Makita 214162-0 PLANE BEARING 14 |
| 26 | 344055-8 | Makita 344055-8 PLATE |
| 27 | 311921-4 | |
| 28 | 311976-9 | Makita 311976-9 RATCHET DISC |
| 29 | 232133-5 | Makita 232133-5 LEAF SPRING |
| 30 | 257664-3 | Makita 257664-3 SLEEVE 4 |
| 31 | 265036-8 | Makita 265036-8 + FLAT HEAD SCREW M3X5 |
| 32 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 33 | 922107-1 | Makita 922107-1 Hex. Socket Head Bolt for LC1230 |
| 34 | 922107-1 | Makita 922107-1 Hex. Socket Head Bolt for LC1230 |
| 35 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 36 | 226705-6 | Makita 226705-6 SPIRAL BEVEL GEAR 22 |
| 37 | 226412-1 | Makita 226412-1 HELICAL GEAR 14 |
| 38 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 39 | 857517-2 | |
| 40 | 182601-7 | Makita 182601-7 HOUSING SET |
| 41 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 42 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 43 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 44 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 45 | 421460-7 | Makita 421460-7 DUST COVER HR2400 |
| 46 | 651556-2 | Makita 651556-2 SWITCH VLX11 |
| 47 | 645173-8 | Makita 645173-8 CAPACITOR, JR3000V |
| 48 | 651272-6 | Makita 651272-6 SWITCH SGEL106CV-1 |
| 49 | 226704-8 | Makita 226704-8 SPIRAL BEVEL GEAR 15 |
| 50 | 213008-7 | Makita 213008-7 O RING 22.4 |
| 51 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 52 | 241869-5 | Makita 241869-5 FAN 55, JR181D |
| 53 | 517063-4 | Makita 517063-4 ARMATURE ASS'Y 220V |
| 54 | 633258-2 | Makita 633258-2 FIELD 220V |
| 55 | 211026-9 | Makita 211026-9 BALL BEARING 627LLB |
| 56 | 152433-6 | Makita 152433-6 HOLDER ARM CPMPLETE |
| 57 | 182601-7 | Makita 182601-7 HOUSING SET |
| 58 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 59 | 415352-0 | Makita 415352-0 SCREW GUIDE |
| 60 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 61 | 344056-6 | Makita 344056-6 HOOK |
| 62 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 63 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
