Makita 6827: exploded parts diagram, 1 sheet, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6827: 60 positions on 1 sheet

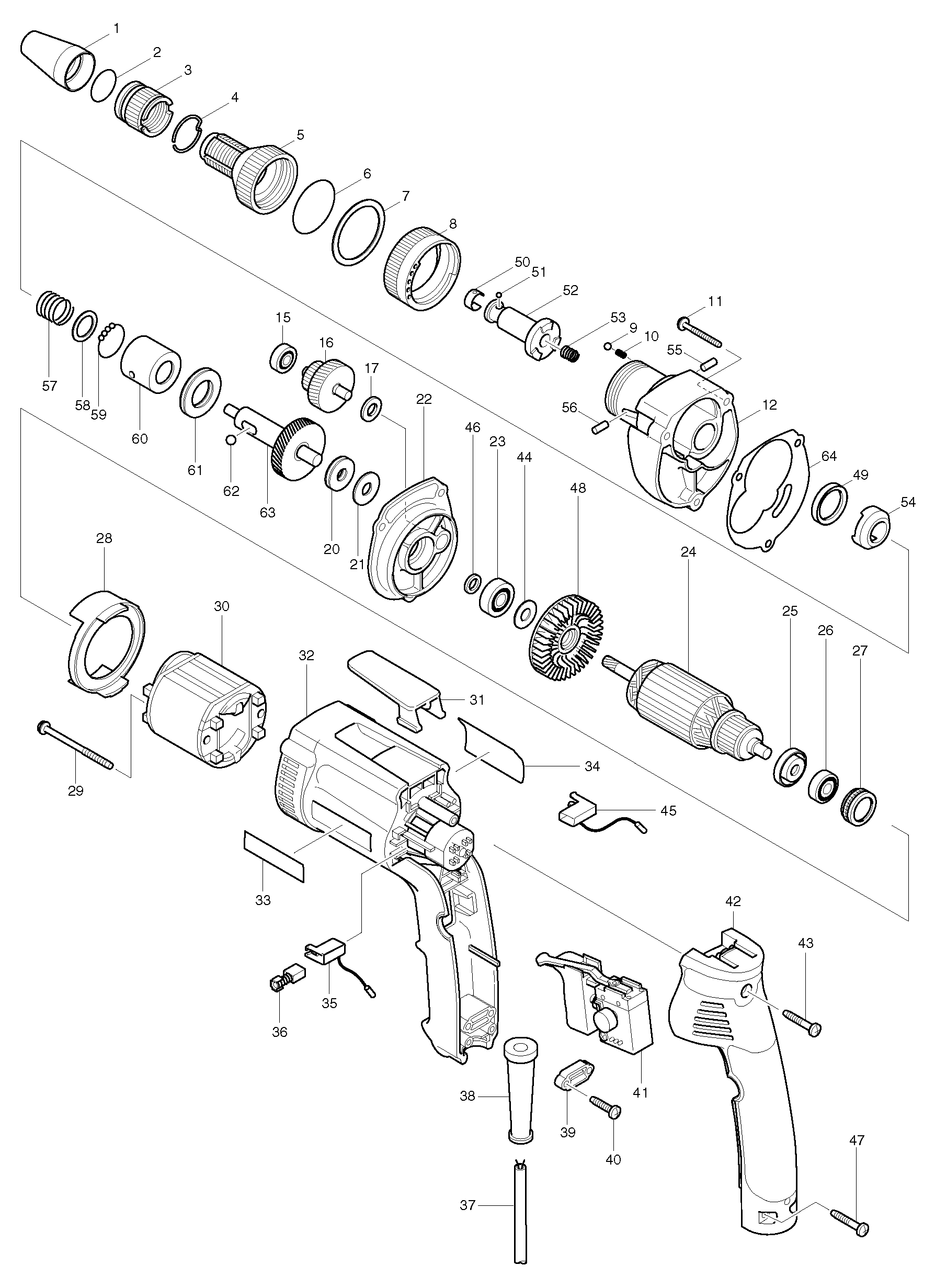

Sheet 1: Makita 6827 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 322120-3 | Makita 322120-3 FRONT CAP, 6827 |
| 2 | 213310-8 | Makita 213310-8 O-RING 20 6805BV |
| 3 | 322073-6 | Makita 322073-6 LOCATOR, 6827 |
| 4 | 231940-3 | Makita 231940-3 RING SPRING 22 |
| 5 | 324140-3 | Makita 324140-3 CLUTCH COVER, 6827 |
| 6 | 213486-1 | Makita 213486-1 O RING 35 |
| 7 | 253806-7 | Makita 253806-7 FLAT WASHER 36, 6826 |
| 8 | 152841-1 | Makita 152841-1 RING 36 COMPLETE ETE, 6827 |
| 9 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 10 | 233314-4 | Makita 233314-4 COMPRESSION SPRING 4, 5007MG |
| 11 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 12 | 317440-8 | Makita 317440-8 GEAR HOUSING, 6827 |
| 15 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 16 | 226133-5 | Makita 226133-5 GEAR COMPLATE 17-35, 6823 |
| 17 | 267017-8 | Makita 267017-8 FLAT WASHER 8, 6827 |
| 20 | 212042-4 | Makita 212042-4 THRUST NEEDLE BEARING 821 |
| 21 | 261111-8 | Makita 261111-8 URETHANE WASHER 8, 6827 |
| 22 | 152913-2 | Makita 152913-2 GEAR HOUSING COVER COMPLETE, 6827 |
| 23 | 210007-0 | Makita 210007-0 BALL BEARING 608VV, 6827 |
| 24 | 517323-4 | Makita 517323-4 ARMATURE ASSY 220V, 6827 |
| 25 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 26 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 27 | 421479-6 | Makita 421479-6 RUBBER RING 19 JN1601,6823, DP3003 |
| 28 | 416993-5 | |
| 29 | 266147-2 | Makita 266147-2 TAPPING SCREW FLANGE PT 4 X55 |
| 30 | 633443-7 | Makita 633443-7 FIELD 220-240V, 6823 |
| 31 | 417625-7 | Makita 417625-7 HOOK, 6827 |
| 32 | 183285-4 | Makita 183285-4 MOTOR HOUSING SET 6826 |
| 33 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 34 | 852989-6 | |
| 35 | 643960-9 | |
| 36 | 191962-4 | Old code CB-419 = CB-407 |
| 37 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
| 38 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 39 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 40 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 41 | 651978-6 | Makita 651978-6 Switch C3MA-2L(N) for 6823 6824 6825 6825R 6826 6827 |
| 42 | 151961-8 | Makita 151961-8 HANDLE COVER COMPLETE |
| 43 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 44 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 45 | 643961-7 | |
| 46 | 262087-2 | Makita 262087-2 RING 8, 6825 |
| 47 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 48 | 240022-0 | Makita 240022-0 FAN 52 6824 6826 |
| 49 | 421766-3 | Makita 421766-3 RING 20 |
| 50 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 51 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 52 | 134461-3 | Makita 134461-3 SPINDLE COMPLETE, 6827 |
| 53 | 231278-6 | Makita 231278-6 COMPRESSION SPRING 6, 6827 |
| 54 | 223073-8 | Makita 223073-8 CLUTCH CAM, 6827 |
| 55 | 256226-4 | Makita 256226-4 PIN 4, LS1016 |
| 56 | 256226-4 | Makita 256226-4 PIN 4, LS1016 |
| 57 | 231423-3 | Makita 231423-3 COMPRESSION SPRING 13.6, 6827 |
| 58 | 253837-6 | Makita 253837-6 FLAT WASHER 14, 6826 |
| 59 | 216014-1 | Makita 216014-1 STEEL BALL 3.2 |
| 60 | 324141-1 | Makita 324141-1 SLEEVE |
| 61 | 212262-0 | Makita 212262-0 THRUST NEEDLE BEARING 183 |
| 62 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 63 | 152840-3 | Makita 152840-3 GEAR HOUSING COMPLETE, 6827 |
