Makita 6826
Makita 6826: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6826: 50 positions on 1 sheet

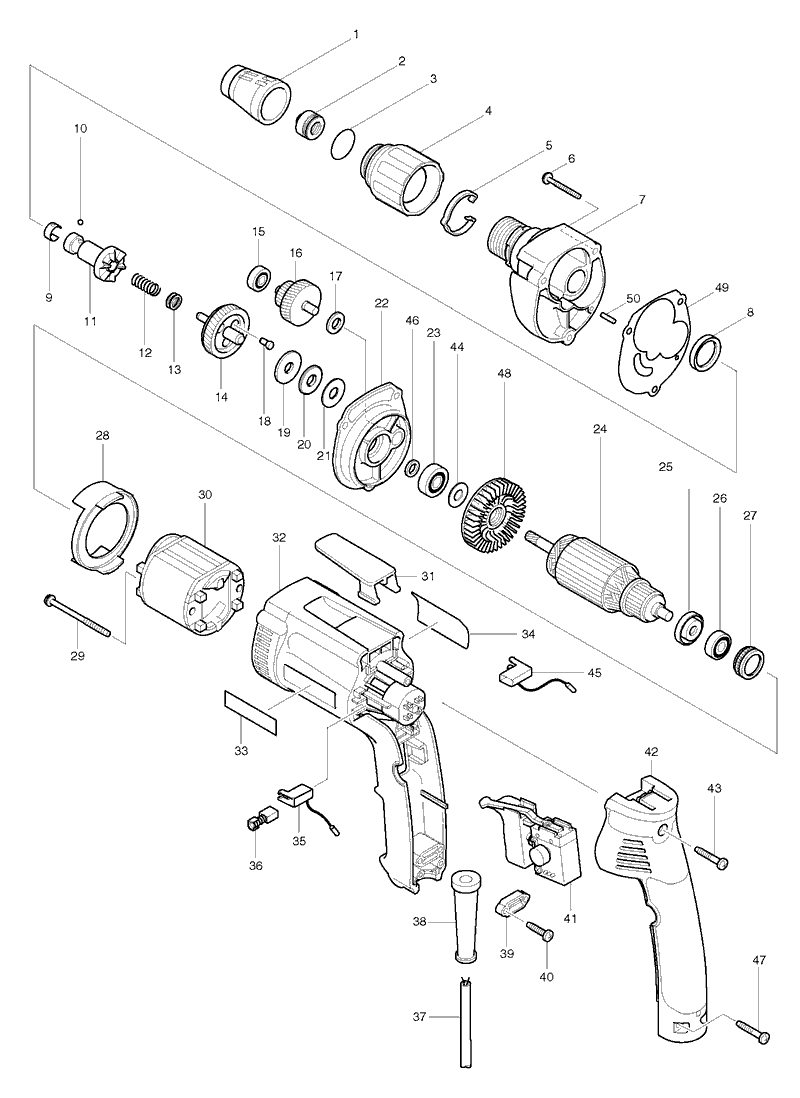

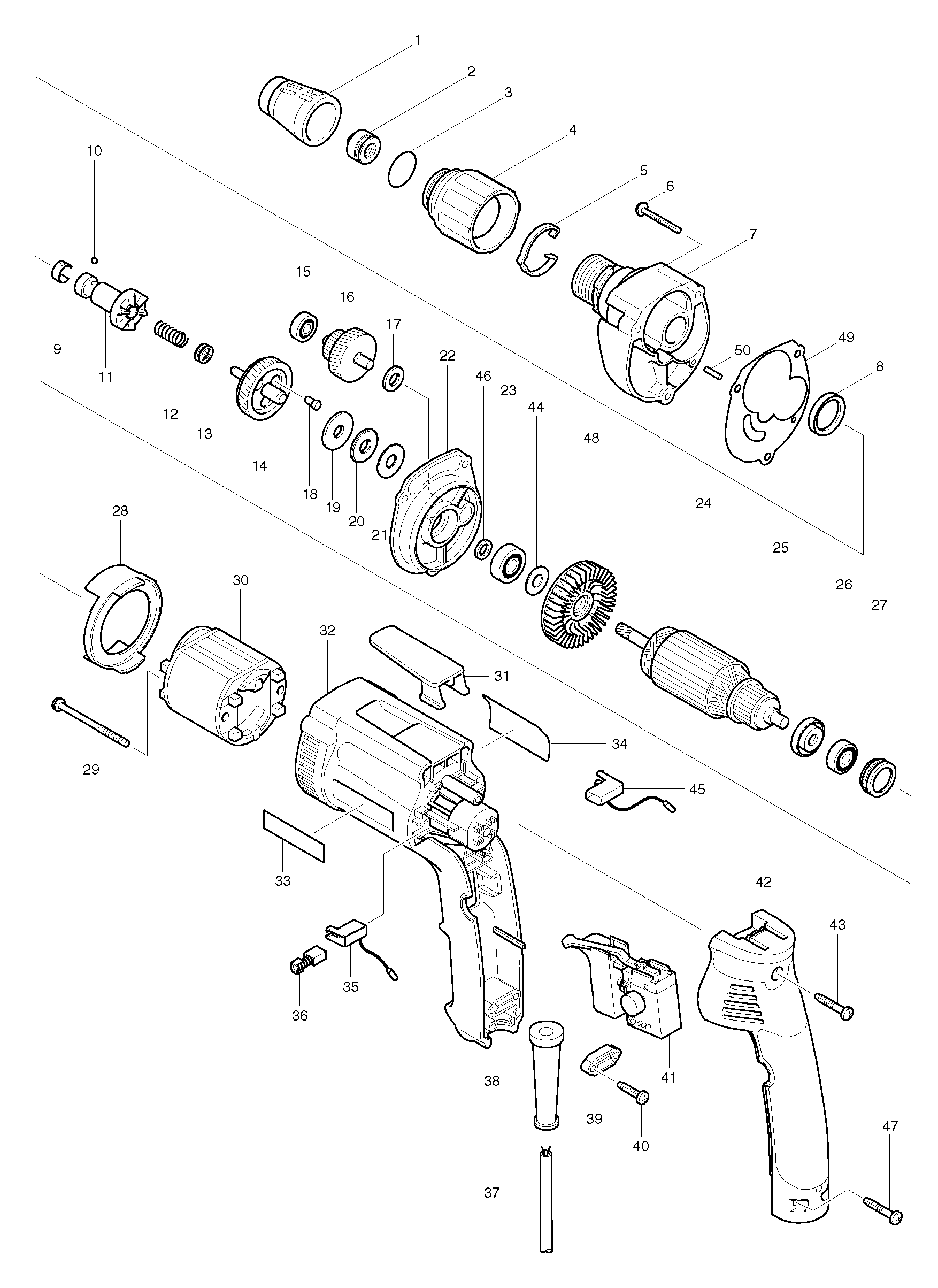

Sheet 1: Makita 6826 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 152822-5 | Makita 152822-5 LOCATION COMPLETE 5/16, 6826 |
| 2 | 421775-2 | Makita 421775-2 DUST SEAL RING, 6827 |
| 3 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 4 | 416994-3 | Makita 416994-3 LOCK RING, 6827 |
| 5 | 232154-7 | Makita 232154-7 LEAF SPRING |
| 6 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 7 | 152880-1 | Makita 152880-1 GEAR HOUSING COMPLETE, 6826 |
| 8 | 421766-3 | Makita 421766-3 RING 20 |
| 9 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 10 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 11 | 152838-0 | Makita 152838-0 SPINDLE COMPLETE, 6826 |
| 12 | 233257-0 | Makita 233257-0 TENSION SPRING 8, 6827 |
| 13 | 267202-3 | Makita 267202-3 FLAT WASHER 8, 6827 |
| 14 | 152837-2 | Makita 152837-2 GEAR COMPLETE, 6826 |
| 15 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 16 | 226133-5 | Makita 226133-5 GEAR COMPLATE 17-35, 6823 |
| 17 | 267017-8 | Makita 267017-8 FLAT WASHER 8, 6827 |
| 18 | 256439-7 | Makita 256439-7 PIN 4 FOR 6831DW |
| 19 | 216213-5 | |
| 20 | 216415-3 | Makita 216415-3 THRUST NEEDLE GAGE 821, 6826 |
| 21 | 216212-7 | Makita 216212-7 WASHER 821, 6826 |
| 22 | 152912-4 | Makita 152912-4 GEAR HOUSING COVER COMPLETE, 6826 |
| 23 | 210007-0 | Makita 210007-0 BALL BEARING 608VV, 6827 |
| 24 | 517323-4 | Makita 517323-4 ARMATURE ASSY 220V, 6827 |
| 25 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 26 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 27 | 421479-6 | Makita 421479-6 RUBBER RING 19 JN1601,6823, DP3003 |
| 28 | 416993-5 | |
| 29 | 266147-2 | Makita 266147-2 TAPPING SCREW FLANGE PT 4 X55 |
| 30 | 633443-7 | Makita 633443-7 FIELD 220-240V, 6823 |
| 31 | 417625-7 | Makita 417625-7 HOOK, 6827 |
| 32 | 183285-4 | Makita 183285-4 MOTOR HOUSING SET 6826 |
| 33 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 34 | 852983-8 | Makita 852983-8 NAME PLATE 6826 |
| 35 | 643960-9 | |
| 36 | 191962-4 | Old code CB-419 = CB-407 |
| 37 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
| 38 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 39 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 40 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 41 | 651978-6 | Makita 651978-6 Switch C3MA-2L(N) for 6823 6824 6825 6825R 6826 6827 |
| 42 | 151961-8 | Makita 151961-8 HANDLE COVER COMPLETE |
| 43 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 44 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 45 | 643961-7 | |
| 46 | 262087-2 | Makita 262087-2 RING 8, 6825 |
| 47 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 48 | 240022-0 | Makita 240022-0 FAN 52 6824 6826 |
| 49 | 442136-3 | Makita 442136-3 GASKET, 6827 |
| 50 | 256157-7 |
