All parts of Makita 6822: 43 positions on 1 sheet

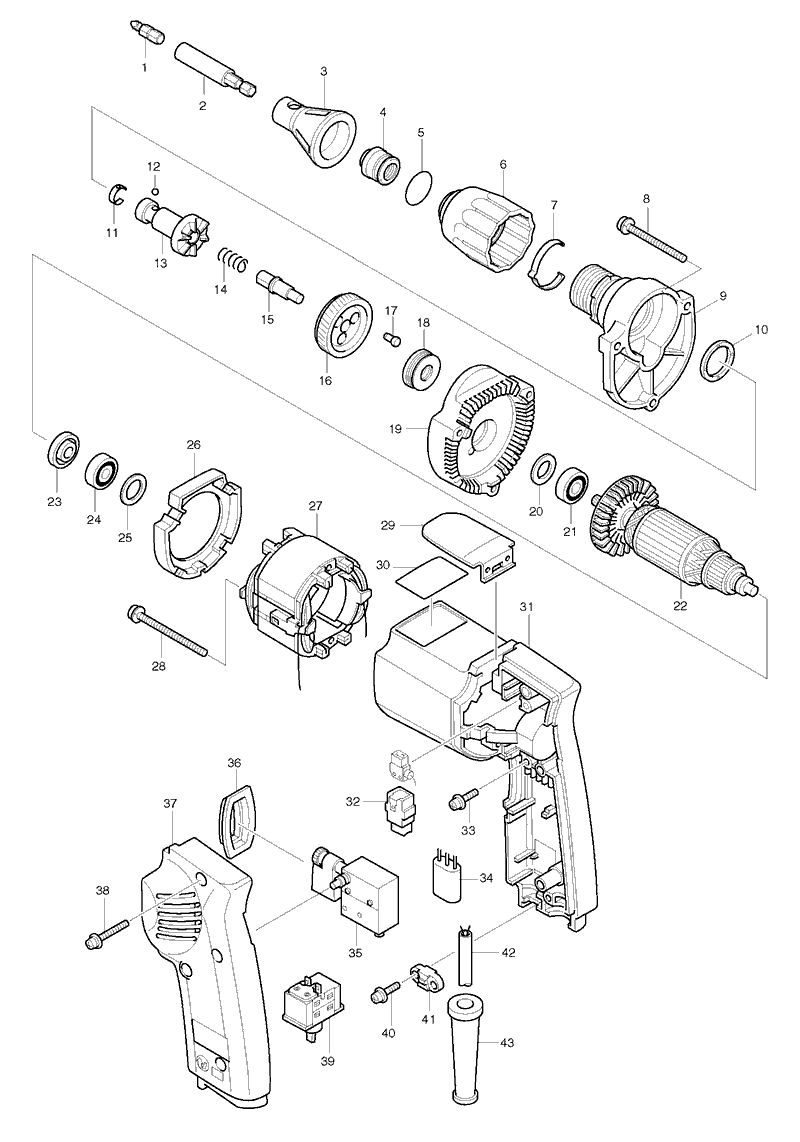

Sheet 1: Makita 6822 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 784211-2 | Makita 784211-2 PHILLIPS INSERT BIT 2-25 |
| 2 | 784807-9 | |
| 3 | 151561-4 | Makita 151561-4 LOCATOR COMPLETE |
| 4 | 421631-6 | Makita 421631-6 DUST SEAL RING FOR 6822 |
| 5 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 6 | 416756-9 | Makita 416756-9 LOCK RING |
| 7 | 232154-7 | Makita 232154-7 LEAF SPRING |
| 8 | 911173-3 | Makita 911173-3 PAN HEAD SCREW M4X45 |
| 9 | 151562-2 | |
| 10 | 421392-8 | Makita 421392-8 RING 20 6820V |
| 11 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 12 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 13 | 223107-7 | Makita 223107-7 SPINDLE 6821 |
| 14 | 233126-5 | Makita 233126-5 COMPRESSION SPRING, 6824N |
| 15 | 268034-1 | Makita 268034-1 PIN 8 |
| 16 | 226444-8 | Makita 226444-8 HELICAL GEAR 46 6821 |
| 17 | 256439-7 | Makita 256439-7 PIN 4 FOR 6831DW |
| 18 | 212951-7 | Makita 212951-7 THRUST NEEDLE BEARING 102 |
| 19 | 150997-4 | Makita 150997-4 GEAR HOUSING COVER COMPLE TE |
| 20 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 21 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 22 | 511768-8 | Makita 511768-8 ARMATURE ASS'Y 220V |
| 23 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 24 | 211026-9 | Makita 211026-9 BALL BEARING 627LLB |
| 25 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 26 | 410923-8 | Makita 410923-8 BAFFLE PLATE |
| 27 | 639306-5 | Makita 639306-5 FIELD 220V |
| 28 | 911581-8 | Makita 911581-8 PAN HEAD SCREW M4X55 |
| 29 | 343407-0 | Makita 343407-0 HOOK |
| 30 | 851360-1 | Makita 851360-1 NAME PLATE 6822 |
| 31 | 157725-8 | Makita 157725-8 MOTOR HOUSING |
| 32 | 191950-1 | Makita 191950-1 CARBON BRUSH CB-415 |
| 33 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 34 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 35 | 651256-4 | DISC Makita 651256-4 Switch for 4014NV 4300BV |
| 36 | 411852-8 | Makita 411852-8 SWITCH COVER |
| 37 | 155928-8 | Makita 155928-8 HANDLE COVER |
| 38 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 39 | 651478-6 | Makita 651478-6 SWITCH VTX11 |
| 40 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 41 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 42 | 665399-6 | Makita 665399-6 POWER SUPPLY CORD 1.0-2-5 |
| 43 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
