Makita 6821
Makita 6821: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6821: 34 positions on 1 sheet

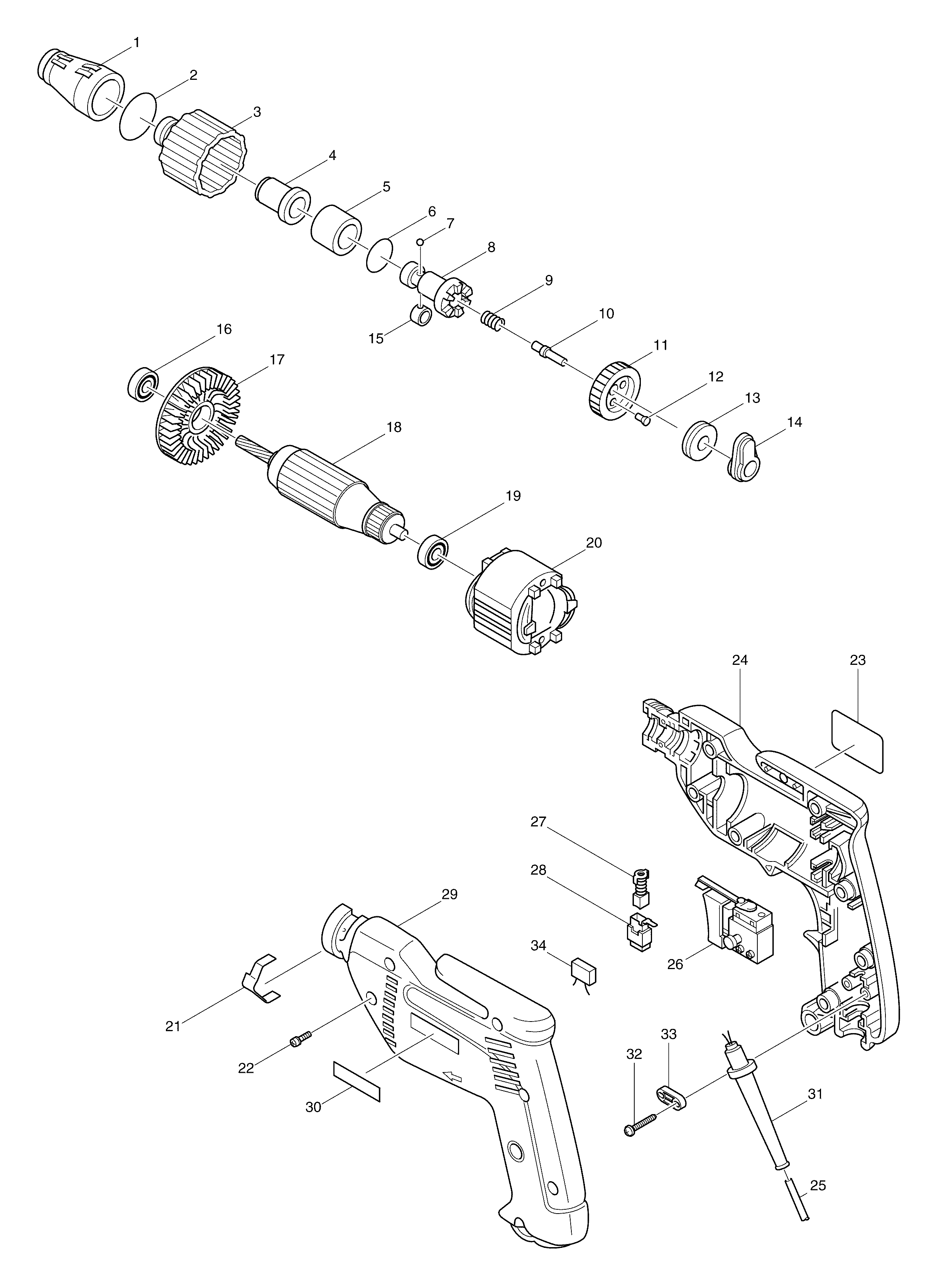

Sheet 1: Makita 6821 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 152483-1 | Makita 152483-1 Locator Complete for 6807 6821 |
| 2 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 3 | 415570-0 | Makita 415570-0 LOCK RING |
| 4 | 421519-0 | Makita 421519-0 DUST RING |
| 5 | 214154-9 | Makita 214154-9 PLANE BEARING 14 |
| 6 | 421392-8 | Makita 421392-8 RING 20 6820V |
| 7 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 8 | 223107-7 | Makita 223107-7 SPINDLE 6821 |
| 9 | 233126-5 | Makita 233126-5 COMPRESSION SPRING, 6824N |
| 10 | 256699-1 | Makita 256699-1 PIN 8 |
| 11 | 226444-8 | Makita 226444-8 HELICAL GEAR 46 6821 |
| 12 | 256439-7 | Makita 256439-7 PIN 4 FOR 6831DW |
| 13 | 212047-4 | Makita 212047-4 THRUST NEEDLE BEARING 821 |
| 14 | 152531-6 | Makita 152531-6 BEARING BOX COMPLETE 6821 |
| 15 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 16 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 17 | 241881-5 | Makita 241881-5 FAN 52, 6409 |
| 18 | 517153-3 | Makita 517153-3 ARMATURE ASS'Y 220V |
| 19 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 20 | 633323-7 | Makita 633323-7 FIELD 220V |
| 21 | 232147-4 | Makita 232147-4 LEAF SPRING 6821 |
| 22 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 23 | 858465-8 | Makita 858465-8 NAME PLATE 6821 |
| 24 | 182856-4 | Makita 182856-4 HOUSING SET |
| 25 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
| 26 | 651952-4 | Makita 651952-4 SWITCH 8653C721AD 200V-24 |
| 27 | 191962-4 | Old code CB-419 = CB-407 |
| 28 | 643923-5 | Makita 643923-5 BRUSH HOLDER 6.5-9.5, HR2410 |
| 29 | 182856-4 | Makita 182856-4 HOUSING SET |
| 30 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 31 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 32 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 33 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 34 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
