Makita 6820V: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6820V: 48 positions on 1 sheet

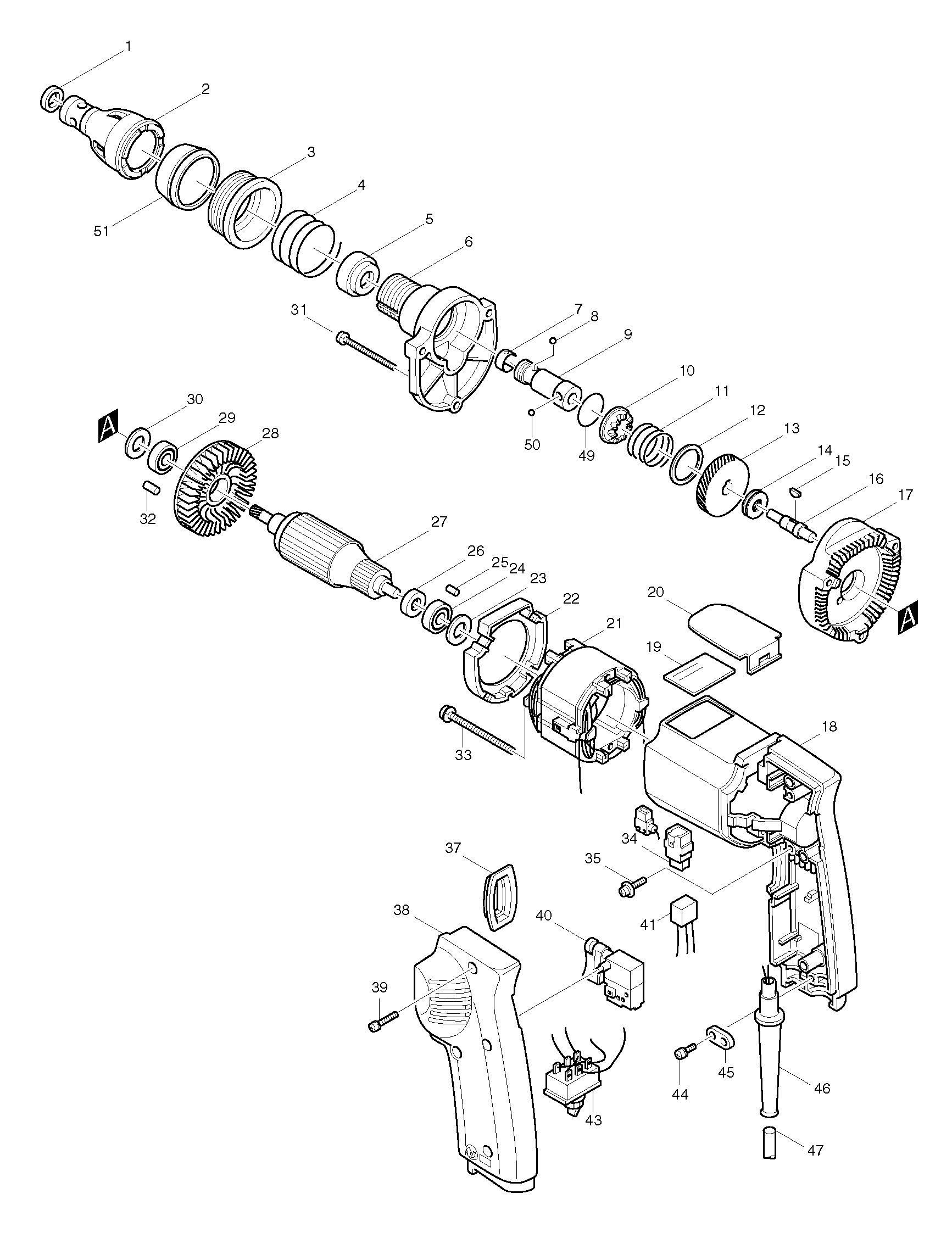

Sheet 1: Makita 6820V parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 261058-6 | Makita 261058-6 SPONGE WASHER 11 |
| 2 | 122450-0 | Makita 122450-0 LOCATOR ASS'Y |
| 3 | 415199-2 | Makita 415199-2 LOCK RING FOR |
| 4 | 231280-9 | Makita 231280-9 COMPRESSION SPRING 32 |
| 5 | 421315-6 | Makita 421315-6 FLINGER |
| 6 | 157727-4 | Makita 157727-4 GEAR HOUSING |
| 7 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 8 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 9 | 134436-2 | Makita 134436-2 SPINDLE |
| 10 | 223075-4 | Makita 223075-4 CLUTCH CAM 6820V |
| 11 | 231434-8 | Makita 231434-8 COMPRESSION SPRING 22 |
| 12 | 253341-5 | |
| 13 | 221753-0 | |
| 14 | 212057-1 | Makita 212057-1 THRUST NEEDLE BEARING 102 |
| 15 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 16 | 322142-3 | Makita 322142-3 GEAR SHAFT |
| 17 | 157726-6 | |
| 18 | 157725-8 | Makita 157725-8 MOTOR HOUSING |
| 19 | 855890-4 | Makita 855890-4 NAME PLATE 6820V |
| 20 | 343407-0 | Makita 343407-0 HOOK |
| 21 | 639306-5 | Makita 639306-5 FIELD 220V |
| 22 | 410923-8 | Makita 410923-8 BAFFLE PLATE |
| 23 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 24 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 25 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 26 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 27 | 511768-8 | Makita 511768-8 ARMATURE ASS'Y 220V |
| 28 | 241881-5 | Makita 241881-5 FAN 52, 6409 |
| 29 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 30 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 31 | 911173-3 | Makita 911173-3 PAN HEAD SCREW M4X45 |
| 32 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 33 | 911581-8 | Makita 911581-8 PAN HEAD SCREW M4X55 |
| 34 | 191950-1 | Makita 191950-1 CARBON BRUSH CB-415 |
| 35 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 37 | 411852-8 | Makita 411852-8 SWITCH COVER |
| 38 | 155928-8 | Makita 155928-8 HANDLE COVER |
| 39 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 40 | 651256-4 | DISC Makita 651256-4 Switch for 4014NV 4300BV |
| 41 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 43 | 651478-6 | Makita 651478-6 SWITCH VTX11 |
| 44 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 45 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 46 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 47 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 49 | 213008-7 | Makita 213008-7 O RING 22.4 |
| 50 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 51 | 421445-3 | Makita 421445-3 LOCATOR COVER FOR |
