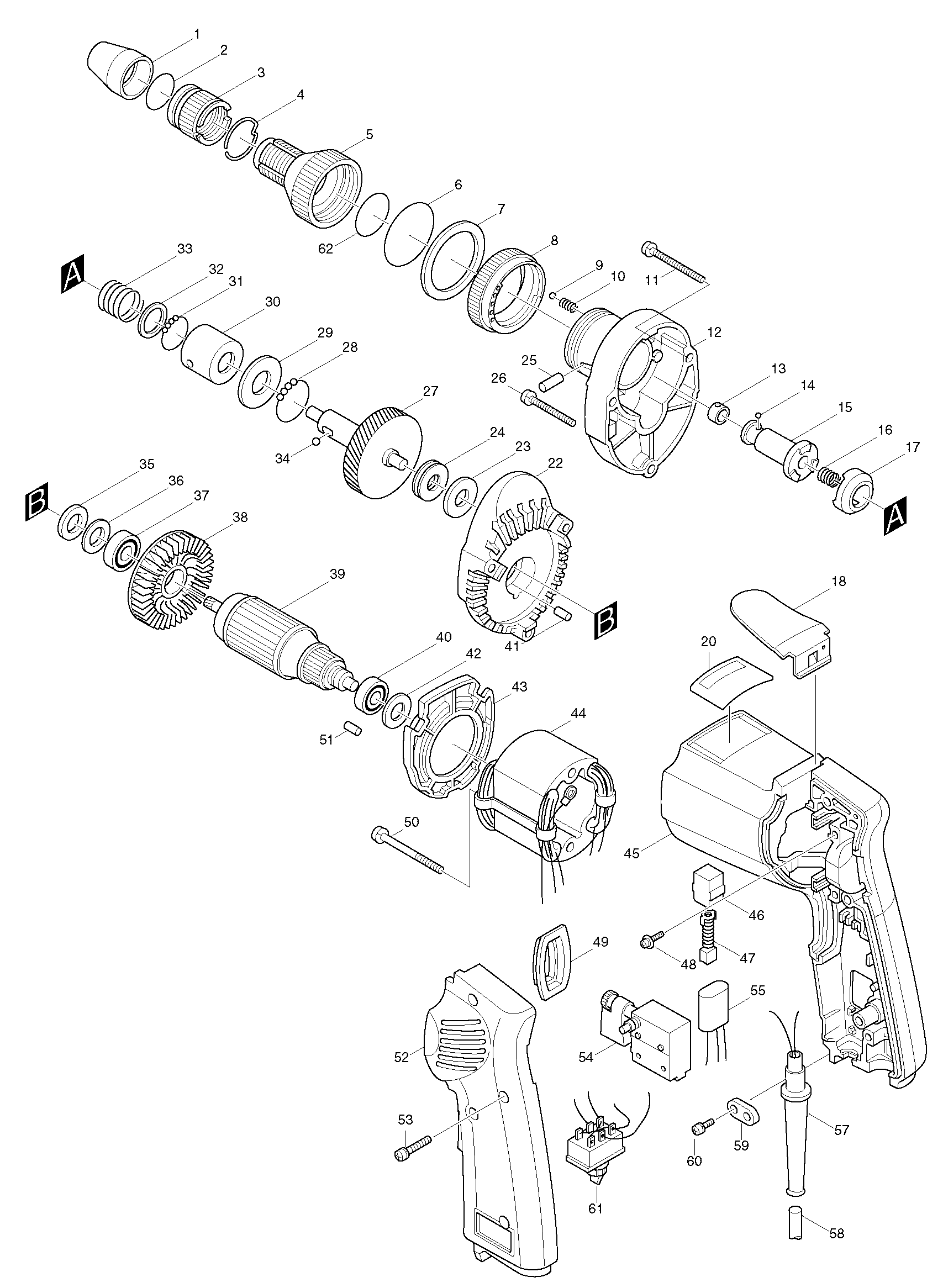

Sheet 1: Makita 6805BV parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 322120-3 | Makita 322120-3 FRONT CAP, 6827 |
| 2 | 213310-8 | Makita 213310-8 O-RING 20 6805BV |
| 3 | 322073-6 | Makita 322073-6 LOCATOR, 6827 |
| 4 | 231940-3 | Makita 231940-3 RING SPRING 22 |
| 5 | 322188-9 | Makita 322188-9 CLUTCH COVER |
| 6 | 213458-6 | Makita 213458-6 O RING 34 |
| 7 | 253806-7 | Makita 253806-7 FLAT WASHER 36, 6826 |
| 8 | 155923-8 | Makita 155923-8 RING 36 COMPLETE |
| 9 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 10 | 231314-8 | Makita 231314-8 COMPRESSION SPRING 4 |
| 11 | 911271-3 | Makita 911271-3 PAN HEAD SCREW M5X50 |
| 12 | 315996-5 | Makita 315996-5 GEAR HOUSING |
| 13 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 14 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 15 | 134461-3 | Makita 134461-3 SPINDLE COMPLETE, 6827 |
| 16 | 231278-6 | Makita 231278-6 COMPRESSION SPRING 6, 6827 |
| 17 | 223073-8 | Makita 223073-8 CLUTCH CAM, 6827 |
| 18 | 343693-3 | Makita 343693-3 HOOK |
| 20 | 855887-3 | Makita 855887-3 NAME PLATE 6805BV |
| 22 | 157842-4 | |
| 23 | 261038-2 | |
| 24 | 212057-1 | Makita 212057-1 THRUST NEEDLE BEARING 102 |
| 25 | 256173-9 | Makita 256173-9 PIN 3.5 |
| 26 | 911261-6 | Makita 911261-6 PAN HEAD SCREW M5X40 |
| 27 | 153167-4 | Makita 153167-4 GEAR COMPLETE |
| 28 | 216014-1 | Makita 216014-1 STEEL BALL 3.2 |
| 29 | 267035-6 | Makita 267035-6 FLAT WASHER 14 |
| 30 | 322072-8 | Makita 322072-8 SLEEVE |
| 31 | 216014-1 | Makita 216014-1 STEEL BALL 3.2 |
| 32 | 253837-6 | Makita 253837-6 FLAT WASHER 14, 6826 |
| 33 | 231423-3 | Makita 231423-3 COMPRESSION SPRING 13.6, 6827 |
| 34 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 35 | 261039-0 | Makita 261039-0 URETHANE WASHER 14 |
| 36 | 253786-7 | Makita 253786-7 FLAT WASHER 14 |
| 37 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 38 | 241881-5 | Makita 241881-5 FAN 52, 6409 |
| 39 | 515158-7 | Makita 515158-7 ARMATURE ASSY FOR |
| 40 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 41 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 42 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 43 | 413045-3 | |
| 44 | 628171-7 | Makita 628171-7 FIELD DP4700 |
| 45 | 156879-8 | Makita 156879-8 MOTOR HOUSING |
| 46 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 47 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 48 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 49 | 411852-8 | Makita 411852-8 SWITCH COVER |
| 50 | 911185-6 | Makita 911185-6 PAN HEAD SCREW M4X55 |
| 51 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 52 | 155283-8 | Makita 155283-8 HANDLE COVER COMPLETE |
| 53 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 54 | 651247-5 | Makita 651247-5 SWITCH 11-12 |
| 55 | 645173-8 | Makita 645173-8 CAPACITOR, JR3000V |
| 57 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 58 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 59 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 60 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 61 | 651478-6 | Makita 651478-6 SWITCH VTX11 |
| 62 | 213380-7 | Makita 213380-7 O-RING 24 HR2450 |
