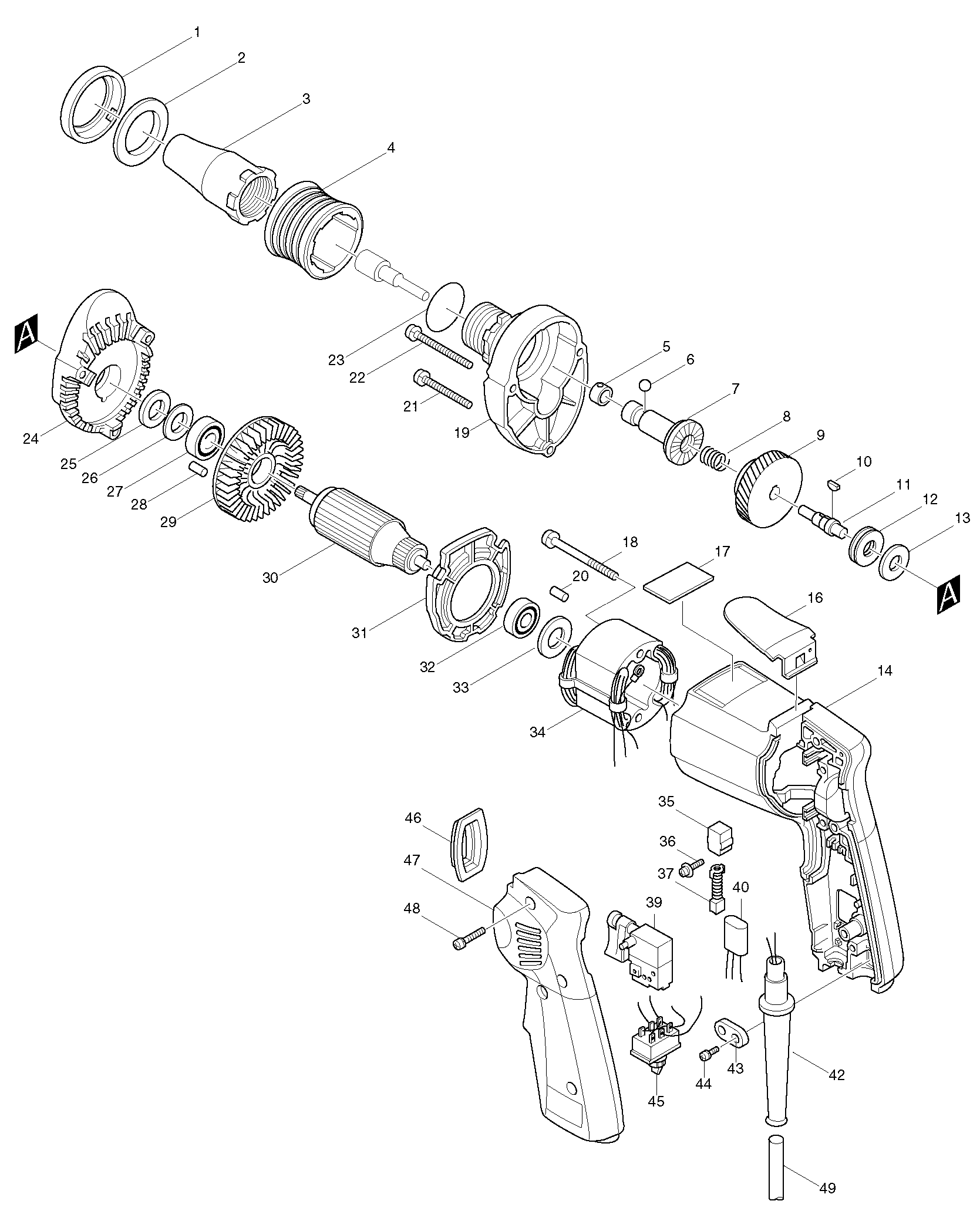

Sheet 1: Makita 6802BV parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 411297-0 | Makita 411297-0 FELT COVER |
| 2 | 443028-9 | Makita 443028-9 FELT RING 30 |
| 3 | 152279-0 | Makita 152279-0 LOCATOR 5/16" |
| 4 | 411293-8 | Makita 411293-8 LOCKING SLEEVE |
| 5 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 6 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 7 | 133459-7 | Makita 133459-7 SPINDLE |
| 8 | 231139-0 | Makita 231139-0 COMPRESSION SPRING 9, N5900B |
| 9 | 153133-1 | Makita 153133-1 GEAR COMPLETE |
| 10 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 11 | 325485-2 | Makita 325485-2 GEAR SHAFT |
| 12 | 212057-1 | Makita 212057-1 THRUST NEEDLE BEARING 102 |
| 13 | 261038-2 | |
| 14 | 156879-8 | Makita 156879-8 MOTOR HOUSING |
| 16 | 343693-3 | Makita 343693-3 HOOK |
| 17 | 815289-5 | Makita 815289-5 NAME PLATE 6802BV |
| 18 | 911185-6 | Makita 911185-6 PAN HEAD SCREW M4X55 |
| 19 | 156467-1 | Makita 156467-1 GEAR HOUSING |
| 20 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 21 | 911261-6 | Makita 911261-6 PAN HEAD SCREW M5X40 |
| 22 | 911271-3 | Makita 911271-3 PAN HEAD SCREW M5X50 |
| 23 | 213363-7 | Makita 213363-7 O-RENGAS |
| 24 | 157842-4 | |
| 25 | 261039-0 | Makita 261039-0 URETHANE WASHER 14 |
| 26 | 253786-7 | Makita 253786-7 FLAT WASHER 14 |
| 27 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 28 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 29 | 241881-5 | Makita 241881-5 FAN 52, 6409 |
| 30 | 515158-7 | Makita 515158-7 ARMATURE ASSY FOR |
| 31 | 413045-3 | |
| 32 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 33 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 34 | 628171-7 | Makita 628171-7 FIELD DP4700 |
| 35 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 36 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 37 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 39 | 651247-5 | Makita 651247-5 SWITCH 11-12 |
| 40 | 645173-8 | Makita 645173-8 CAPACITOR, JR3000V |
| 42 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 43 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 44 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 45 | 651478-6 | Makita 651478-6 SWITCH VTX11 |
| 46 | 411852-8 | Makita 411852-8 SWITCH COVER |
| 47 | 155283-8 | Makita 155283-8 HANDLE COVER COMPLETE |
| 48 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 49 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
