Makita 6797D: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6797D: 58 positions on 1 sheet

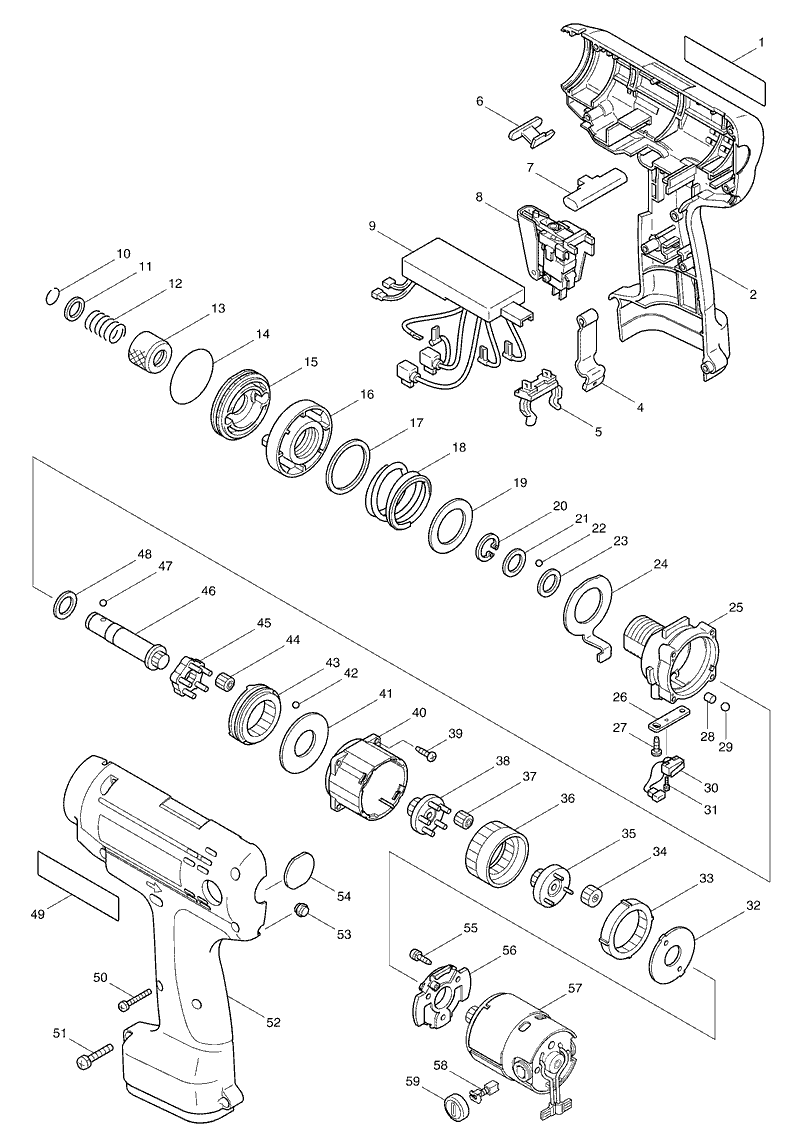

Sheet 1: Makita 6797D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 852962-6 | |
| 2 | 183321-6 | Makita 183321-6 HOUSING SET |
| 4 | 344798-2 | Makita 344798-2 Support Battery Plate for 6794DW |
| 5 | 643918-8 | Makita 643918-8 BATTERY HOLDER *, 6390D |
| 6 | 413088-5 | Makita 413088-5 INNER PLATE |
| 7 | 417511-2 | Makita 417511-2 F/R CHANGE LEVER |
| 8 | 651999-8 | Makita 651999-8 SWITCH C3Z-5 |
| 9 | 631437-6 | Makita 631437-6 Controller |
| 10 | 231965-7 | Makita 231965-7 RING SPRING 10, TD090D |
| 11 | 267143-3 | Makita 267143-3 WASHER 11, TD020D |
| 12 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 13 | 162218-2 | Makita 162218-2 SLEEVE |
| 14 | 213510-0 | Makita 213510-0 O-RING 36, BO4555 |
| 15 | 417510-4 | Makita 417510-4 FRONT COVER |
| 16 | 417619-2 | Makita 417619-2 SPRING HOLDER |
| 17 | 253356-2 | Makita 253356-2 THIN WASHER 30 |
| 18 | 233312-8 | Makita 233312-8 COMPRESSION SPRING 30 |
| 19 | 253355-4 | Makita 253355-4 THIN WASHER 24 |
| 20 | 961072-9 | Makita 961072-9 RETAINING RING (EXT) S-12, TD020D |
| 21 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 22 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 23 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 24 | 344969-1 | Makita 344969-1 TORQUE-UP PLATE |
| 25 | 152835-6 | Makita 152835-6 GEAR CASE COMPLETE |
| 26 | 344968-3 | Makita 344968-3 HOLDER PLATE |
| 27 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 28 | 268068-4 | Makita 268068-4 PIN 5, LF1000 |
| 29 | 216018-3 | Makita 216018-3 STEEL BALL 5.0, HR2450FT |
| 30 | 638064-0 | Makita 638064-0 SWITCH PCE |
| 31 | 265087-1 | Makita 265087-1 PAN HEAD SCREW M2.3X10 |
| 32 | 267738-2 | Makita 267738-2 LOCK WASHER |
| 33 | 226352-3 | Makita 226352-3 INTERNAL GEAR 49 |
| 34 | 226351-5 | Makita 226351-5 SPUR GEAR 17 |
| 35 | 152833-0 | Makita 152833-0 SPUR GEAR 15 COMPLETE |
| 36 | 227015-4 | Makita 227015-4 INTERNAL GEAR 35 |
| 37 | 226311-7 | Makita 226311-7 SPUR GEAR 10 |
| 38 | 152834-8 | Makita 152834-8 SPUR GEAR 15 COMPLETE |
| 39 | 265893-4 | Makita 265893-4 TAPPING SCREW BT 3*12, LH1040F |
| 40 | 416588-4 | Makita 416588-4 GEAR CASE A |
| 41 | 267225-1 | Makita 267225-1 FLAT WASHER 18 |
| 42 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 43 | 227014-6 | Makita 227014-6 INTERNAL GEAR 35 |
| 44 | 226311-7 | Makita 226311-7 SPUR GEAR 10 |
| 45 | 152526-9 | Makita 152526-9 CARRIER COMPLETE |
| 46 | 324136-4 | Makita 324136-4 SPINDLE M |
| 47 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 48 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 49 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 50 | 911038-9 | Makita 911038-9 PAN HEAD SCREW M3X20 |
| 51 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 52 | 183321-6 | Makita 183321-6 HOUSING SET |
| 53 | 416764-0 | Makita 416764-0 LENZ |
| 54 | 345171-9 | Makita 345171-9 PLATE |
| 55 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 56 | 416587-6 | Makita 416587-6 MOTOR BRACKET |
| 57 | 629765-1 | Makita 629765-1 DC MOTOR |
| 58 | 191966-6 | Makita 191966-6 Carbon Brushes CB-424 |
| 59 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
