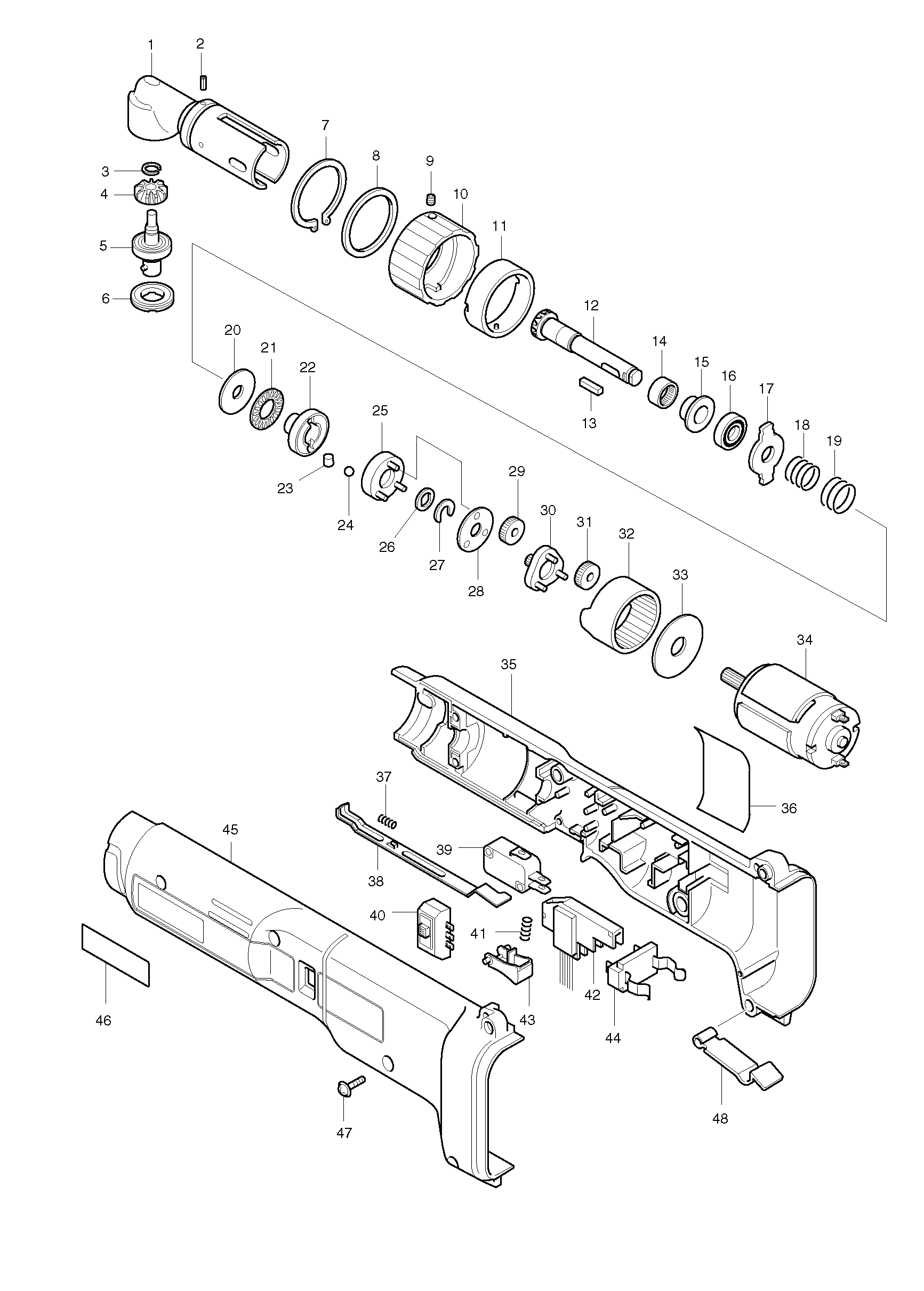

Sheet 1: Makita 6706D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 152558-6 | |
| 2 | 258002-2 | Makita 258002-2 SPRING PIN 3*6, MT430 |
| 3 | 961023-2 | Makita 961023-2 RETAINING RING S-7 |
| 4 | 221391-8 | Makita 221391-8 ZEROL BEVEL GEAR 14 |
| 5 | 152400-1 | Makita 152400-1 SPINDLE COMPLETE |
| 6 | 285671-6 | |
| 7 | 961172-5 | |
| 8 | 267093-2 | |
| 9 | 266025-6 | Makita 266025-6 SCREW M4X6 |
| 10 | 415444-5 | Makita 415444-5 CHANGE RING 6704D |
| 11 | 152406-9 | |
| 12 | 221390-0 | Makita 221390-0 ZEROL BEVEL GEAR 13 |
| 13 | 254235-7 | Makita 254235-7 KEY 4 |
| 14 | 212104-8 | Makita 212104-8 NEEDLE BEARING 1212 |
| 15 | 343798-9 | |
| 16 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 17 | 343897-7 | Makita 343897-7 SLIDE PLATE |
| 18 | 233026-9 | Makita 233026-9 COMPRESSION SPRING 15 |
| 19 | 233027-7 | Makita 233027-7 COMPRESSION SPRING 20 |
| 20 | 267024-1 | |
| 21 | 216402-2 | Makita 216402-2 THRUST NEEDLE CAGE 1224, HR2412 |
| 22 | 322493-4 | Makita 322493-4 RETAINER |
| 23 | 256217-5 | Makita 256217-5 PIN 4 |
| 24 | 216013-3 | Makita 216013-3 STEEL BALL 6.0, HR245FT |
| 25 | 152399-0 | Makita 152399-0 HOLDER COMPLETE |
| 26 | 253998-2 | Makita 253998-2 LOCK WASHER 10 |
| 27 | 343945-2 | Makita 343945-2 (U) PLATE |
| 28 | 343896-9 | |
| 29 | 226204-8 | Makita 226204-8 SPUR GEAR 28 |
| 30 | 153196-7 | Makita 153196-7 SPUR GEAR 11 COMPLETE |
| 31 | 226204-8 | Makita 226204-8 SPUR GEAR 28 |
| 32 | 226205-6 | Makita 226205-6 INTERNAL GEAR 67 |
| 33 | 267067-3 | Makita 267067-3 FLAT WASHER 12 |
| 34 | 629624-9 | Makita 629624-9 DC MOTOR 9.6V 6702D |
| 35 | 183057-7 | Makita 183057-7 HOUSING SET FOR |
| 36 | 851626-9 | |
| 37 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 38 | 343898-5 | Makita 343898-5 LEVER |
| 39 | 651942-7 | Makita 651942-7 SWITCH V15-1A6-IN |
| 40 | 651889-5 | Makita 651889-5 SWITCH C3BC-B |
| 41 | 233024-3 | Makita 233024-3 COMPRESSION SPRING 4 |
| 42 | 631283-7 | Makita 631283-7 CONTROL CIRCUIT |
| 43 | 414752-1 | Makita 414752-1 SWITCH LEVER FOR |
| 44 | 643909-9 | Makita 643909-9 BATTERY HOLDER *, 6222D |
| 45 | 183057-7 | Makita 183057-7 HOUSING SET FOR |
| 46 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 47 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 48 | 344798-2 | Makita 344798-2 Support Battery Plate for 6794DW |
