All parts of Makita 6703D: 54 positions on 1 sheet

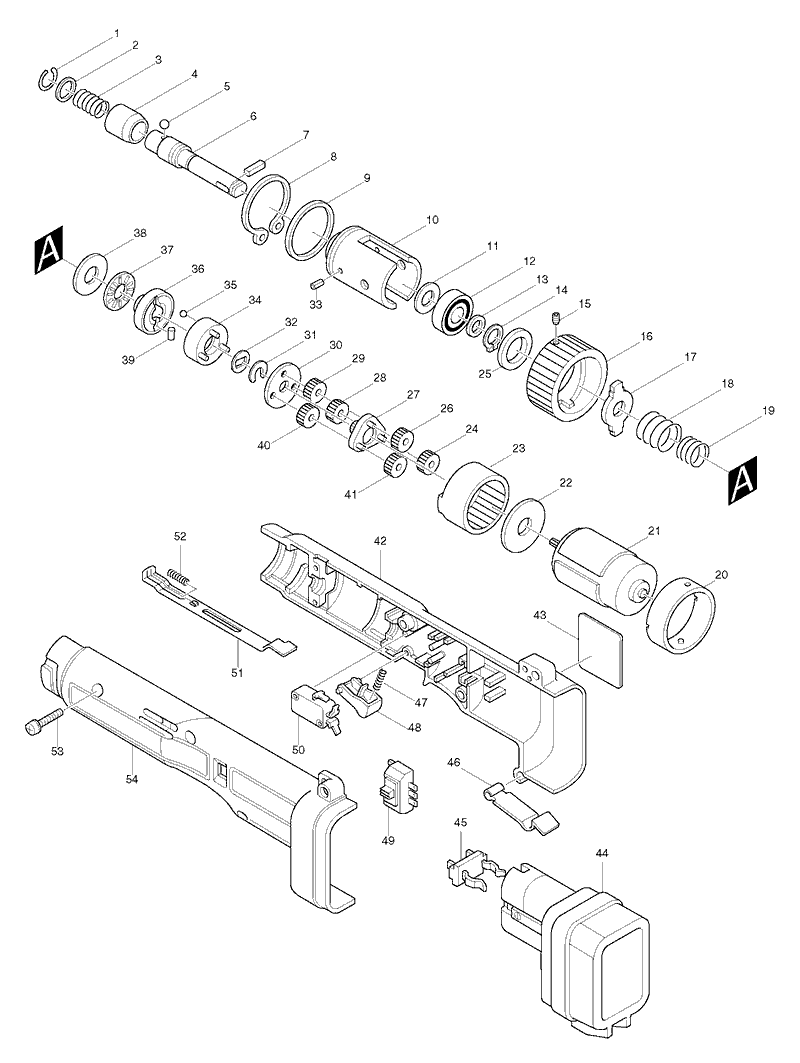

Sheet 1: Makita 6703D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 2 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 3 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 4 | 322434-0 | Makita 322434-0 SLEEVE |
| 5 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 6 | 322681-3 | Makita 322681-3 SPINDLE |
| 7 | 254235-7 | Makita 254235-7 KEY 4 |
| 8 | 961172-5 | |
| 9 | 267093-2 | |
| 10 | 322680-5 | Makita 322680-5 HEAD |
| 11 | 253171-4 | Makita 253171-4 FLAT WASHER 10, HR2810 |
| 12 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 13 | 267047-9 | Makita 267047-9 FLAT WASHER 10, RP0900 |
| 14 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 15 | 266025-6 | Makita 266025-6 SCREW M4X6 |
| 16 | 415444-5 | Makita 415444-5 CHANGE RING 6704D |
| 17 | 343897-7 | Makita 343897-7 SLIDE PLATE |
| 18 | 233094-2 | Makita 233094-2 COMPRESSION SPRING 18 |
| 19 | 233093-4 | Makita 233093-4 COMPRESSION SPRING 13 |
| 20 | 152406-9 | |
| 21 | 629624-9 | Makita 629624-9 DC MOTOR 9.6V 6702D |
| 22 | 267067-3 | Makita 267067-3 FLAT WASHER 12 |
| 23 | 226205-6 | Makita 226205-6 INTERNAL GEAR 67 |
| 24 | 226204-8 | Makita 226204-8 SPUR GEAR 28 |
| 25 | 257101-7 | |
| 26 | 226204-8 | Makita 226204-8 SPUR GEAR 28 |
| 27 | 153196-7 | Makita 153196-7 SPUR GEAR 11 COMPLETE |
| 28 | 226204-8 | Makita 226204-8 SPUR GEAR 28 |
| 29 | 226204-8 | Makita 226204-8 SPUR GEAR 28 |
| 30 | 343896-9 | |
| 31 | 343945-2 | Makita 343945-2 (U) PLATE |
| 32 | 253998-2 | Makita 253998-2 LOCK WASHER 10 |
| 33 | 258002-2 | Makita 258002-2 SPRING PIN 3*6, MT430 |
| 34 | 152399-0 | Makita 152399-0 HOLDER COMPLETE |
| 35 | 216013-3 | Makita 216013-3 STEEL BALL 6.0, HR245FT |
| 36 | 322493-4 | Makita 322493-4 RETAINER |
| 37 | 216402-2 | Makita 216402-2 THRUST NEEDLE CAGE 1224, HR2412 |
| 38 | 267024-1 | |
| 39 | 256217-5 | Makita 256217-5 PIN 4 |
| 40 | 226204-8 | Makita 226204-8 SPUR GEAR 28 |
| 41 | 226204-8 | Makita 226204-8 SPUR GEAR 28 |
| 42 | 182441-3 | Makita 182441-3 HOUSING SET |
| 43 | 857482-5 | Makita 857482-5 NAME PLATE 6703D |
| 44 | 192019-4 | |
| 45 | 643909-9 | Makita 643909-9 BATTERY HOLDER *, 6222D |
| 46 | 343579-1 | |
| 47 | 233024-3 | Makita 233024-3 COMPRESSION SPRING 4 |
| 48 | 414752-1 | Makita 414752-1 SWITCH LEVER FOR |
| 49 | 651872-2 | Makita 651872-2 SWITCH |
| 50 | 651900-3 | Makita 651900-3 SWITCH V-15-1A6 |
| 51 | 343898-5 | Makita 343898-5 LEVER |
| 52 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 53 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 54 | 182441-3 | Makita 182441-3 HOUSING SET |
