Makita 6510PB
Makita 6510PB: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6510PB: 35 positions on 1 sheet

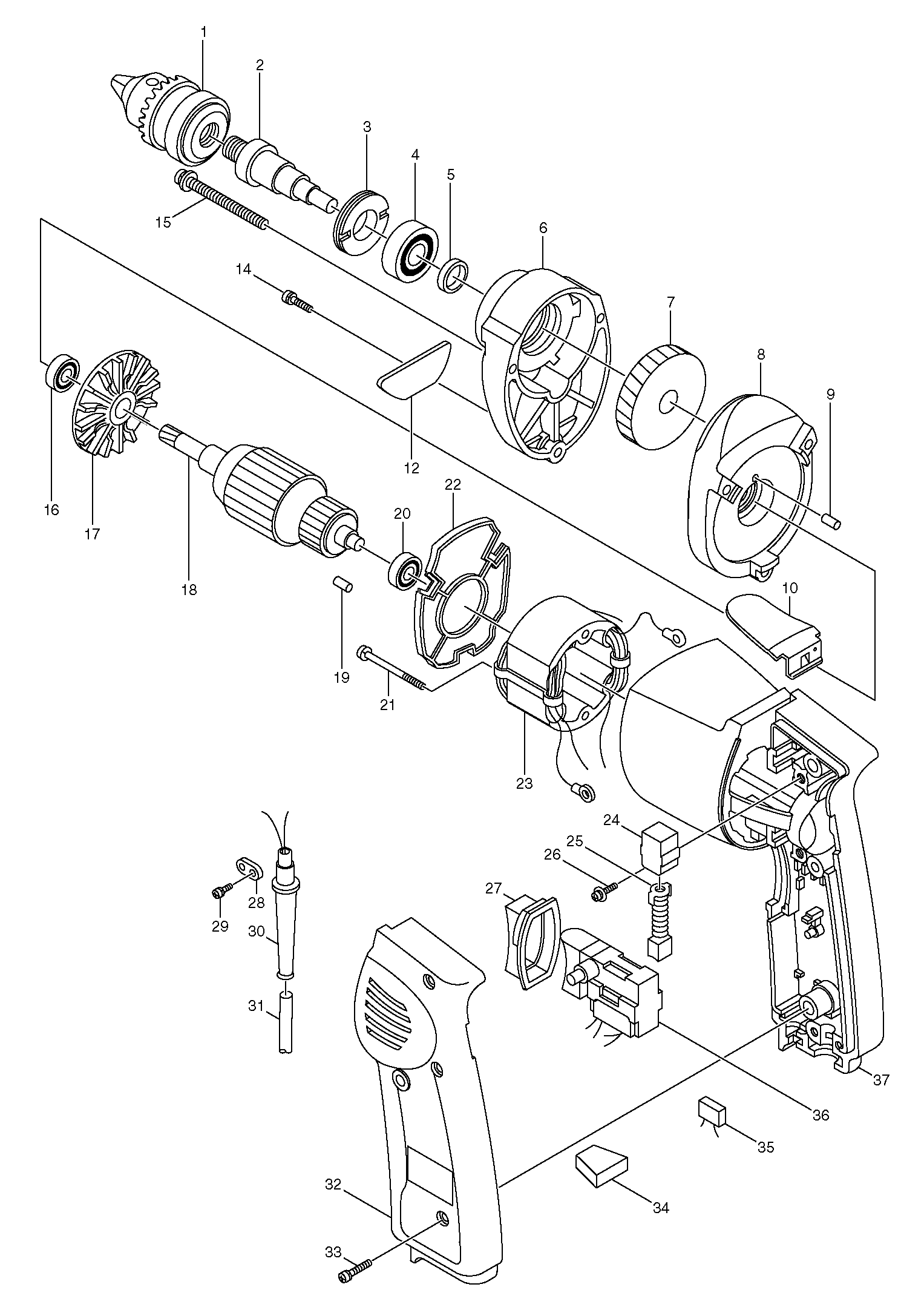

Sheet 1: Makita 6510PB parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 192879-4 | |
| 2 | 323686-6 | Makita 323686-6 SPINDLE |
| 3 | 285804-3 | Makita 285804-3 BEARING RETAINER 19-34 |
| 4 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 5 | 257053-2 | Makita 257053-2 RING 15 |
| 6 | 411355-2 | Makita 411355-2 GEAR HOUSING |
| 7 | 221621-7 | Makita 221621-7 HELICAL GEAR 63 |
| 8 | 156372-2 | Makita 156372-2 GEAR HOUSING COVER |
| 9 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 10 | 343693-3 | Makita 343693-3 HOOK |
| 12 | 815380-9 | Makita 815380-9 NAME PLATE 6510PB |
| 14 | 911168-6 | Makita 911168-6 PAN HEAD SCREW M4X40 |
| 15 | 911178-3 | Makita 911178-3 PAN HEAD SCREW M4X50 |
| 16 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 17 | 241802-7 | |
| 18 | 511324-4 | Makita 511324-4 ARMATURE ASS Y 220V |
| 19 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 20 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 21 | 911175-9 | Makita 911175-9 PAN HEAD SCREW M4X45 |
| 22 | 410326-6 | Makita 410326-6 BAFFLE PLATE |
| 23 | 521265-6 | Makita 521265-6 FIELD ASS Y 220V |
| 24 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 25 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 26 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 27 | 421144-7 | |
| 28 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 29 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 30 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 31 | 666066-6 | Makita 666066-6 POWER S.CORD HD-21 CORD, 9557PB |
| 32 | 411562-7 | Makita 411562-7 HANDLE COVER |
| 33 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 34 | 421161-7 | Makita 421161-7 RUBBER PLATE |
| 35 | 645206-9 | Makita 645206-9 NOISE SUPPRESSOR LF1000 |
| 36 | 651319-6 | Makita 651319-6 SWITCH 8316K-2 |
| 37 | 156981-7 | Makita 156981-7 MOTOR HOUSING |
