Makita 6503D
Makita 6503D: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6503D: 27 positions on 1 sheet

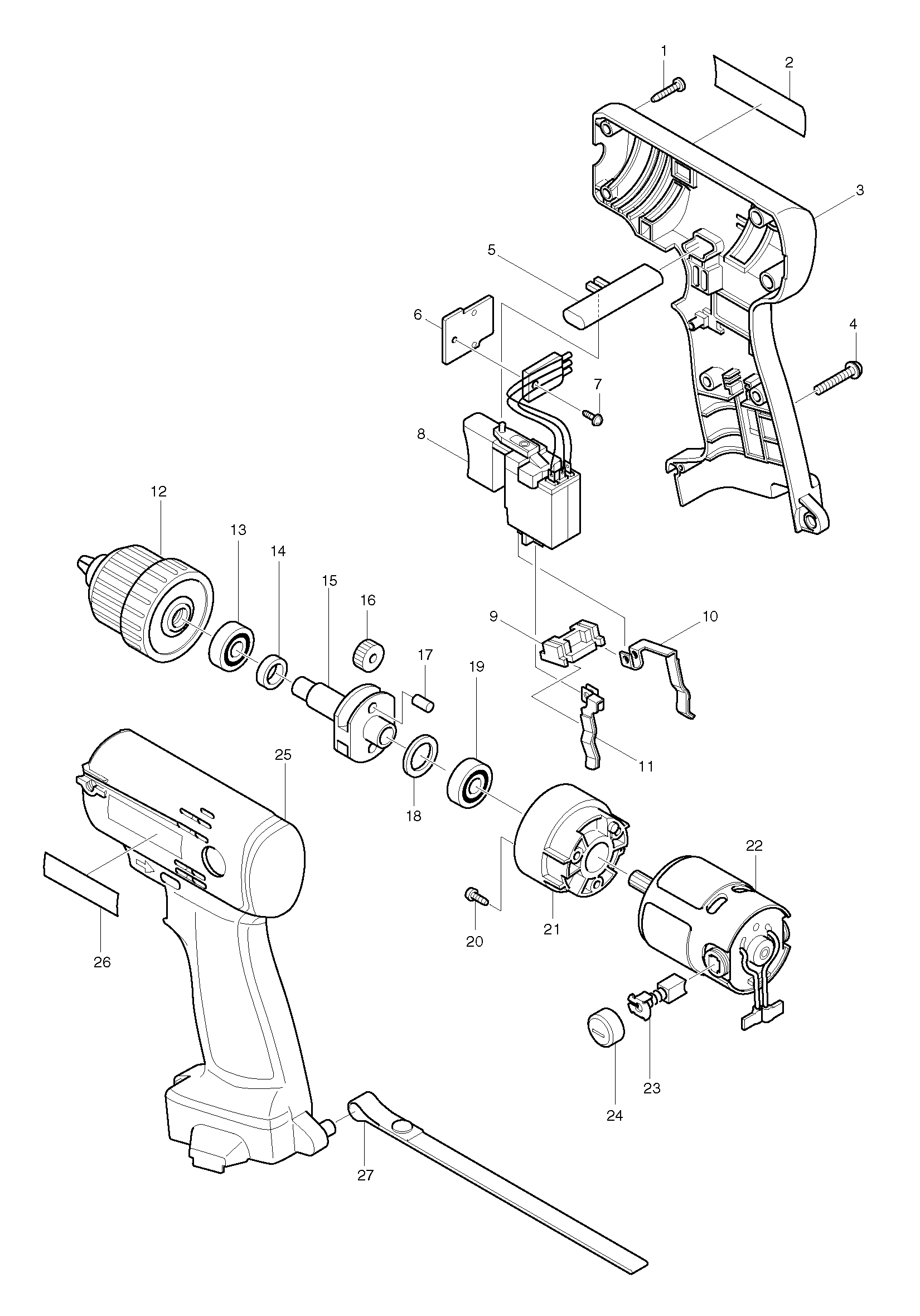

Sheet 1: Makita 6503D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 852299-1 | Makita 852299-1 NAME PLATE 6503D |
| 3 | 183246-4 | Makita 183246-4 HOUSING SET |
| 4 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 5 | 417283-9 | Makita 417283-9 F/R Change Lever for 6260D |
| 6 | 689098-6 | Makita 689098-6 HEAT SINK |
| 7 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 8 | 651993-0 | Makita 651993-0 SWITCH |
| 9 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 10 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 11 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 12 | 193211-5 | Makita 193211-5 Keyless Chuck 6,5mm, 3/8"-24UNF 0,8-6,5mm 6503D |
| 13 | 211101-1 | Makita 211101-1 BEARING 6001LLB, JR3060T |
| 14 | 262090-3 | Makita 262090-3 RING 12 |
| 15 | 324048-1 | Makita 324048-1 SPINDLE |
| 16 | 226336-1 | Makita 226336-1 SPUR GEAR 22, 6935FD |
| 17 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 18 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 19 | 211101-1 | Makita 211101-1 BEARING 6001LLB, JR3060T |
| 20 | 911013-5 | Makita 911013-5 PAN HEAD SCREW M3X10, DF456D |
| 21 | 417284-7 | Makita 417284-7 INTERNAL GEAR CASE |
| 22 | 629757-0 | Makita 629757-0 DC MOTOR |
| 23 | 191966-6 | Makita 191966-6 Carbon Brushes CB-424 |
| 24 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 25 | 183246-4 | Makita 183246-4 HOUSING SET |
| 26 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 27 |
