Makita 6501X
Makita 6501X: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6501X: 21 positions on 1 sheet

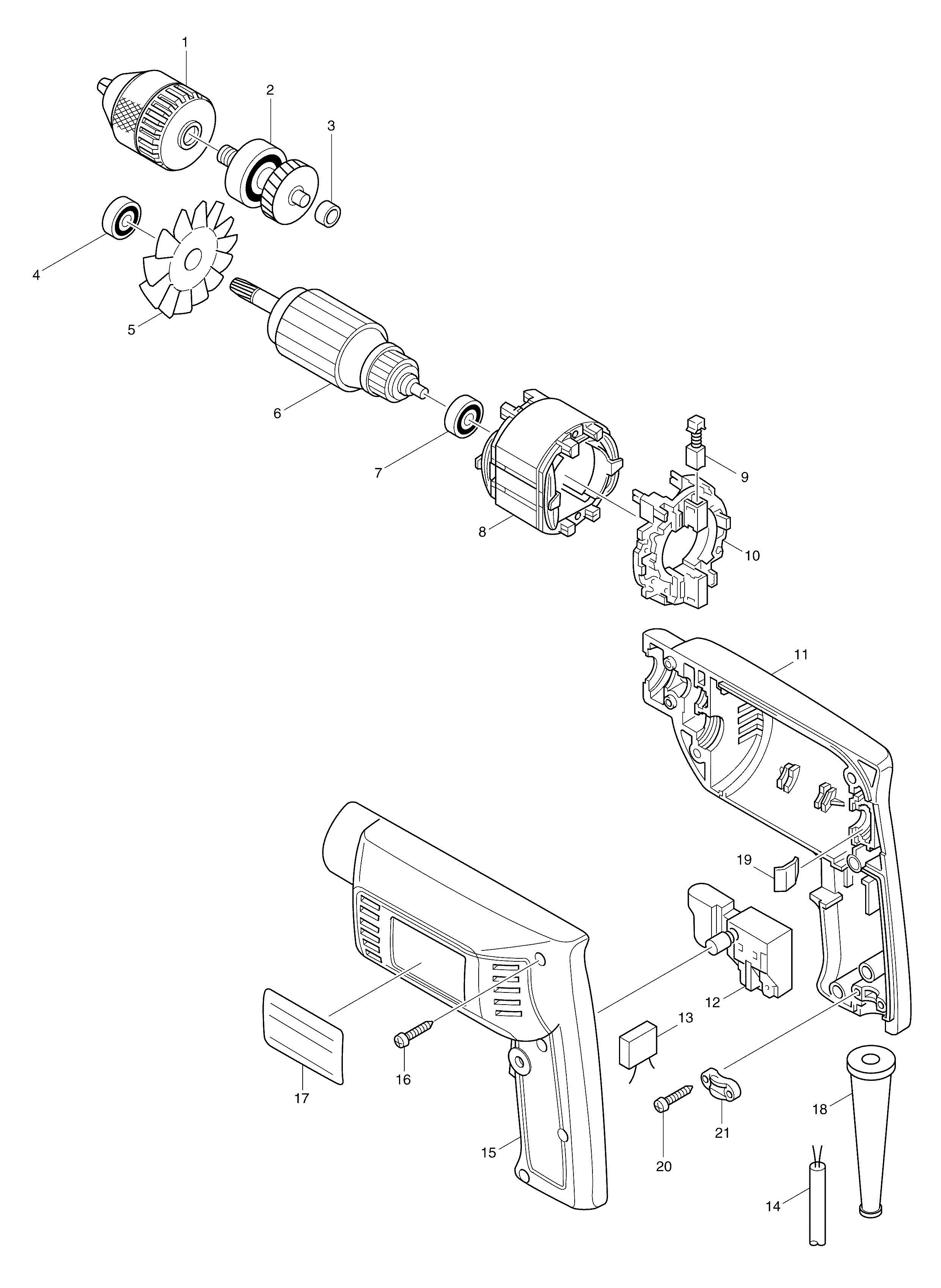

Sheet 1: Makita 6501X parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 193203-4 | Makita 193203-4 Keyless Chuck 6,5mm, 3/8"-24UNF 0,8-6,5mm 6501X |
| 2 | 153178-9 | Makita 153178-9 GEAR COMPLETE |
| 3 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 4 | 211018-8 | Makita 211018-8 BALL BEARING 626LB |
| 5 | 241508-7 | Makita 241508-7 FAN 52 |
| 6 | 517033-3 | Makita 517033-3 ARMATURE ASS'Y 220V |
| 7 | 211018-8 | Makita 211018-8 BALL BEARING 626LB |
| 8 | 633033-6 | Makita 633033-6 FIELD 220V |
| 9 | 191914-5 | Makita 191914-5 CB-70 Carbon Brushes |
| 10 | 632073-1 | |
| 11 | 183067-4 | |
| 12 | 651232-8 | Makita 651232-8 Switch SGEL206C 900B GV500 9031 1911B 63004 |
| 13 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 14 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
| 15 | 183067-4 | |
| 16 | 265874-8 | |
| 17 | 852664-4 | |
| 18 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 19 | 232100-0 | Makita 232100-0 LEAF SPRING |
| 20 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 21 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
