All parts of Makita 6402: 43 positions on 1 sheet

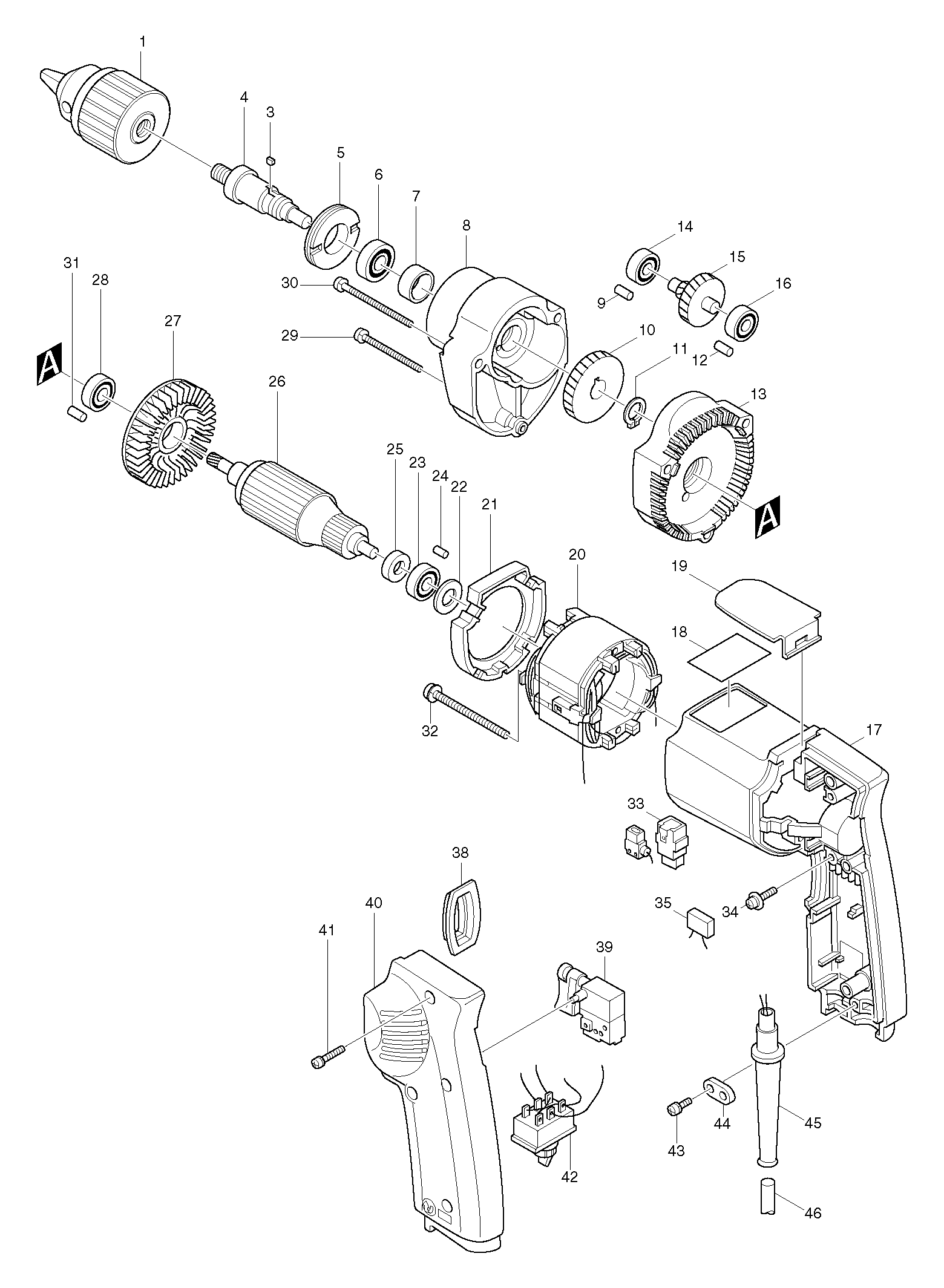

Sheet 1: Makita 6402 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 763132-1 | |
| 3 | 254011-9 | Makita 254011-9 WOOD RUFF KEY 4, GA7011C |
| 4 | 322301-9 | |
| 5 | 285804-3 | Makita 285804-3 BEARING RETAINER 19-34 |
| 6 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 7 | 257153-8 | Makita 257153-8 RING 15 |
| 8 | 157911-1 | |
| 9 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 10 | 221764-5 | Makita 221764-5 HELICAL GEAR 49 |
| 11 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 12 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 13 | 157912-9 | Makita 157912-9 GEAR HOUSING COVER |
| 14 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 15 | 226079-5 | Makita 226079-5 GEAR COMPLETE 11-34 |
| 16 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 17 | 157725-8 | Makita 157725-8 MOTOR HOUSING |
| 18 | 856138-7 | |
| 19 | 343407-0 | Makita 343407-0 HOOK |
| 20 | 633023-9 | Makita 633023-9 FIELD 220V |
| 21 | 410923-8 | Makita 410923-8 BAFFLE PLATE |
| 22 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 23 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 24 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 25 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 26 | 511768-8 | Makita 511768-8 ARMATURE ASS'Y 220V |
| 27 | 241881-5 | Makita 241881-5 FAN 52, 6409 |
| 28 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 29 | 911173-3 | Makita 911173-3 PAN HEAD SCREW M4X45 |
| 30 | 911183-0 | |
| 31 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 32 | 911581-8 | Makita 911581-8 PAN HEAD SCREW M4X55 |
| 33 | 191950-1 | Makita 191950-1 CARBON BRUSH CB-415 |
| 34 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 35 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 38 | 411852-8 | Makita 411852-8 SWITCH COVER |
| 39 | 651247-5 | Makita 651247-5 SWITCH 11-12 |
| 40 | 155928-8 | Makita 155928-8 HANDLE COVER |
| 41 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 42 | 651478-6 | Makita 651478-6 SWITCH VTX11 |
| 43 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 44 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 45 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 46 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
