All parts of Makita 6390D: 14 positions on 1 sheet

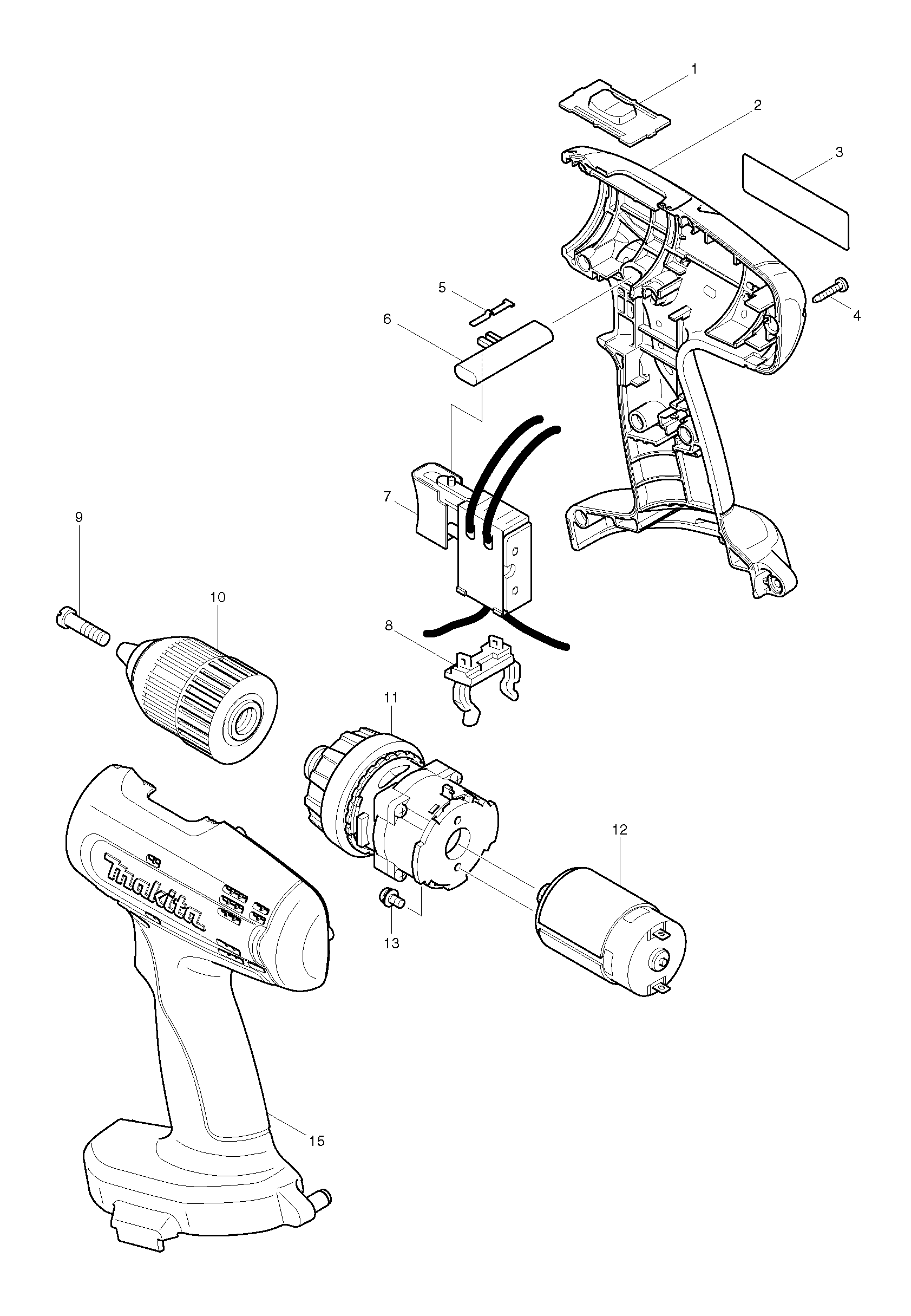

Sheet 1: Makita 6390D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 125102-2 | Makita 125102-2 SPEED CHANGE LEVER ASSEMBLY, 6260D |
| 2 | 183968-6 | Makita 183968-6 Housing Set for 6390D |
| 3 | 861353-0 | Makita 861353-0 NAME PLATE, 6390D |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 6 | 417283-9 | Makita 417283-9 F/R Change Lever for 6260D |
| 7 | 650566-6 | Makita 650566-6 Switch C3NA-2-M1 for 6390D 8390D |
| 8 | 643918-8 | Makita 643918-8 BATTERY HOLDER *, 6390D |
| 9 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 10 | 763178-7 | Makita 763178-7 Keyless Chuck 13mm 1/2" - 20 UNF for 6390D 8390D |
| 11 | 125275-1 | Makita 125275-1 Gear Assembly for 6390D |
| 12 | 629834-8 | Makita 629834-8 Motor 18V for 6390D BHP453 DHP453 BDF453 |
| 13 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 15 | 183968-6 | Makita 183968-6 Housing Set for 6390D |
