Makita 6349D
Makita 6349D: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6349D: 26 positions on 1 sheet

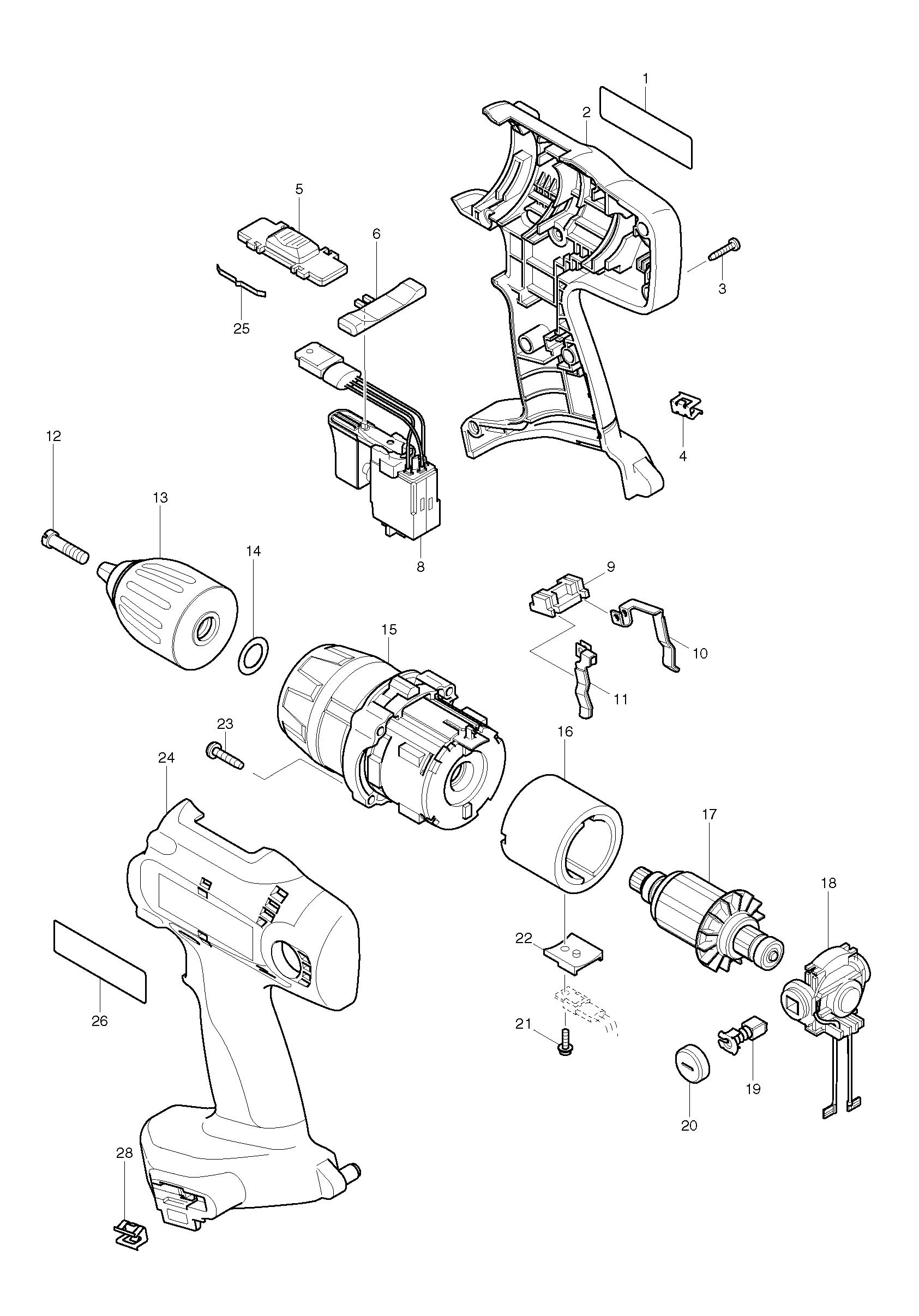

Sheet 1: Makita 6349D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 860955-9 | Makita 860955-9 NAME PLATE |
| 2 | 183872-9 | |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 344391-2 | Makita 344391-2 Bit Holder for BDF460 6333D 6336D |
| 5 | 125261-2 | Makita 125261-2 SPEED CHANGE LEVER |
| 6 | 418753-1 | Makita 418753-1 F/R Change Lever |
| 8 | 650559-3 | Makita 650559-3 Switch C3LA-2A-ED for 6391D 6339D 6349D 8414D 8434D 8444D |
| 9 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 10 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 11 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 12 | 251464-3 | Makita 251464-3 Flat Head Screw M6X22 for BDF440 BDF450 BHP440 BHP450 |
| 13 | 763188-4 | |
| 14 | 253798-0 | Makita 253798-0 FLAT WASHER13, HP451D |
| 15 | 125262-0 | Makita 125262-0 GEAR ASS'Y |
| 16 | 638376-1 | Makita 638376-1 YOKE UNIT, 6319D |
| 17 | 629831-4 | Makita 629831-4 Armature Rotor 18V for 6349D 8444D |
| 18 | 638375-3 | Makita 638375-3 Brush Holder 6339D 8434D 8444D 6319D 6349D 8414D |
| 19 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 20 | 643929-3 | Makita 643929-3 Holder Cap for 6213D |
| 21 | 266282-6 | |
| 22 | 689136-4 | Makita 689136-4 FET SPACER, 6319D |
| 23 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 24 | 183872-9 | |
| 25 | 232220-0 | Makita 232220-0 LEAF SPRING, HP451D |
| 26 | 819001-5 | |
| 28 | 344391-2 | Makita 344391-2 Bit Holder for BDF460 6333D 6336D |
