Makita 6313D
Makita 6313D: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6313D: 26 positions on 1 sheet

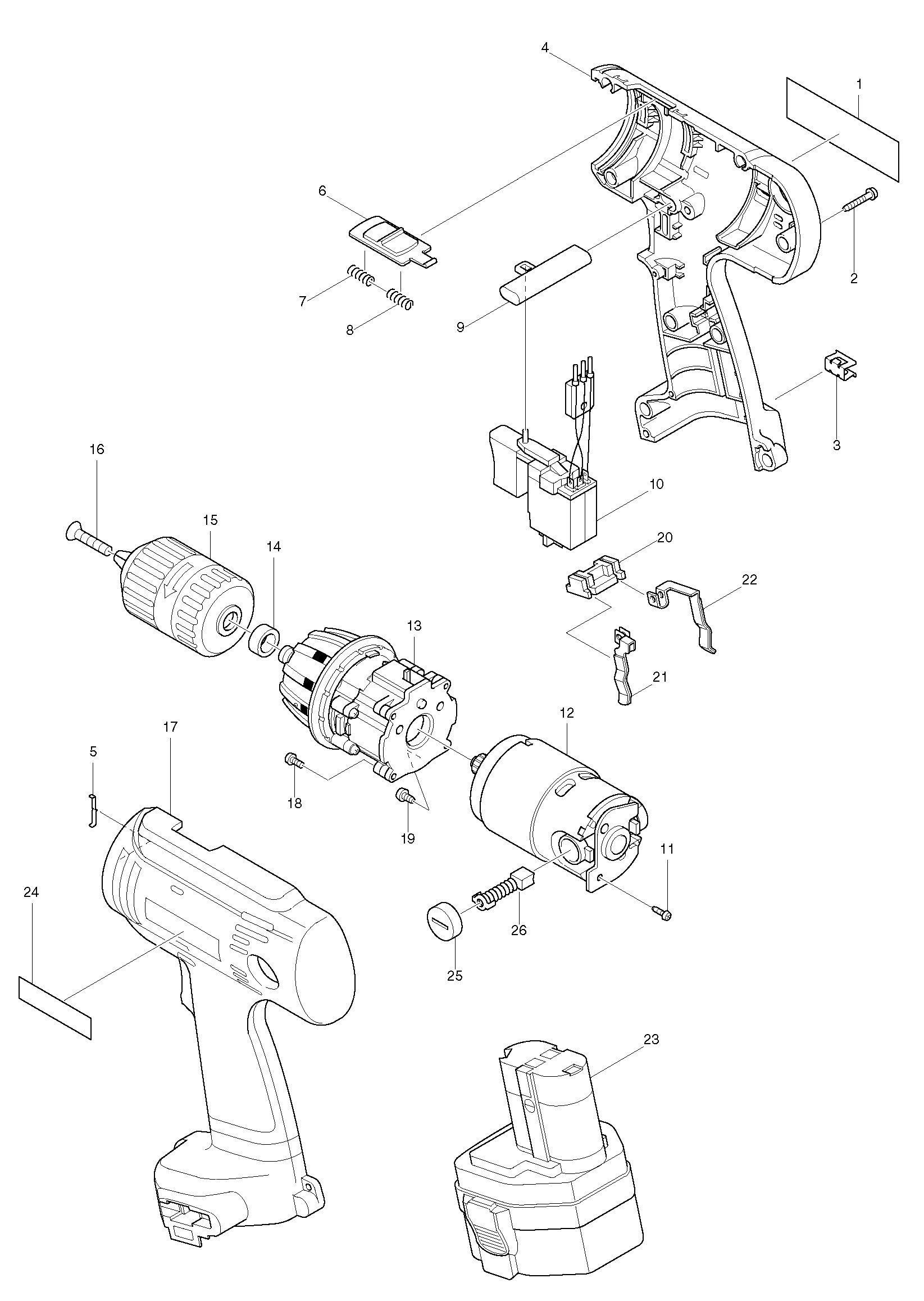

Sheet 1: Makita 6313D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 858697-7 | Makita 858697-7 NAME PLATE 6313D |
| 2 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 3 | 344391-2 | Makita 344391-2 Bit Holder for BDF460 6333D 6336D |
| 4 | 182830-2 | Makita 182830-2 HOUSING SET |
| 5 | 232159-7 | Makita 232159-7 LEAF SPRING |
| 6 | 416058-3 | Makita 416058-3 CHANGE LEVER |
| 7 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 8 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 9 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 10 | 651939-6 | Makita 651939-6 Switch 6336D 6908D 6960D 6313D 6314D 6316D 6333D 841D3 8433D |
| 11 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 12 | 629698-0 | Makita 629698-0 DC MOTOR 6313D 6213 |
| 13 | 125043-2 | Makita 125043-2 GEAR ASS'Y 6213D, 6313D |
| 14 | 257671-6 | Makita 257671-6 SLEEVE 10 |
| 15 | 192891-4 | Makita 192891-4 Keyless Chuck 13MM, 3/8" 1,5-13MM for 6333D |
| 16 | 266154-5 | Makita 266154-5 HEX. SOCKET HEAD BOLT M5X |
| 17 | 182830-2 | Makita 182830-2 HOUSING SET |
| 18 | 911017-7 | Makita 911017-7 PAN HEAD SCREW M3X12 |
| 19 | 266134-1 | Makita 266134-1 TAPPING SCREW ST 4X8 |
| 20 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 21 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 22 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 23 | 192597-4 | |
| 24 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 25 | 643929-3 | Makita 643929-3 Holder Cap for 6213D |
| 26 | 191964-0 | Makita 191964-0 CARBON BRUSH CB-420 |
