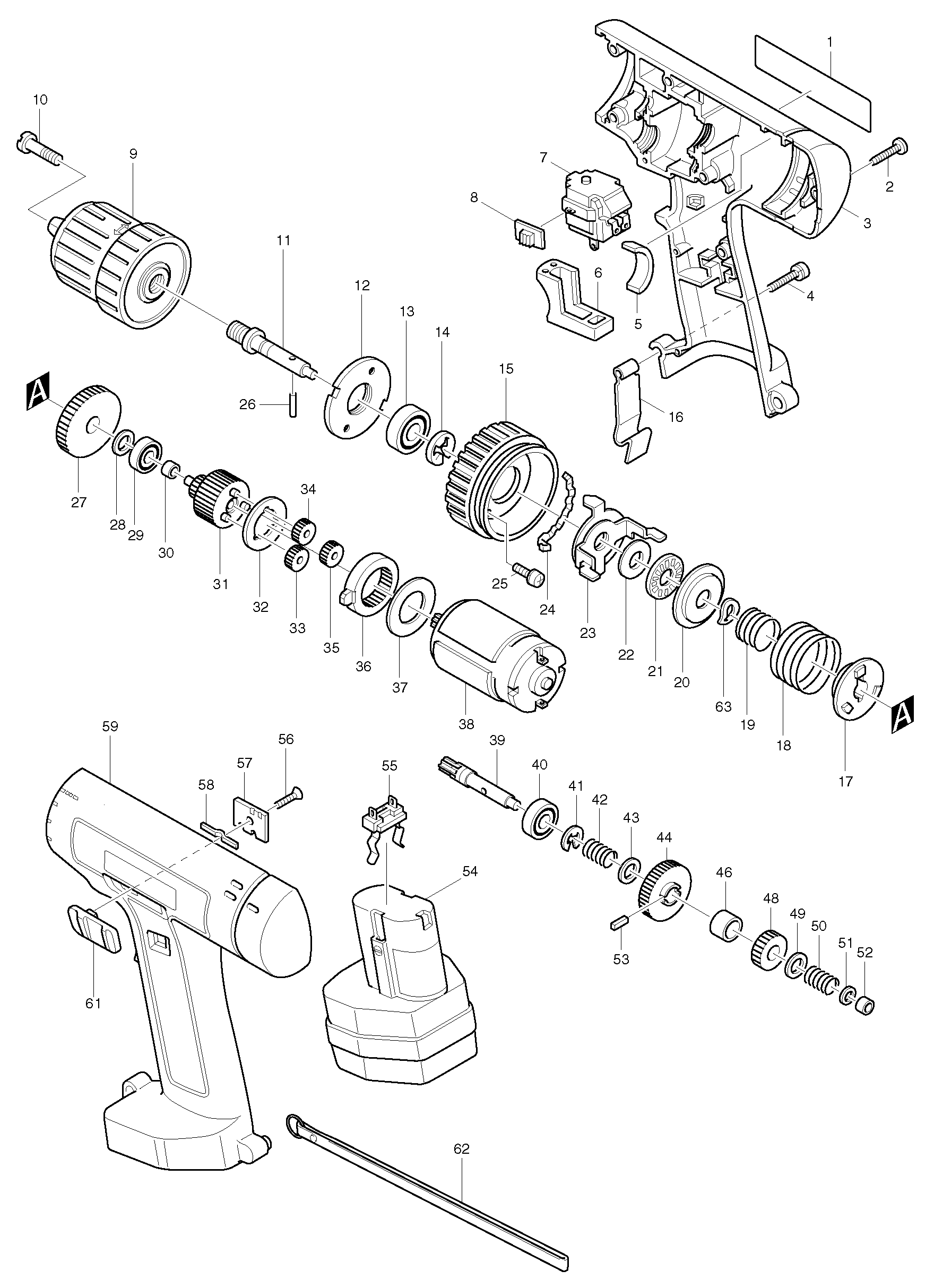

Sheet 1: Makita 6311D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 857037-6 | Makita 857037-6 NAME PLATE 6311D |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 182878-4 | Makita 182878-4 HOUSING SET FOR 6312DW |
| 4 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 5 | 835244-1 | Makita 835244-1 SPONGE 14-72 |
| 6 | 415671-4 | Makita 415671-4 SWITCH LEVER, 6222D |
| 7 | 651909-5 | Makita 651909-5 SWITCH C3KE-8, 6221D |
| 8 | 414740-8 | Makita 414740-8 F/R CHANGE LEVER, 6222D |
| 9 | 192284-5 | |
| 10 | 251425-3 | Makita 251425-3 FLAT HEAD SCREW M4, HR2410 |
| 11 | 322540-1 | Makita 322540-1 SPINDLE |
| 12 | 285674-0 | |
| 13 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 14 | 961015-1 | Makita 961015-1 STOP RING E-9, 6220D |
| 15 | 415013-2 | Makita 415013-2 CHANGE RING |
| 16 | 343579-1 | |
| 17 | 223090-8 | Makita 223090-8 CLUTCH CAM |
| 18 | 233044-7 | Makita 233044-7 COMPRESSION SPRING 27, 6222D |
| 19 | 233061-7 | |
| 20 | 267705-7 | |
| 21 | 216401-4 | |
| 22 | 253180-3 | Makita 253180-3 FLAT WASHER 10, 6220D |
| 23 | 165024-4 | Makita 165024-4 SLIDER |
| 24 | 343976-1 | Makita 343976-1 CAM PLATE |
| 25 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 26 | 256054-7 | Makita 256054-7 PIN 4, 4324 |
| 27 | 226250-1 | Makita 226250-1 SPUR GEAR 49 |
| 28 | 267100-1 | Makita 267100-1 FLAT WASHER 6 |
| 29 | 211016-2 | Makita 211016-2 BALL BEARING 626LLB |
| 30 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 31 | 153213-3 | |
| 32 | 267098-2 | Makita 267098-2 FLAT WASHER 16 |
| 33 | 226245-4 | |
| 34 | 226245-4 | |
| 35 | 226245-4 | |
| 36 | 226248-8 | Makita 226248-8 INTERNAL GEAR 48 |
| 37 | 253794-8 | Makita 253794-8 FLAT WASHER 18 |
| 38 | 629636-2 | Makita 629636-2 DC Motor 12V 6311D 6211D |
| 39 | 226253-5 | |
| 40 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 41 | 961013-5 | Makita 961013-5 STOP RING E-7, LS1016 |
| 42 | 233041-3 | Makita 233041-3 COMPRESSION SPRING 8 |
| 43 | 253339-2 | Makita 253339-2 THIN WASHER 8 6201DW |
| 44 | 226292-5 | Makita 226292-5 SPUR GEAR 40 |
| 46 | 257178-2 | Makita 257178-2 RING 12 |
| 48 | 226261-6 | |
| 49 | 253339-2 | Makita 253339-2 THIN WASHER 8 6201DW |
| 50 | 233041-3 | Makita 233041-3 COMPRESSION SPRING 8 |
| 51 | 267099-0 | Makita 267099-0 FLAT WASHER 4 |
| 52 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 53 | 254236-5 | Makita 254236-5 KEY 3 |
| 54 | 192536-4 | |
| 55 | 643909-9 | Makita 643909-9 BATTERY HOLDER *, 6222D |
| 56 | 265007-5 | |
| 57 | 343987-6 | Makita 343987-6 STOPPER |
| 58 | 232053-3 | Makita 232053-3 LEAF SPRING |
| 59 | 182878-4 | Makita 182878-4 HOUSING SET FOR 6312DW |
| 61 | 415014-0 | |
| 62 | 163319-9 | Makita 163319-9 HAND STRAP |
| 63 | 253932-2 | Makita 253932-2 WAVE WASHER 10, 2012NB |
