Makita 63004
Makita 63004: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 63004: 56 positions on 1 sheet

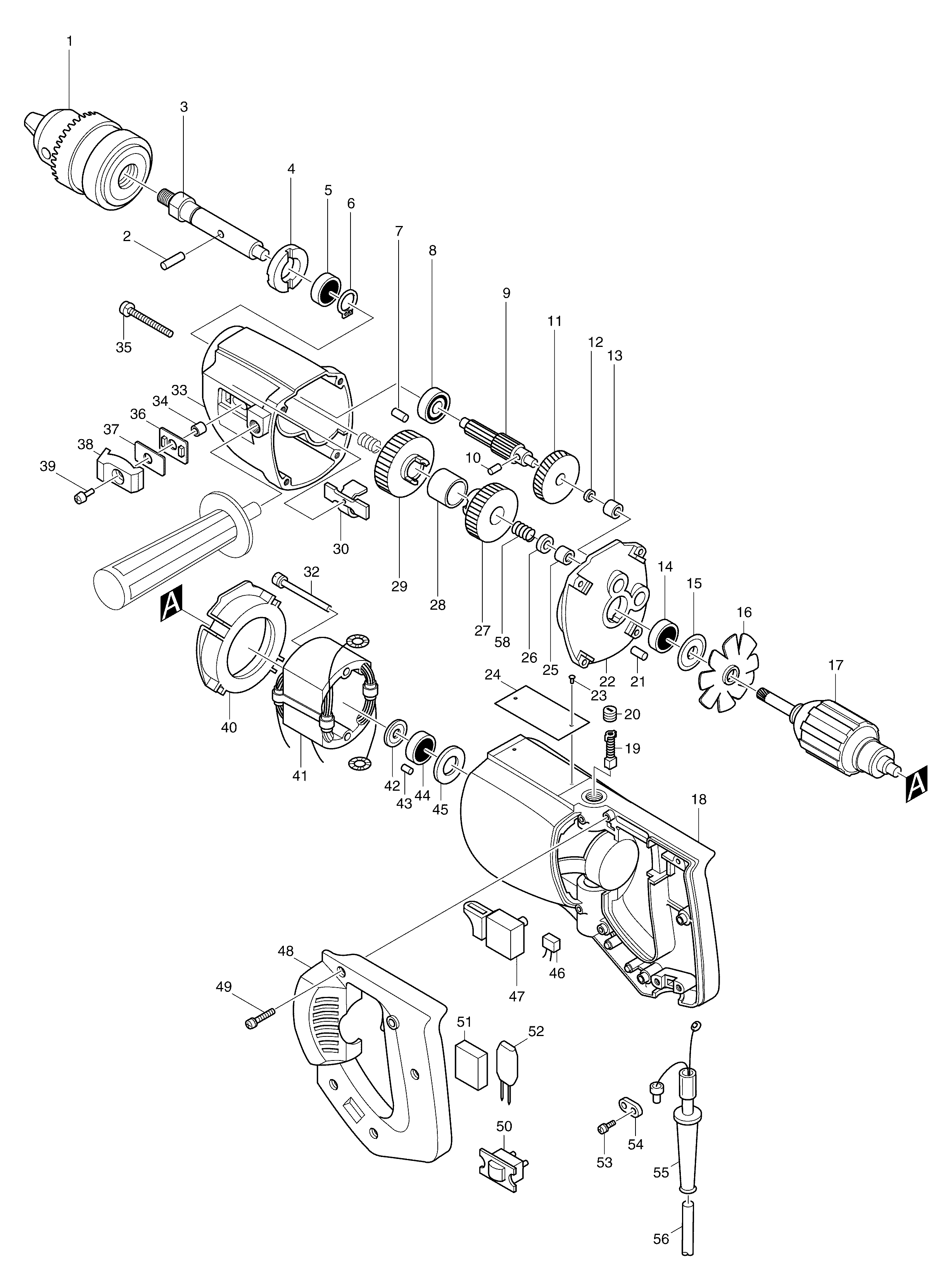

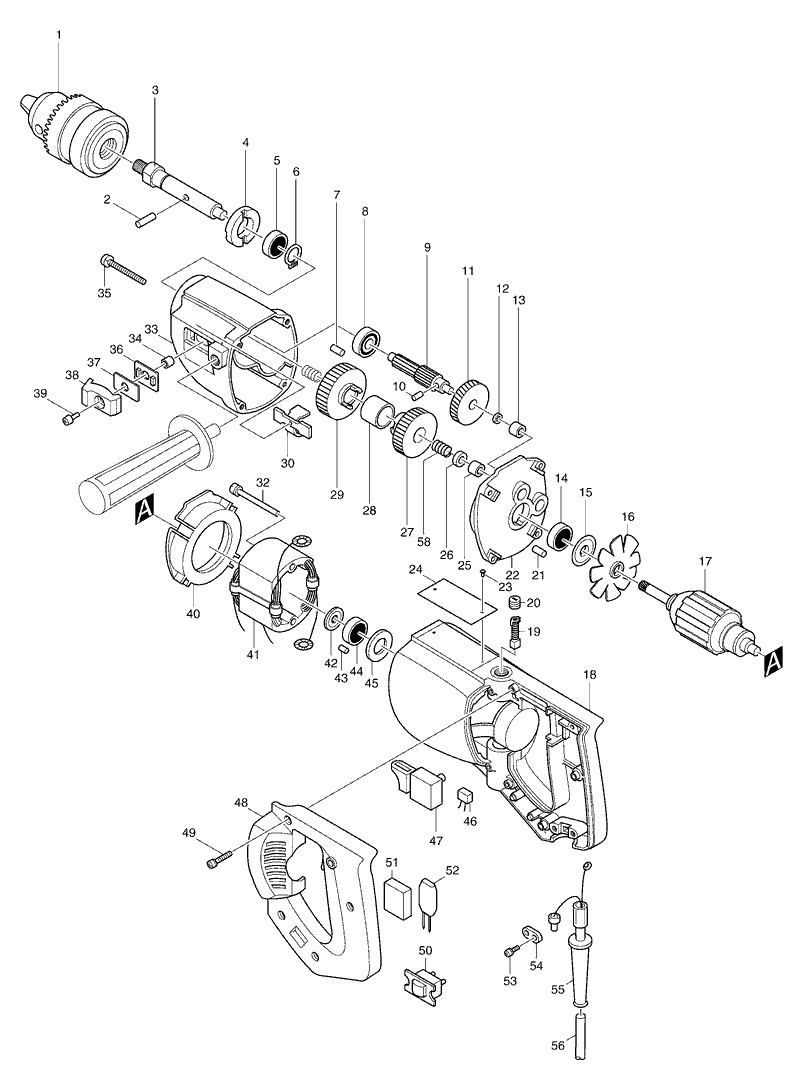

Sheet 1: Makita 63004 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 192877-8 | |
| 2 | 256021-2 | Makita 256021-2 PIN 5, UC3020A |
| 3 | 335044-4 | Makita 335044-4 SPINDLE |
| 4 | 285807-7 | Makita 285807-7 BEARING RETAINER 22-36 |
| 5 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 6 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 7 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 8 | 211016-2 | Makita 211016-2 BALL BEARING 626LLB |
| 9 | 221825-1 | Makita 221825-1 SPUR GEAR 7-13 |
| 10 | 256074-1 | Makita 256074-1 PIN 4 |
| 11 | 221619-4 | Makita 221619-4 HELICAL GEAR 43 |
| 12 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 13 | 212004-2 | Makita 212004-2 NEEDLE BEARING 810 |
| 14 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 15 | 213002-9 | Makita 213002-9 DUST SEAL 8 |
| 16 | 241015-0 | Makita 241015-0 FAN 68 |
| 17 | 512638-4 | Makita 512638-4 ARMATURE ASS Y 220V |
| 18 | 159087-0 | Makita 159087-0 MOTOR HOUSING |
| 19 | 181021-2 | Makita 181021-2 Carbon Brushes CB-51 1901 1902 1923B N1932B 4014B 6300L 9030 |
| 20 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 21 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 22 | 156976-0 | Makita 156976-0 GEAR HOUSING COVER |
| 23 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 24 | 815019-4 | Makita 815019-4 NAME PLATE 6300-4 |
| 25 | 212004-2 | Makita 212004-2 NEEDLE BEARING 810 |
| 26 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 27 | 221824-3 | Makita 221824-3 SPUR GEAR 38 |
| 28 | 257538-8 | Makita 257538-8 SLEEVE 20 |
| 29 | 221823-5 | Makita 221823-5 SPUR GEAR 45 |
| 30 | 342482-3 | Makita 342482-3 SLIDER |
| 32 | 911275-5 | Makita 911275-5 PAN HEAD SCREW M5X50 |
| 33 | 156913-4 | Makita 156913-4 GEAR HOUSING COMPLETE |
| 34 | 257539-6 | Makita 257539-6 SLEEVE 5 |
| 35 | 911261-6 | Makita 911261-6 PAN HEAD SCREW M5X40 |
| 36 | 343286-6 | Makita 343286-6 SET SPRING |
| 37 | 232045-2 | Makita 232045-2 LEAF SPRING |
| 38 | 411344-7 | Makita 411344-7 GEAR SWITCH BUTTON |
| 39 | 911215-3 | Makita 911215-3 PAN HEAD SCREW M5X12 WM, JR300VT |
| 40 | 411234-4 | Makita 411234-4 BAFFLE PLATE |
| 41 | 528715-2 | Makita 528715-2 FIELD ASS Y 220V |
| 42 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 43 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 44 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 45 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 46 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 47 | 651232-8 | Makita 651232-8 Switch SGEL206C 900B GV500 9031 1911B 63004 |
| 48 | 414522-8 | Makita 414522-8 HANDLE COVER |
| 49 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 50 | 651600-5 | Makita 651600-5 SWITCH SS106A |
| 51 | 685718-0 | Makita 685718-0 SPONGE SHEET JR3000V |
| 52 | 631011-0 | Makita 631011-0 DIODE S3V60ZM-H |
| 53 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 54 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 55 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 56 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 58 | 231232-0 | Makita 231232-0 COMPRESSION SPRING 14 |
