Makita 6281D: exploded parts diagram, 1 sheet, 14 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6281D: 14 positions on 1 sheet

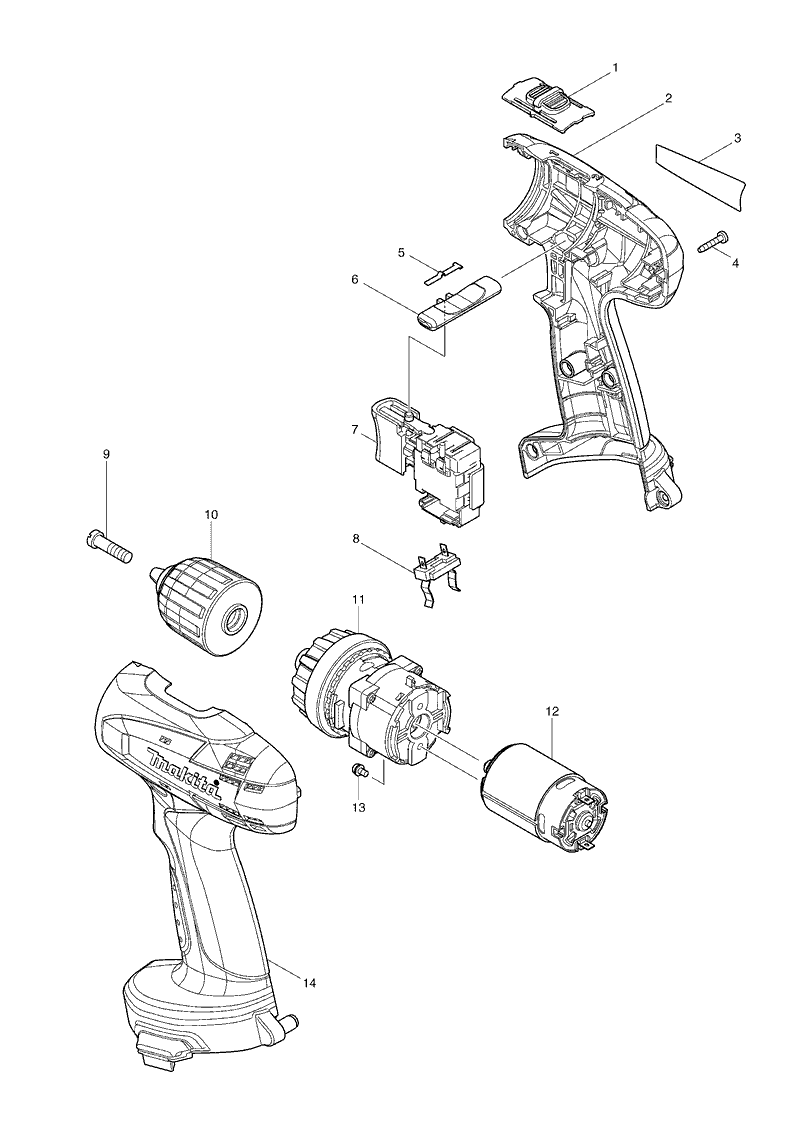

Sheet 1: Makita 6281D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 125310-5 | Makita 125310-5 Speed Change Lever Assembly 6271D BDF450 BHP440 BHP450 |
| 2 | 188512-4 | Old code 188512-4 |
| 3 | 865168-7 | Makita 865168-7 NAME PLATE, 6281D |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 6 | 450584-2 | Makita 450584-2 F/R Change Lever for 6261D 6271D 6281D 8271D 8281D |
| 7 | 650601-0 | Makita 650601-0 SWITCH TG563FSB-2 |
| 8 | 643909-9 | Makita 643909-9 BATTERY HOLDER *, 6222D |
| 9 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 10 | 766002-3 | |
| 11 | 125482-6 | Makita 125482-6 Gear Assembly for 6261D |
| 12 | 629819-4 | Makita 629819-4 DC Motor for 6280D |
| 13 | 911003-8 | Makita 911003-8 PAN HEAD SCREW M3X6, 6226D |
| 14 | 188512-4 | Old code 188512-4 |
