Makita 6260D
Makita 6260D: exploded parts diagram, 1 sheet, 15 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6260D: 15 positions on 1 sheet

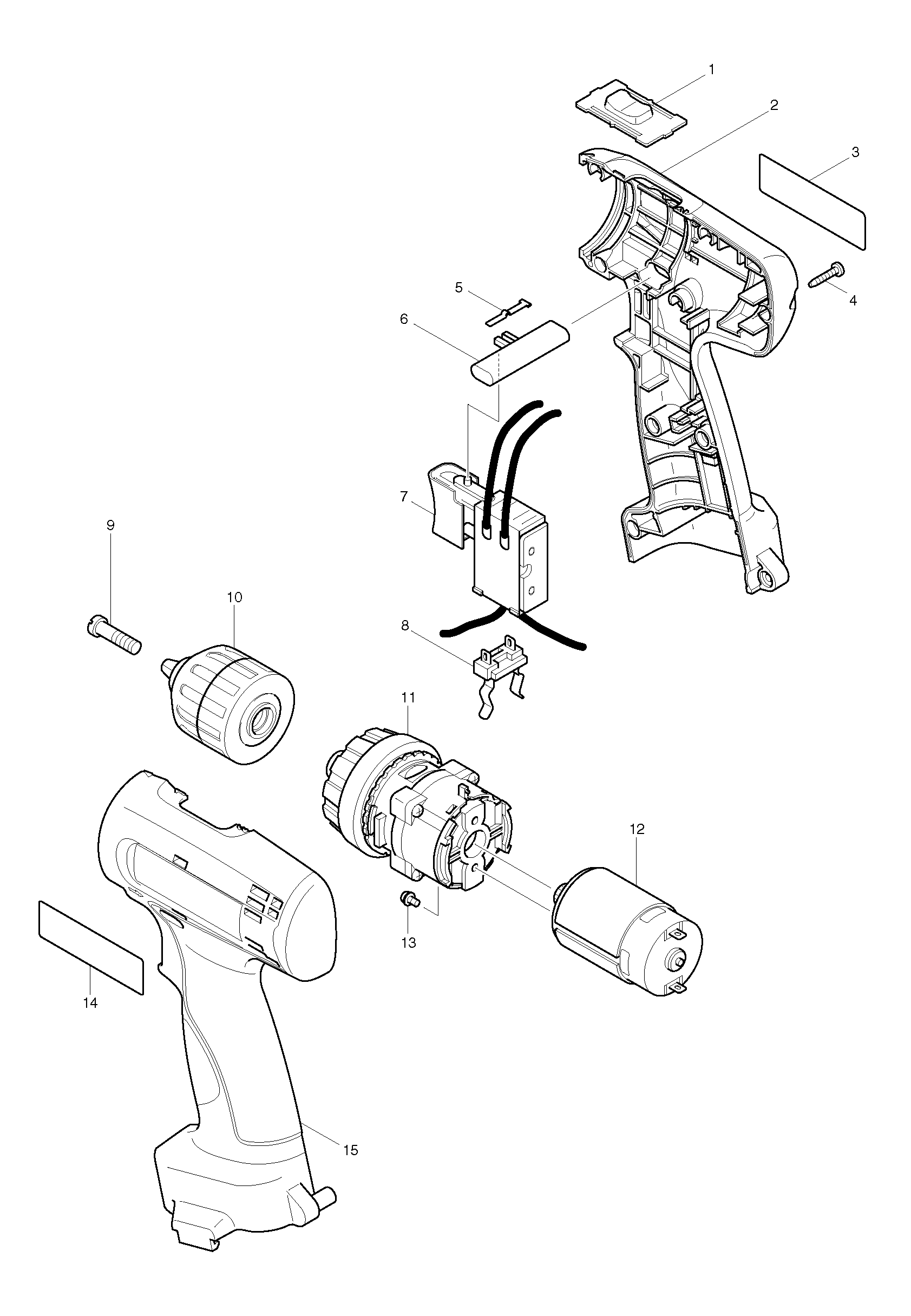

Sheet 1: Makita 6260D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 125102-2 | Makita 125102-2 SPEED CHANGE LEVER ASSEMBLY, 6260D |
| 2 | 183793-5 | Makita 183793-5 HOUSING SET FOR 6260D |
| 3 | 860433-9 | Makita 860433-9 NAME PLATE 6260D, 6260D |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 6 | 417283-9 | Makita 417283-9 F/R Change Lever for 6260D |
| 7 | 650556-9 | Makita 650556-9 Switch C3NA-1-M1 for 6260D 6270D 6280D 8270D 8280D |
| 8 | 643909-9 | Makita 643909-9 BATTERY HOLDER *, 6222D |
| 9 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 10 | 763185-0 | |
| 11 | 125237-9 | Makita 125237-9 Gear Assembly 6260D 6270D 6280D |
| 12 | 629815-2 | Motor 629815-2 Makita for 6260D 6261D |
| 13 | 911003-8 | Makita 911003-8 PAN HEAD SCREW M3X6, 6226D |
| 14 | 819001-5 | |
| 15 | 183793-5 | Makita 183793-5 HOUSING SET FOR 6260D |
