Makita 6228D
Makita 6228D: exploded parts diagram, 1 sheet, 19 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6228D: 19 positions on 1 sheet

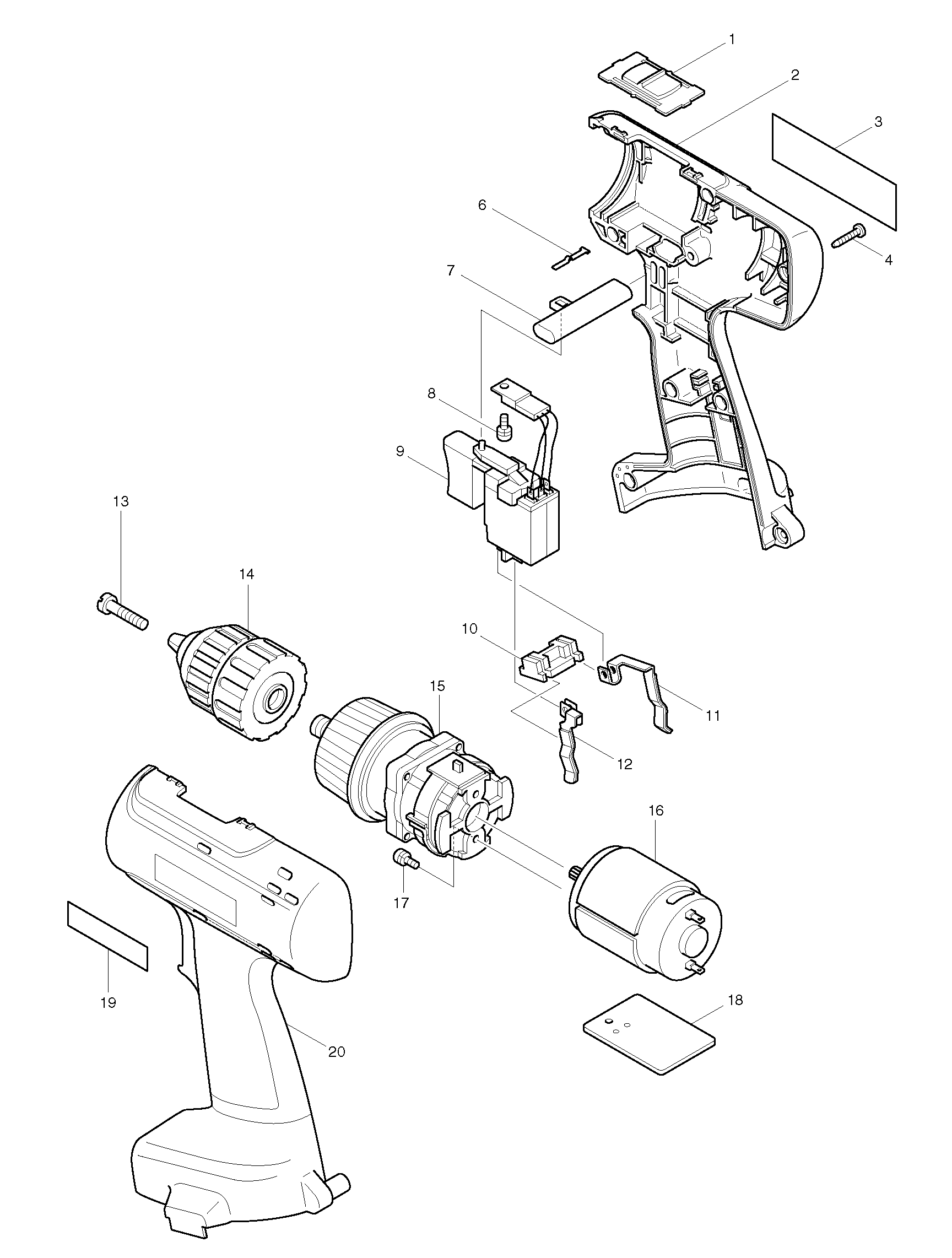

Sheet 1: Makita 6228D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 125091-1 | Makita 125091-1 Speed Change Lever 6096D 6204D 6214D 6228D 6314D 6343D |
| 2 | 183212-1 | Makita 183212-1 HOUSING SET 6228D *, 6228D |
| 3 | 852060-6 | Makita 852060-6 NAME PLATE 6228D |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 6 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 7 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 8 | 911003-8 | Makita 911003-8 PAN HEAD SCREW M3X6, 6226D |
| 9 | 651989-1 | Makita 651989-1 Switch C3LA-1A-T(N) for 6226D 6227D 6228D |
| 10 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 11 | 654168-0 | Makita 654168-0 SPRING TERMINAL (+) |
| 12 | 654169-8 | Makita 654169-8 SPRING TERMINAL (-) |
| 13 | 251451-2 | Makita 251451-2 Pan Head Screw M5X22 for 6220D |
| 14 | 763132-1 | |
| 15 | 125087-2 | Makita 125087-2 Gear Assembly for 6227D 6228D 6226D 6095D 6096D |
| 16 | 629752-0 | DISC Makita 629752-0 MOTOR 6228D |
| 17 | 911003-8 | Makita 911003-8 PAN HEAD SCREW M3X6, 6226D |
| 18 | 689092-8 | Makita 689092-8 HEAT SINK, 6226D |
| 19 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 20 | 183212-1 | Makita 183212-1 HOUSING SET 6228D *, 6228D |
