Makita 6207D
Makita 6207D: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6207D: 23 positions on 1 sheet

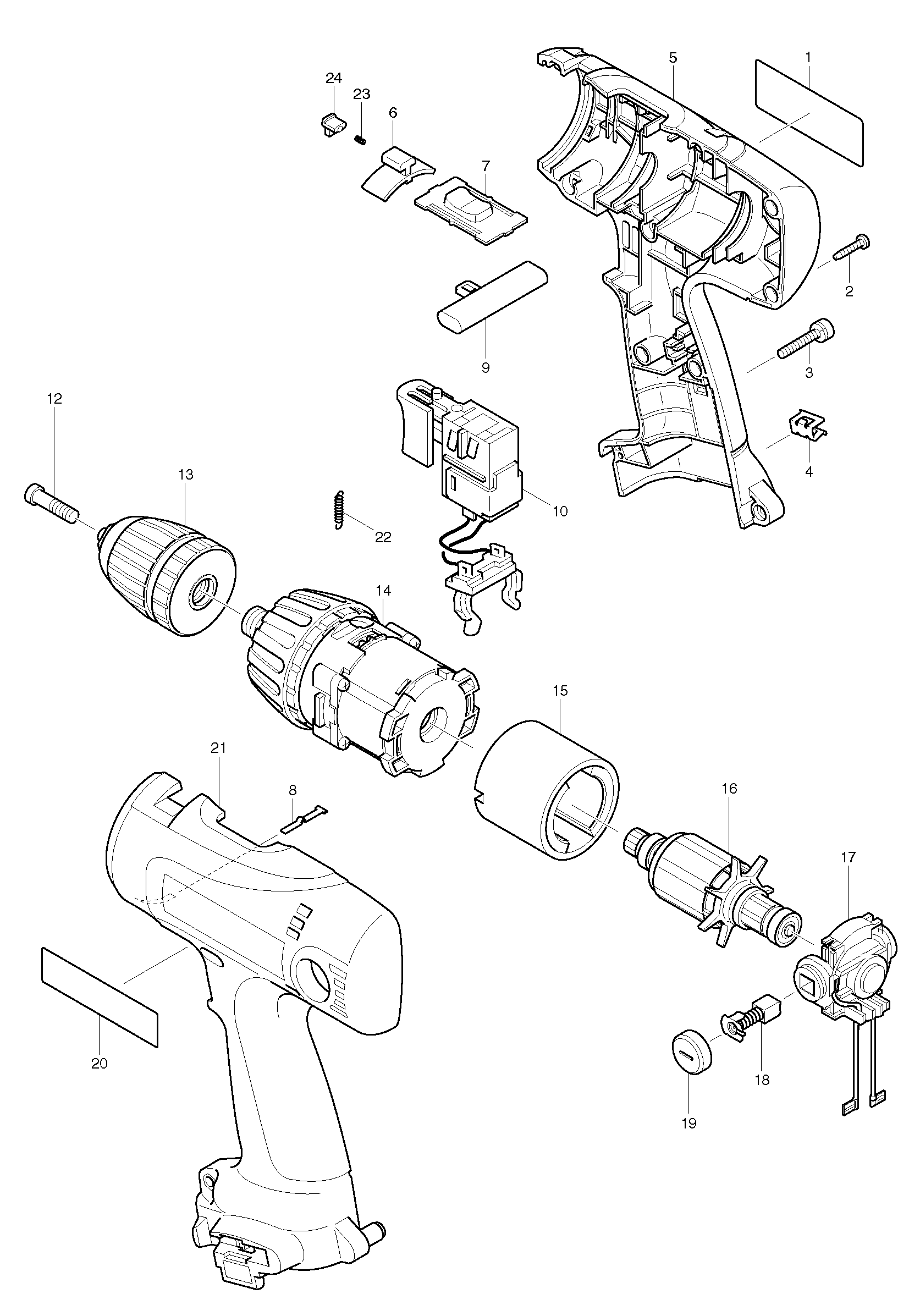

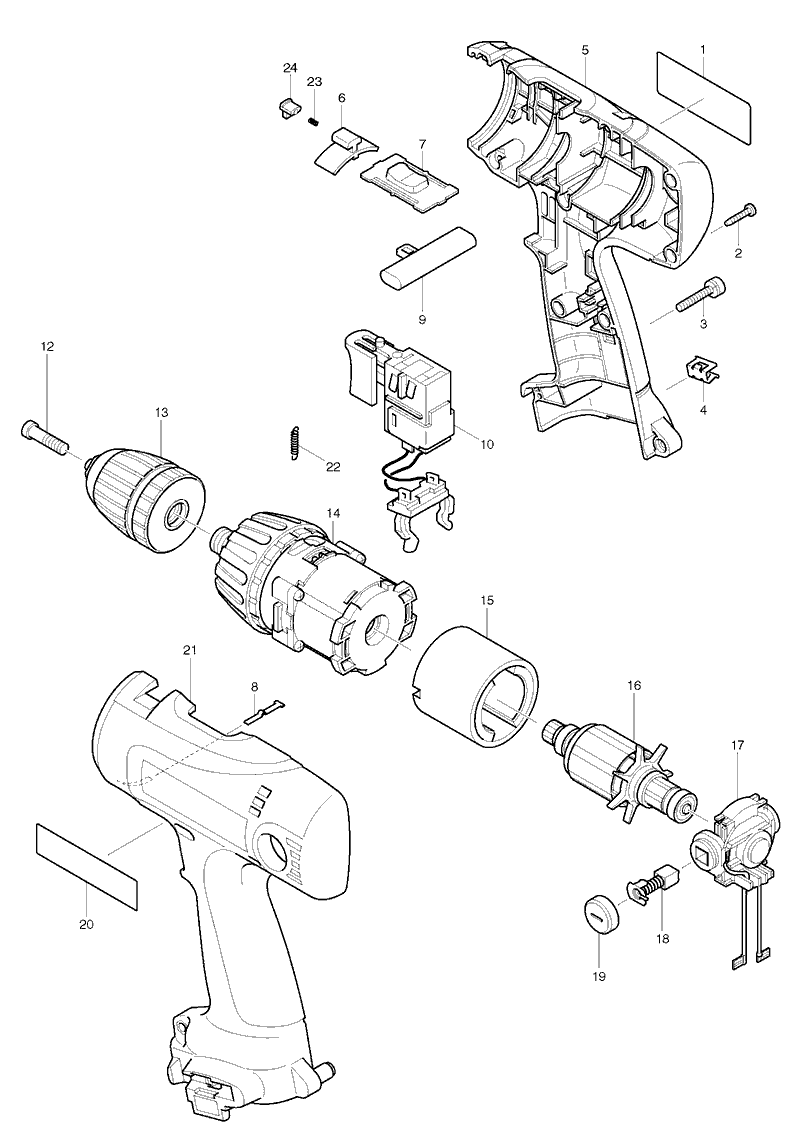

Sheet 1: Makita 6207D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 853697-2 | |
| 2 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 3 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 4 | 344391-2 | Makita 344391-2 Bit Holder for BDF460 6333D 6336D |
| 5 | 183450-5 | Makita 183450-5 HOUSING SET 6207D |
| 6 | 417879-6 | Makita 417879-6 MODE CHANGE LEVER 6317D |
| 7 | 125102-2 | Makita 125102-2 SPEED CHANGE LEVER ASSEMBLY, 6260D |
| 8 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 9 | 417880-1 | Makita 417880-1 F/R Change Lever for 6317D |
| 10 | 638144-2 | Makita 638144-2 Switch for 6207D 6217D 6317D 6317DW 6337D |
| 12 | 251464-3 | Makita 251464-3 Flat Head Screw M6X22 for BDF440 BDF450 BHP440 BHP450 |
| 13 | 763165-6 | |
| 14 | 125160-8 | Makita 125160-8 GEAR ASSY 6317D |
| 15 | 638138-7 | Makita 638138-7 Yoke Unit for MT560 6317D 6337D 6347D |
| 16 | 619078-8 | Makita 619078-8 ARMATURE 6207D |
| 17 | 638139-5 | Makita 638139-5 Endbell Complete for 6317D |
| 18 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 19 | 643929-3 | Makita 643929-3 Holder Cap for 6213D |
| 20 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 21 | 183450-5 | Makita 183450-5 HOUSING SET 6207D |
| 22 | 231829-5 | Makita 231829-5 TENSION SPRING 2 6317D |
| 23 | 233353-4 | Makita 233353-4 COMPRESSION SPRING 2 |
| 24 | 417966-1 | Makita 417966-1 LOCK LEVER 6317D |
