All parts of Makita 6093D: 48 positions on 1 sheet

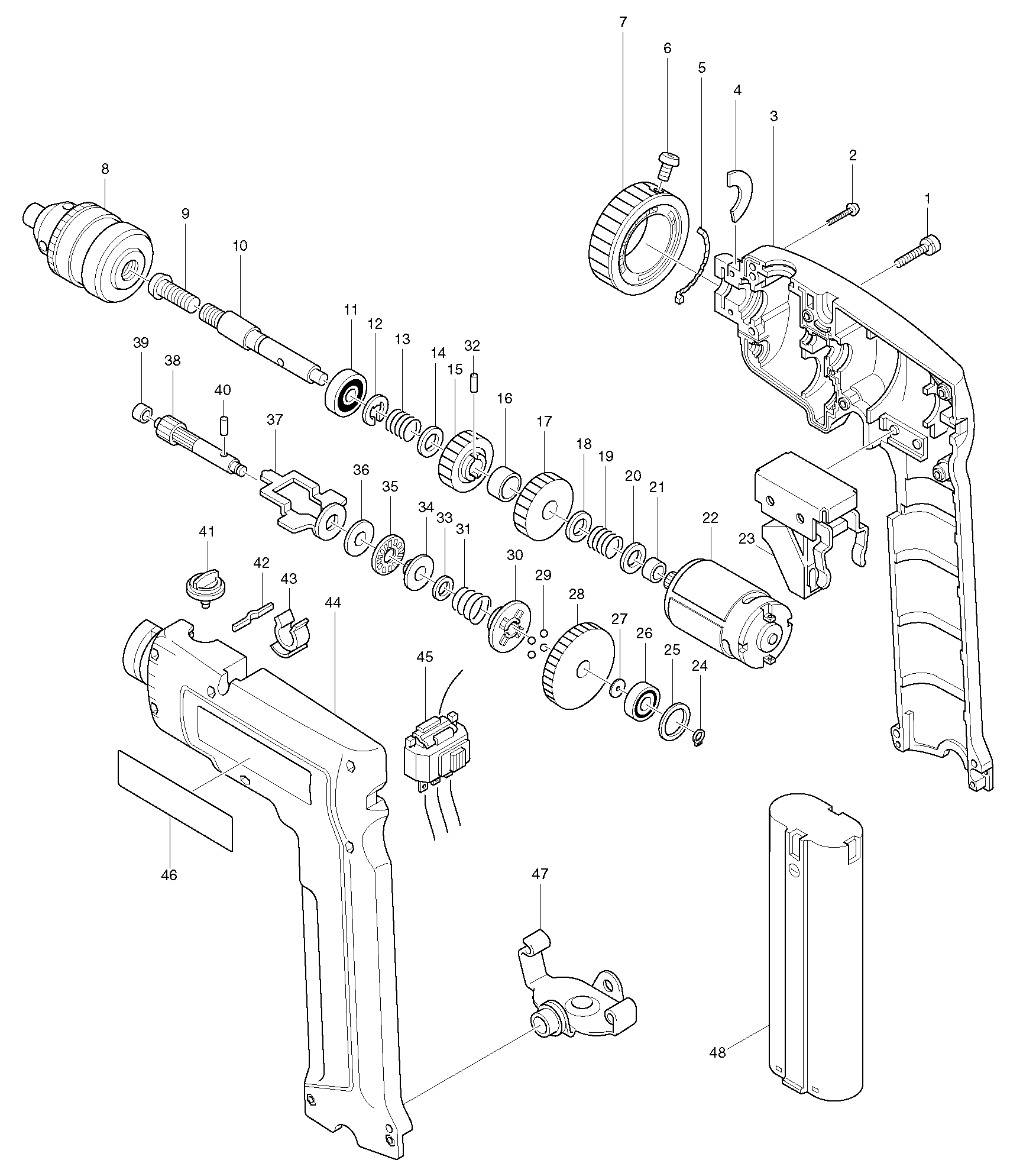

Sheet 1: Makita 6093D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 2 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 3 | 182141-5 | Makita 182141-5 HOUSING SET |
| 4 | 343421-6 | Makita 343421-6 GUIDE PLATE |
| 5 | 343410-1 | Makita 343410-1 CAM PLATE |
| 6 | 251322-3 | Makita 251322-3 + PAN HEAD SCREW M5X12 |
| 7 | 410936-9 | Makita 410936-9 CHANGE RING |
| 8 | 192970-8 | |
| 9 | 251448-1 | Makita 251448-1 - PAN HEAD SCREW M5X18 |
| 10 | 321995-7 | |
| 11 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 12 | 961015-1 | Makita 961015-1 STOP RING E-9, 6220D |
| 13 | 231250-8 | |
| 14 | 253330-0 | Makita 253330-0 THIN WASHER 10 |
| 15 | 221862-5 | Makita 221862-5 SPUR GEAR 78 |
| 16 | 257073-6 | Makita 257073-6 RING 16 |
| 17 | 221884-5 | Makita 221884-5 SPUR GEAR 93 6095D |
| 18 | 253330-0 | Makita 253330-0 THIN WASHER 10 |
| 19 | 231250-8 | |
| 20 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 21 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 22 | 629581-1 | Makita 629581-1 DC Motor 9.6V for 6095D UM1690D |
| 23 | 651347-1 | Makita 651347-1 SWITCH C3BF |
| 24 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 25 | 253842-3 | Makita 253842-3 FLAT WASHER 14, HR2410 |
| 26 | 211016-2 | Makita 211016-2 BALL BEARING 626LLB |
| 27 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 28 | 226233-1 | Makita 226233-1 SPUR GEAR 89 |
| 29 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 30 | 223086-9 | Makita 223086-9 CLUTCH CAM |
| 31 | 231927-5 | Makita 231927-5 CONICAL COMPR. SPRING 16- |
| 32 | 256101-4 | Makita 256101-4 PIN 3 |
| 33 | 257141-5 | |
| 34 | 341902-4 | |
| 35 | 216401-4 | |
| 36 | 253851-2 | Makita 253851-2 FLAT WASHER 8 |
| 37 | 164840-1 | |
| 38 | 226062-2 | Makita 226062-2 GEAR COMPLETE 12-28 |
| 39 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 40 | 256119-5 | Makita 256119-5 PIN 3 |
| 41 | 168096-8 | Makita 168096-8 SHIFTER |
| 42 | 232053-3 | Makita 232053-3 LEAF SPRING |
| 43 | 411640-3 | Makita 411640-3 HOLDER 6 |
| 44 | 182141-5 | Makita 182141-5 HOUSING SET |
| 45 | 531057-5 | Makita 531057-5 SWITCH ASSY C3BC-01 |
| 46 | 855882-3 | Makita 855882-3 NAME PLATE 6093D |
| 47 | 163157-9 | Makita 163157-9 SET PLATE |
| 48 | 191681-2 |
