Makita 6072D
Makita 6072D: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6072D: 30 positions on 1 sheet

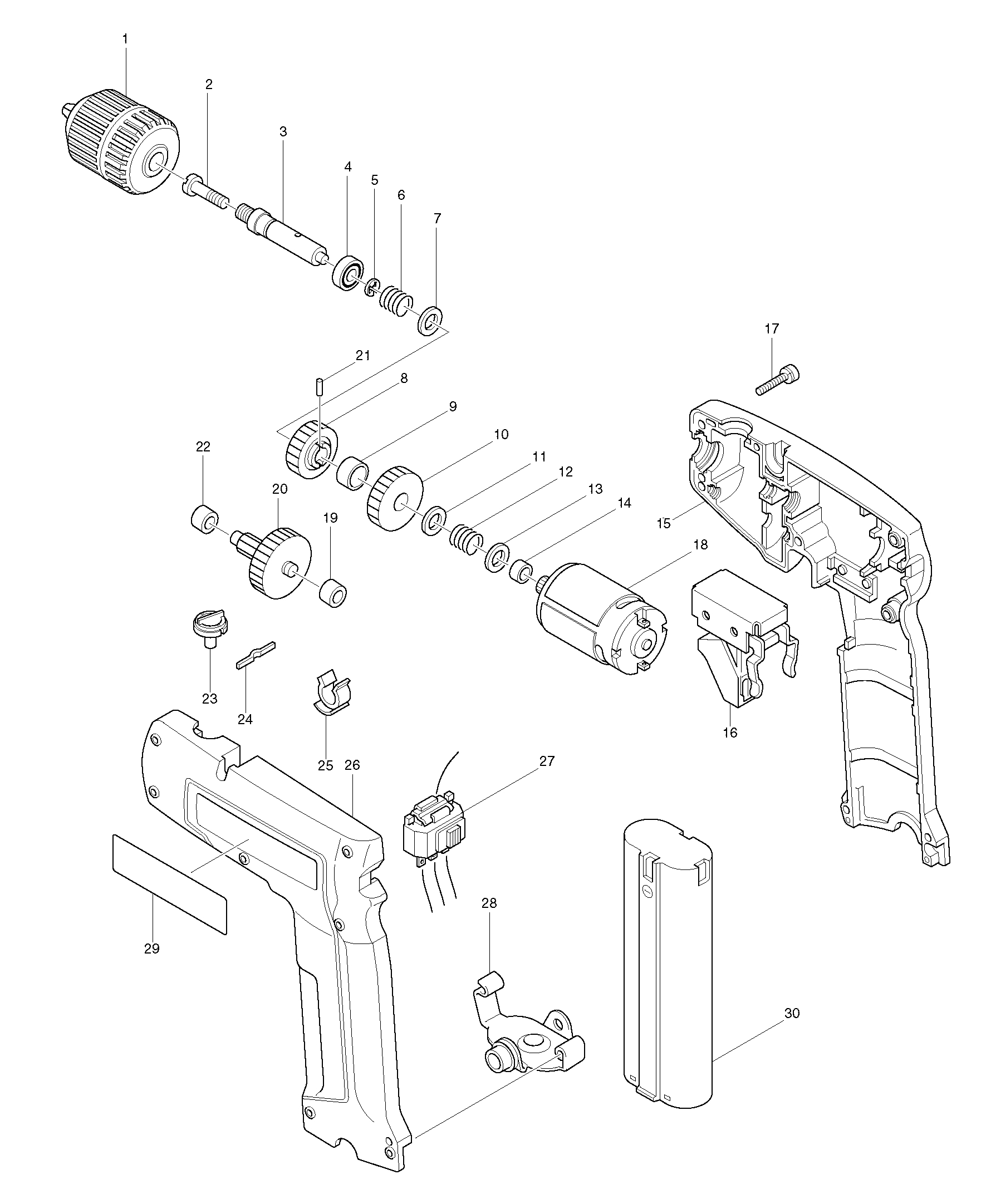

Sheet 1: Makita 6072D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 763132-1 | |
| 2 | 251448-1 | Makita 251448-1 - PAN HEAD SCREW M5X18 |
| 3 | 321723-0 | Makita 321723-0 SPINDLE |
| 4 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 5 | 961015-1 | Makita 961015-1 STOP RING E-9, 6220D |
| 6 | 231250-8 | |
| 7 | 253330-0 | Makita 253330-0 THIN WASHER 10 |
| 8 | 221861-7 | Makita 221861-7 SPUR GEAR 69 |
| 9 | 257073-6 | Makita 257073-6 RING 16 |
| 10 | 221862-5 | Makita 221862-5 SPUR GEAR 78 |
| 11 | 253330-0 | Makita 253330-0 THIN WASHER 10 |
| 12 | 231250-8 | |
| 13 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 14 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 15 | 181936-3 | Makita 181936-3 HOUSING SET |
| 16 | 651354-4 | Makita 651354-4 SWITCH C3BF-AJ |
| 17 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 18 | 629514-6 | Makita 629514-6 DC Motor 7.2V for 6012D 6010D |
| 19 | 214016-1 | Makita 214016-1 PLANE BEARING 3 |
| 20 | 153126-8 | Makita 153126-8 GEAR COMPLETE |
| 21 | 256101-4 | Makita 256101-4 PIN 3 |
| 22 | 214016-1 | Makita 214016-1 PLANE BEARING 3 |
| 23 | 168097-6 | Makita 168097-6 SHIFTER |
| 24 | 232053-3 | Makita 232053-3 LEAF SPRING |
| 25 | 411640-3 | Makita 411640-3 HOLDER 6 |
| 26 | 181936-3 | Makita 181936-3 HOUSING SET |
| 27 | 531057-5 | Makita 531057-5 SWITCH ASSY C3BC-01 |
| 28 | 163157-9 | Makita 163157-9 SET PLATE |
| 29 | 855756-8 | Makita 855756-8 NAME PLATE 6072D |
| 30 | 191679-9 |
