Makita 601D
Makita 601D: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 601D: 18 positions on 1 sheet

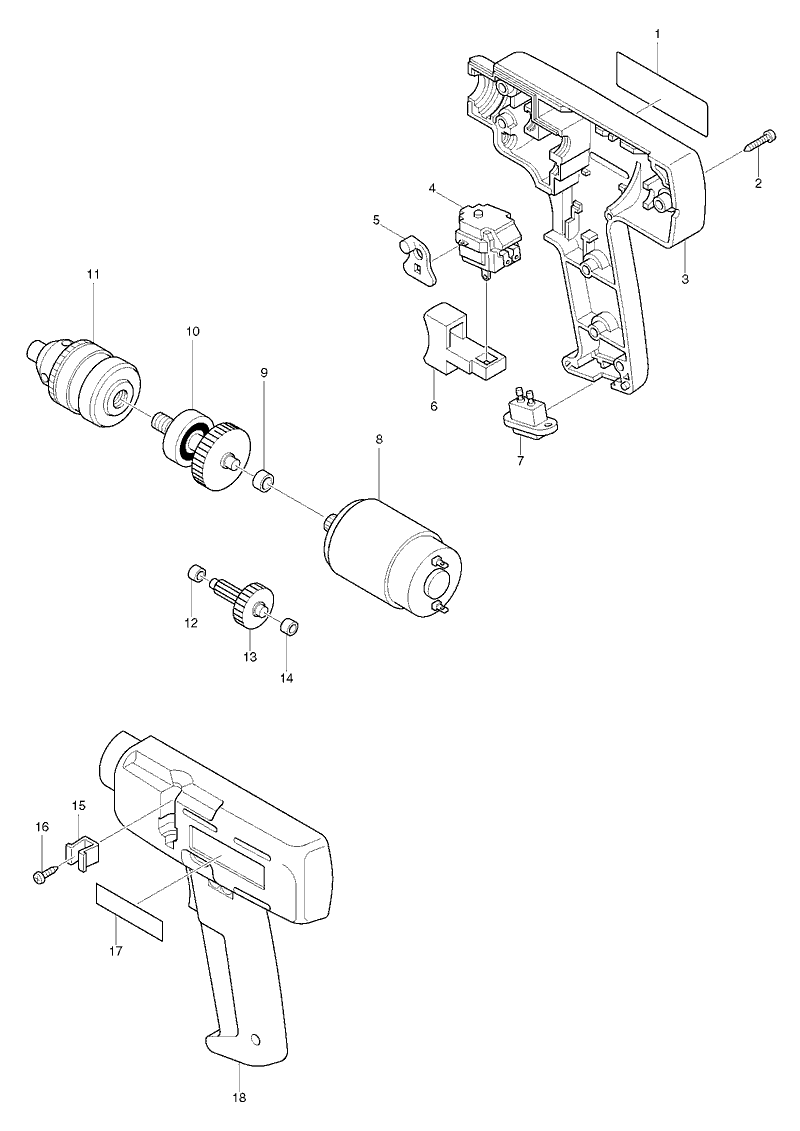

Sheet 1: Makita 601D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 857621-7 | Makita 857621-7 NAME PLATE 601D |
| 2 | 265874-8 | |
| 3 | 182686-3 | Makita 182686-3 HOUSING SET |
| 4 | 650500-6 | Makita 650500-6 Switch 601D 6211 6221 6200 6223 6222 6222D 6913 6940 8411 |
| 5 | 415673-0 | Makita 415673-0 LEVER |
| 6 | 415672-2 | Makita 415672-2 TRIGGER |
| 7 | 655409-7 | Makita 655409-7 INLET |
| 8 | 629630-4 | Makita 629630-4 DC MOTOR 12V |
| 9 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 10 | 153212-5 | Makita 153212-5 GEAR COMPLETE |
| 11 | 763054-5 | Makita 763054-5 DRILL CHUCK S10 |
| 12 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 13 | 226113-1 | Makita 226113-1 GEAR COMPLETE 11-45 |
| 14 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 15 | 343893-5 | Makita 343893-5 HOLDER |
| 16 | 265966-3 | Makita 265966-3 TAPPING SCREW BT 3X10 |
| 17 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 18 | 182686-3 | Makita 182686-3 HOUSING SET |
