Makita 6018D
Makita 6018D: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 6018D: 18 positions on 1 sheet

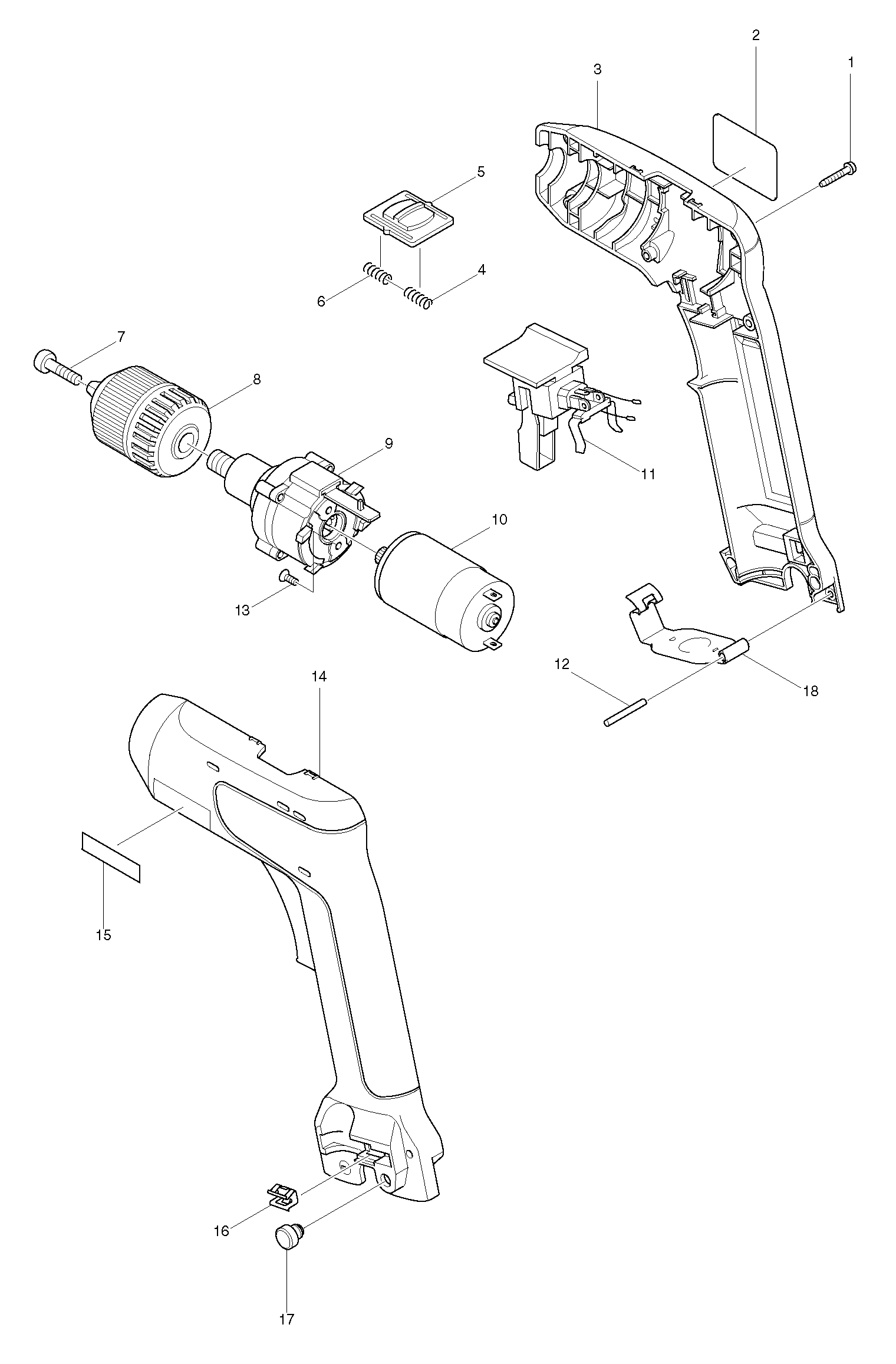

Sheet 1: Makita 6018D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 2 | 858381-4 | Makita 858381-4 NAME PLATE 6018D |
| 3 | 182834-4 | Makita 182834-4 HOUSING SET |
| 4 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 5 | 416119-9 | Makita 416119-9 SPEED CHANGE LEVER |
| 6 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 7 | 251457-0 | Makita 251457-0 - PAN HEAD SCREW M5X20 |
| 8 | 763119-3 | Makita 763119-3 KEYLESS DRILL CHUCK 10 |
| 9 | 125049-0 | Makita 125049-0 Gear Assembly for 6016D 6018D |
| 10 | 629708-3 | Makita 629708-3 DC MOTOR |
| 11 | 531076-1 | Makita 531076-1 SWITCH ASS Y |
| 12 | 256252-3 | Makita 256252-3 PIN, 6936FD |
| 13 | 912002-3 | Makita 912002-3 COUNTERSUNK HEAD SCREW M3 X6 |
| 14 | 182834-4 | Makita 182834-4 HOUSING SET |
| 15 | 819720-3 | Makita 819720-3 MAKITA LABEL |
| 16 | 344391-2 | Makita 344391-2 Bit Holder for BDF460 6333D 6336D |
| 17 | 263022-3 | Makita 263022-3 RUBBER PIN 6 |
| 18 | 344549-3 | Makita 344549-3 SET PLATE |
