All parts of Makita 6013BR: 48 positions on 1 sheet

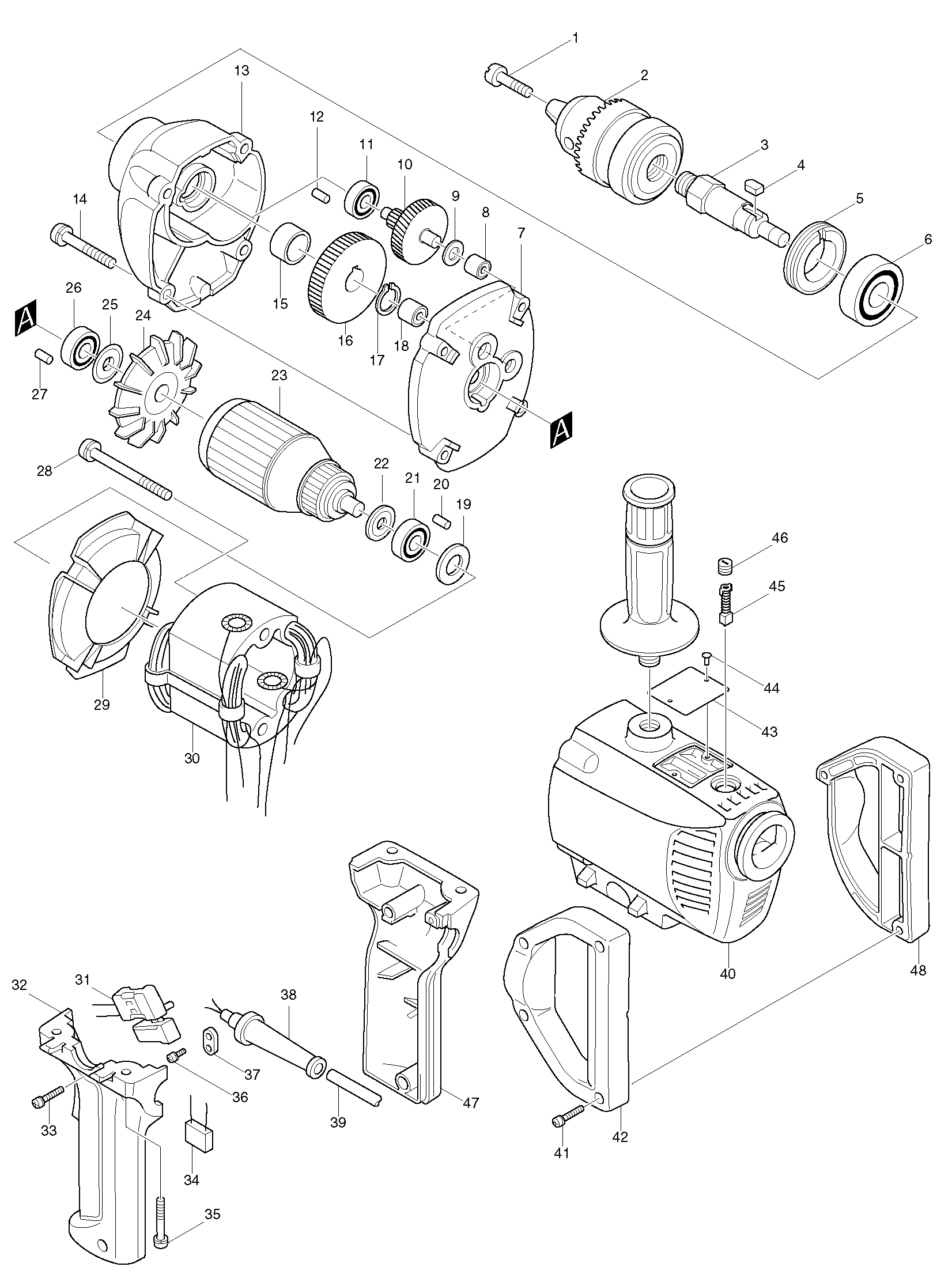

Sheet 1: Makita 6013BR parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251425-3 | Makita 251425-3 FLAT HEAD SCREW M4, HR2410 |
| 2 | 192877-8 | |
| 3 | 325494-1 | Makita 325494-1 SPINDLE |
| 4 | 254211-1 | Makita 254211-1 KEY 5 |
| 5 | 285808-5 | Makita 285808-5 BEARING RETAINER 25-36 |
| 6 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 7 | 156972-8 | Makita 156972-8 GEAR HOUSING COVER |
| 8 | 212012-3 | Makita 212012-3 NEEDLE BEARING 609 |
| 9 | 261008-1 | Makita 261008-1 FIBER WASHER 6 |
| 10 | 226028-2 | Makita 226028-2 GEAR COMPLETE 7-41 |
| 11 | 211016-2 | Makita 211016-2 BALL BEARING 626LLB |
| 12 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 13 | 156971-0 | Makita 156971-0 GEAR HOUSING |
| 14 | 911256-9 | Makita 911256-9 PAN HEAD SCREW M5*35, LS1440 |
| 15 | 257018-4 | Makita 257018-4 RING 15 |
| 16 | 221261-1 | Makita 221261-1 SPUR GEAR 47 |
| 17 | 961054-1 | Makita 961054-1 RETAINING RING S-14 |
| 18 | 212003-4 | Makita 212003-4 NEEDLE BEARING 810 |
| 19 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 20 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 21 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 22 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 23 | 512613-0 | Makita 512613-0 ARMATURE ASS'Y 220V 6013BR |
| 24 | 241622-9 | Makita 241622-9 FAN 62 |
| 25 | 213002-9 | Makita 213002-9 DUST SEAL 8 |
| 26 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 27 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 28 | 911280-2 | Makita 911280-2 PAN HEAD SCREW M5X55 |
| 29 | 411487-5 | Makita 411487-5 BAFFLE PLATE |
| 30 | 527436-3 | Makita 527436-3 FIELD ASS'Y 220V |
| 31 | 651564-3 | Makita 651564-3 Switch SL220SD-4 for 6300LR 6905B 6013BR DA6300 6301LR |
| 32 | 181163-2 | Makita 181163-2 SWITCH HANDLE COVER SET |
| 33 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 34 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 35 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 36 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 37 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 38 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 39 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 40 | 156443-5 | Makita 156443-5 MOTOR HOUSING 6013BR |
| 41 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 42 | 181162-4 | Makita 181162-4 HANDLE SET |
| 43 | 815091-6 | Makita 815091-6 NAME PLATE 6013BR |
| 44 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 45 | 181021-2 | Makita 181021-2 Carbon Brushes CB-51 1901 1902 1923B N1932B 4014B 6300L 9030 |
| 46 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 47 | 181163-2 | Makita 181163-2 SWITCH HANDLE COVER SET |
| 48 | 181162-4 | Makita 181162-4 HANDLE SET |
