All parts of Makita 5903R: 82 positions on 1 sheet

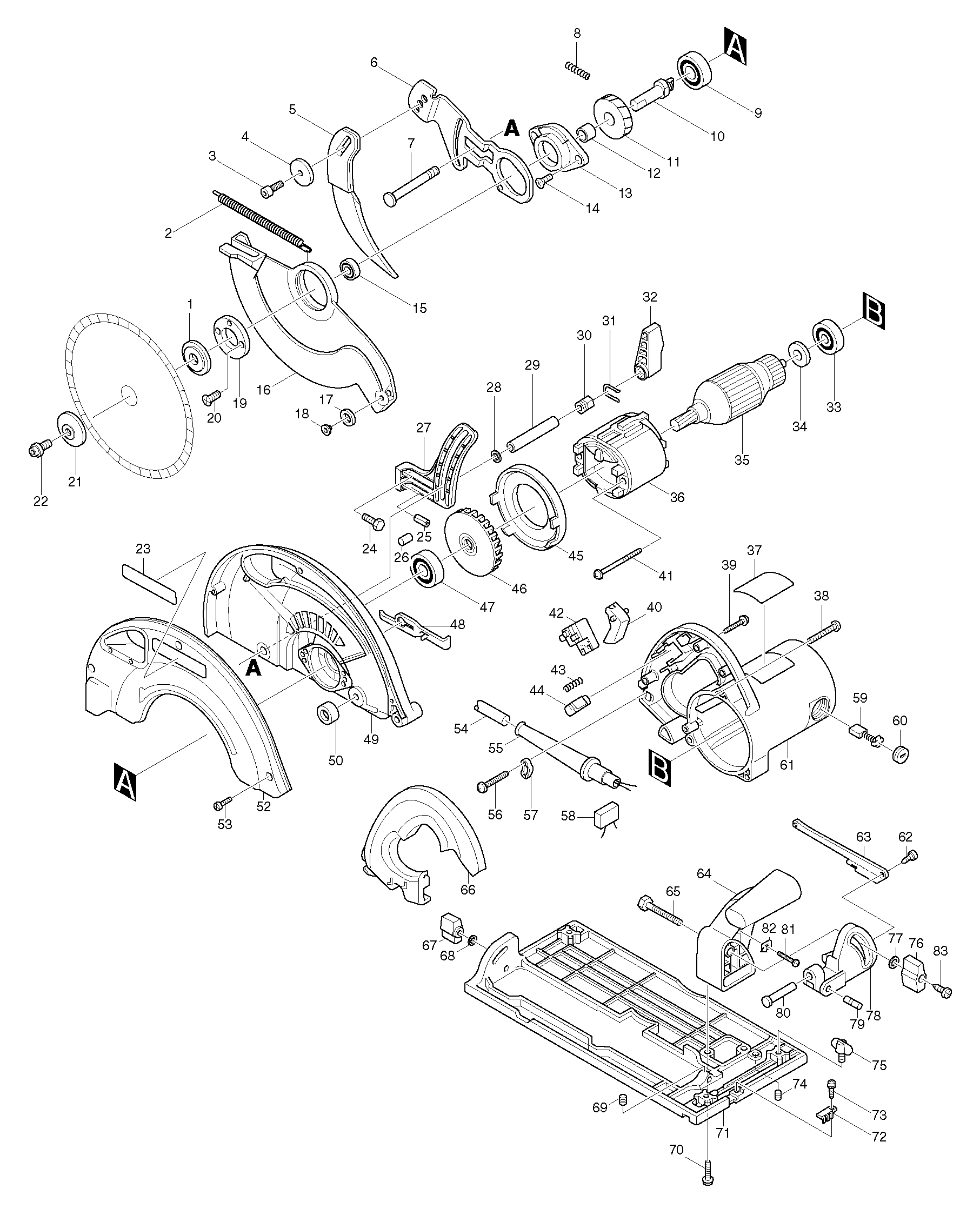

Sheet 1: Makita 5903R parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 224302-2 | Makita 224302-2 Inner Flange for 42 5903R, N5900B |
| 2 | 231798-0 | Makita 231798-0 Tension Spring 5 |
| 3 | 922422-3 | Makita 922422-3 HEX. SOCKET HEAD BOLT M8X |
| 4 | 267123-9 | Makita 267123-9 FLAT WASHER 8 |
| 5 | 165092-7 | Makita 165092-7 RIVING KNIFE |
| 6 | 344104-1 | |
| 7 | 266019-1 | Makita 266019-1 CAP SQUARE NECK BOLT M8X9 |
| 8 | 233084-5 | Makita 233084-5 COMPRESSION SPRING 12 FOR HR2410 |
| 9 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 10 | 322662-7 | Makita 322662-7 SPINDLE 5903R |
| 11 | 226422-8 | Makita 226422-8 HELICAL GEAR 39 |
| 12 | 257184-7 | Makita 257184-7 RING 16 |
| 13 | 316564-7 | Makita 316564-7 BEARING BOX |
| 14 | 265031-8 | Makita 265031-8 COUNTERSUNK NECK BOLT M6*20, N5900B |
| 15 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 16 | 316563-9 | Makita 316563-9 SAFETY COVER |
| 17 | 415438-0 | Makita 415438-0 ROLLER 20, 5740NB |
| 18 | 415437-2 | Makita 415437-2 ROLLER PIN 6, 5740NB |
| 19 | 285677-4 | Makita 285677-4 BEARING RETAINER 30-55 |
| 20 | 912222-9 | Makita 912222-9 COUNTERSUNK HEAD M5X16, M926 |
| 21 | 224301-4 | Makita 224301-4 OUTER FLANCE 42, 5903R |
| 22 | 265408-7 | Makita 265408-7 HEX. SOCKET HEAD BOLT M8X |
| 23 | 819034-0 | Makita 819034-0 TRADE MARK LABEL |
| 24 | 921342-8 | Makita 921342-8 HEX. BOLT M6X25 |
| 25 | 951210-1 | Makita 951210-1 SPRING PIN 6-20 |
| 26 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 27 | 316557-4 | Makita 316557-4 DEPTH GAUGE, 5903R |
| 28 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 29 | 331432-3 | Makita 331432-3 PIPE 9 |
| 30 | 252134-7 | Makita 252134-7 HEX NUT, 5903R |
| 31 | 231955-0 | Makita 231955-0 RING SPRING 12, N5900B |
| 32 | 272230-5 | Makita 272230-5 Lever 54 for N5900B |
| 33 | 211056-0 | Makita 211056-0 BALL BEARING 629LLB |
| 34 | 681633-6 | Makita 681633-6 INSULATION WASHER |
| 35 | 516578-8 | Makita 516578-8 Armature Ass'y 220V for 5903R |
| 36 | 636048-2 | |
| 37 | 858222-4 | Makita 858222-4 NAME PLATE 5903R |
| 38 | 266037-9 | Makita 266037-9 TAPPING SCREW BIND CT 5X4 |
| 39 | 266119-7 | Makita 266119-7 TAPPING SCREW FLANGE PF 4 X25 |
| 40 | 415439-8 | Makita 415439-8 SWITCH LEVER |
| 41 | 266109-0 | Makita 266109-0 TAPPING SCREW FLANGE PF 5 X65 |
| 42 | 651923-1 | Makita 651923-1 Switch TG70B for LS1040 |
| 43 | 231230-4 | Makita 231230-4 COMPRESSION SPRING 4 |
| 44 | 415440-3 | Makita 415440-3 LOCK-OFF BUTTON |
| 45 | 415436-4 | Makita 415436-4 BAFFLE PLATE |
| 46 | 241868-7 | Makita 241868-7 FAN 82 |
| 47 | 211227-9 | Makita 211227-9 BALL BEARING 6002DDW |
| 48 | 344108-3 | Makita 344108-3 SHAFT LOCK |
| 49 | 152452-2 | Makita 152452-2 BLADE CASE COMPLETE |
| 50 | 262060-2 | Makita 262060-2 RUBBER RING 10 |
| 52 | 316562-1 | Makita 316562-1 BLADE CASE COVER |
| 53 | 266036-1 | Makita 266036-1 TAPPING SCREW BIND CT 5X2 |
| 54 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 55 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 56 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 57 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 58 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 59 | 191953-5 | Old code 191953-5 |
| 60 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 61 | 159960-4 | Makita 159960-4 MOTOR HOUSING COMPLETE |
| 62 | 265028-7 | Makita 265028-7 + PAN HEAD SCREW M4X11 |
| 63 | 344107-5 | Makita 344107-5 LINK |
| 64 | 415432-2 | Makita 415432-2 ANGULAR PLATE GUIDE |
| 65 | 921477-5 | Makita 921477-5 HEX. BOLT M8X55 |
| 66 | 415431-4 | Makita 415431-4 HANDLE COVER |
| 67 | 252624-0 | Makita 252624-0 WING NUT, 5740NB |
| 68 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 69 | 265993-0 | Makita 265993-0 SET SCREW M4X5 |
| 70 | 266112-1 | |
| 71 | 316556-6 | Makita 316556-6 Base for 5903R |
| 72 | 415433-0 | Makita 415433-0 TOP GUIDE FOR |
| 73 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 74 | 266039-5 | Makita 266039-5 HEX. SOCKET HEAD SCREW M6 X6 |
| 75 | 265701-9 | Makita 265701-9 THUMB SCREW M6X14, 5604R |
| 76 | 252626-6 | Makita 252626-6 WING NUT |
| 77 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 78 | 316558-2 | Makita 316558-2 ANGULAR PLATE, 5903R |
| 79 | 256231-1 | Makita 256231-1 PIN 6 |
| 80 | 256692-5 | Makita 256692-5 PIN 8 |
| 81 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 82 | 816128-2 | Makita 816128-2 POSITION PLATE, LS1013 |
| 83 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
