Makita 5801B
Makita 5801B: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 5801B: 56 positions on 1 sheet

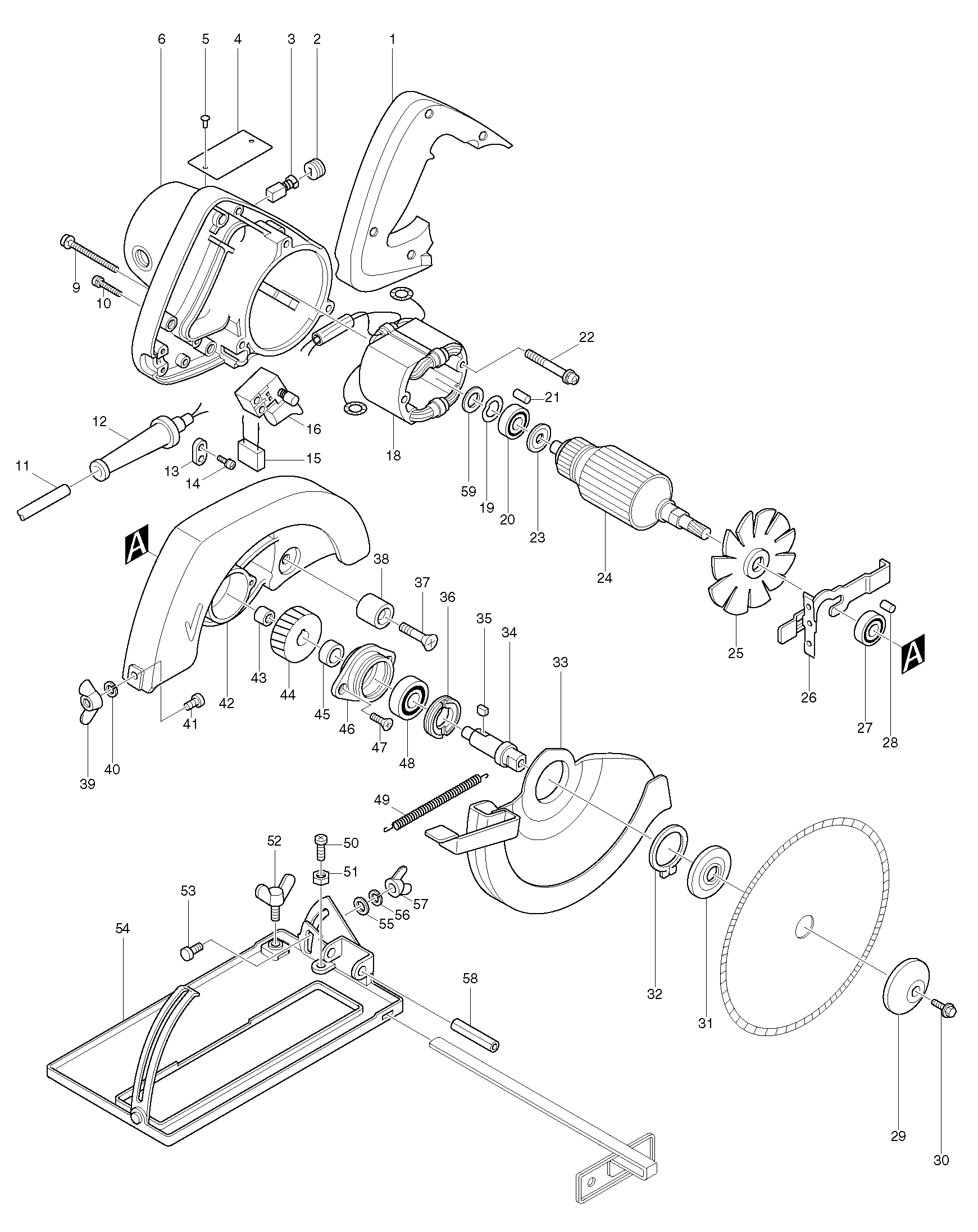

Sheet 1: Makita 5801B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 411324-3 | Makita 411324-3 HANDLE COVER |
| 2 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 3 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 4 | 815026-7 | Makita 815026-7 NAME PLATE 5801B |
| 5 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 6 | 157342-4 | Makita 157342-4 MOTOR HOUSING COMPLETE |
| 9 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 10 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 11 | 666066-6 | Makita 666066-6 POWER S.CORD HD-21 CORD, 9557PB |
| 12 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 13 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 14 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 15 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 16 | 651236-0 | OTHR Makita 651236-0 SWITCH C2M-M1T |
| 18 | 522145-9 | Makita 522145-9 FIELD ASS Y 220V |
| 19 | 253936-4 | Makita 253936-4 WAVE WASHER 15 |
| 20 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 21 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 22 | 911285-2 | Makita 911285-2 PAN HEAD SCREW M5X60 |
| 23 | 681603-5 | Makita 681603-5 LEVY |
| 24 | 512469-1 | Makita 512469-1 ARMATURE ASS Y 220V |
| 25 | 241091-4 | Makita 241091-4 FAN 86 SR1600 |
| 26 | 163097-1 | Makita 163097-1 SPINDLE LOCK |
| 27 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 28 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 29 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
| 30 | 224011-3 | Makita 224011-3 OUTER FLANGE 45 |
| 31 | 224180-0 | Makita 224180-0 Inner Flange 45 for 5606B 5604R 5600DW |
| 32 | 961155-5 | Makita 961155-5 RETAINING PIN S-38, 5806B |
| 33 | 164412-2 | Makita 164412-2 SAFETY COVER |
| 34 | 325079-3 | Makita 325079-3 SPINDLE |
| 35 | 254011-9 | Makita 254011-9 WOOD RUFF KEY 4, GA7011C |
| 36 | 285802-7 | Makita 285802-7 BEARING RETAINER 19-33 |
| 37 | 251224-3 | Makita 251224-3 COUNTERSUNK HEAD SCREW M6 X28 |
| 38 | 262501-8 | Makita 262501-8 RUBBER SLEEVE 6 |
| 39 | 934301-3 | Makita 934301-3 WING NUT M6, 5806B |
| 40 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 41 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 42 | 152220-3 | Makita 152220-3 BLADE CASE COMPLETE |
| 43 | 212004-2 | Makita 212004-2 NEEDLE BEARING 810 |
| 44 | 221602-1 | Makita 221602-1 HELICAL GEAR 44 |
| 45 | 257012-6 | |
| 46 | 312261-3 | Makita 312261-3 BEARING BOX |
| 47 | 912122-3 | Makita 912122-3 COUNTERSUNK HEAD SCREW M4 X14 |
| 48 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 49 | 231703-7 | Makita 231703-7 TENSION SPRING 5 |
| 50 | 911227-6 | Makita 911227-6 PAN HEAD SCREW M5X18 |
| 51 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 52 | 924306-1 | Makita 924306-1 WING BOLT M6*10, 2414NB |
| 53 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 54 | 133150-7 | Makita 133150-7 BASE ASS Y |
| 55 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 56 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 57 | 934301-3 | Makita 934301-3 WING NUT M6, 5806B |
| 58 | 951225-8 | Makita 951225-8 SPRING PIN 6-40, 5007NB |
| 59 | 253707-9 | Makita 253707-9 FLAT WASHER 16 |
