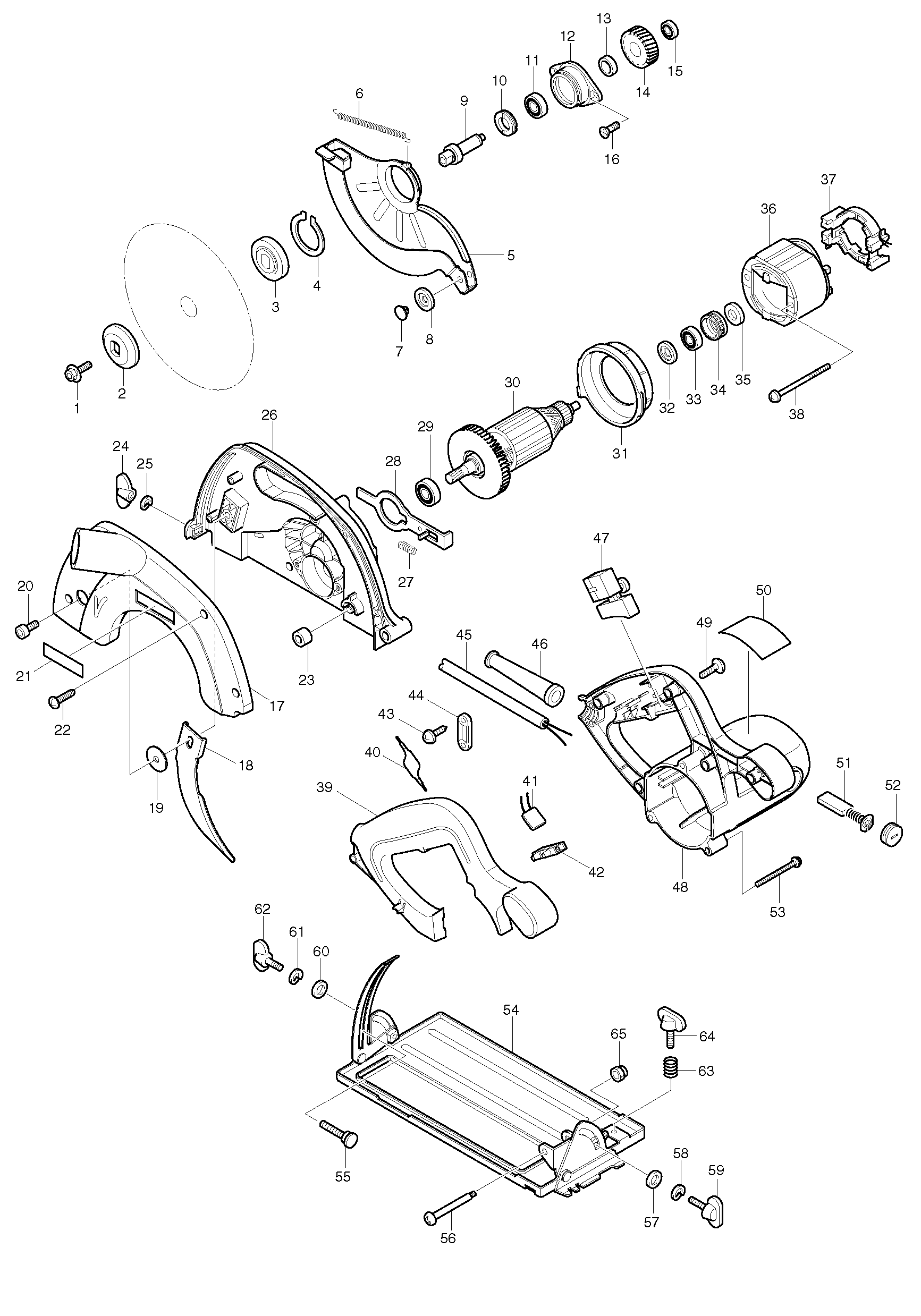

Sheet 1: Makita 5604R parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266024-8 | Makita 266024-8 HEX.SOCKET HEAD BOLT M6*20, 5806B |
| 2 | 224329-2 | Makita 224329-2 Outer Flange 45 for 5604R 5606B |
| 3 | 224180-0 | Makita 224180-0 Inner Flange 45 for 5606B 5604R 5600DW |
| 4 | 961155-5 | Makita 961155-5 RETAINING PIN S-38, 5806B |
| 5 | 165256-3 | Makita 165256-3 Safety Cover for 5604R |
| 6 | 231821-1 | Makita 231821-1 Tension Spring 3 for SS610D 5404R BSS610 BSS611 |
| 7 | 415437-2 | Makita 415437-2 ROLLER PIN 6, 5740NB |
| 8 | 415438-0 | Makita 415438-0 ROLLER 20, 5740NB |
| 9 | 322838-6 | Makita 322838-6 SPINDLE, 5806B |
| 10 | 285802-7 | Makita 285802-7 BEARING RETAINER 19-33 |
| 11 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 12 | 316766-5 | Makita 316766-5 BEARING BOX |
| 13 | 257173-2 | Makita 257173-2 RING 12, 5806B |
| 14 | 226467-6 | Makita 226467-6 HELICAL GEAR 47, 5606B |
| 15 | 211014-6 | Makita 211014-6 BALL BEARING 606 |
| 16 | 265034-2 | Makita 265034-2 COUNTERSUNK HEAD SCREW M5*16, 5606B |
| 17 | 416992-7 | Makita 416992-7 Blade Case Cover for 5604R |
| 18 | 344800-1 | Makita 344800-1 Riving Knife for 5604R |
| 19 | 253783-3 | Makita 253783-3 FLAT WASHER 6 |
| 20 | 922312-0 | Makita 922312-0 Hex Socket Head Bolt M6X12 for 2414NB |
| 21 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 22 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 23 | 262511-5 | Makita 262511-5 RUBBER SLEEVE 6, LS1040 |
| 24 | 252639-7 | Makita 252639-7 WING NUT M6 5604R |
| 25 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 26 | 151635-1 | Makita 151635-1 BLADE CASE COMPLETE 5604R, 5604R |
| 27 | 233092-6 | Makita 233092-6 COMPRESSION SPRING 5, 5806B |
| 28 | 344317-4 | Makita 344317-4 SHAFT LOCK, 5806B |
| 29 | 211097-6 | Makita 211097-6 BALL BEARING 6000LLB, 5806B |
| 30 | 510044-7 | Makita 510044-7 Armature Assembly 220V for 5606 5606B 5604 5604R |
| 31 | 415873-2 | Makita 415873-2 BAFFLE PLATE, 5806B |
| 32 | 681654-8 | Makita 681654-8 INSULATION WASHER, 5604R |
| 33 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 34 | 421720-7 | Makita 421720-7 Rubber Ring for GA5021C GA6021C GA7010C GA9010C |
| 35 | 261115-0 | Makita 261115-0 RUBBER WASHER 13 |
| 36 | 634154-7 | Makita 634154-7 Field 240V for 5606B 5606 5604 |
| 37 | 632673-7 | Makita 632673-7 SUPPORT COMPLETE 5604R |
| 38 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 39 | 416991-9 | Makita 416991-9 HANDLE COVER, 5604R |
| 40 | 646077-7 | Makita 646077-7 CHOKE COIL, 5806B |
| 41 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 42 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 43 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 44 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 45 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 46 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 47 | 651291-2 | Makita 651291-2 Switch SGES115C-5 for 5604R |
| 48 | 151636-9 | Makita 151636-9 MOTOR HOUSING COMPLETE 5604R, 5604R |
| 49 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 50 | 851929-1 | Makita 851929-1 NAME PLATE 5604R |
| 51 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 52 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 53 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 54 | 168329-1 | Makita 168329-1 BASE, 5604R |
| 55 | 265950-8 | Makita 265950-8 CAP SQUARE NECK BOLT M6X26 5604R |
| 56 | 265056-2 | Makita 265056-2 PAN HEAD SCREW M5, 5604R |
| 57 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 58 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 59 | 265701-9 | Makita 265701-9 THUMB SCREW M6X14, 5604R |
| 60 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 61 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 62 | 265701-9 | Makita 265701-9 THUMB SCREW M6X14, 5604R |
| 63 | 231316-4 | Makita 231316-4 COMPRESSION SPRING 7 |
| 64 | 265701-9 | Makita 265701-9 THUMB SCREW M6X14, 5604R |
| 65 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
