Makita 5603R
Makita 5603R: exploded parts diagram, 1 sheet, 73 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 5603R: 73 positions on 1 sheet

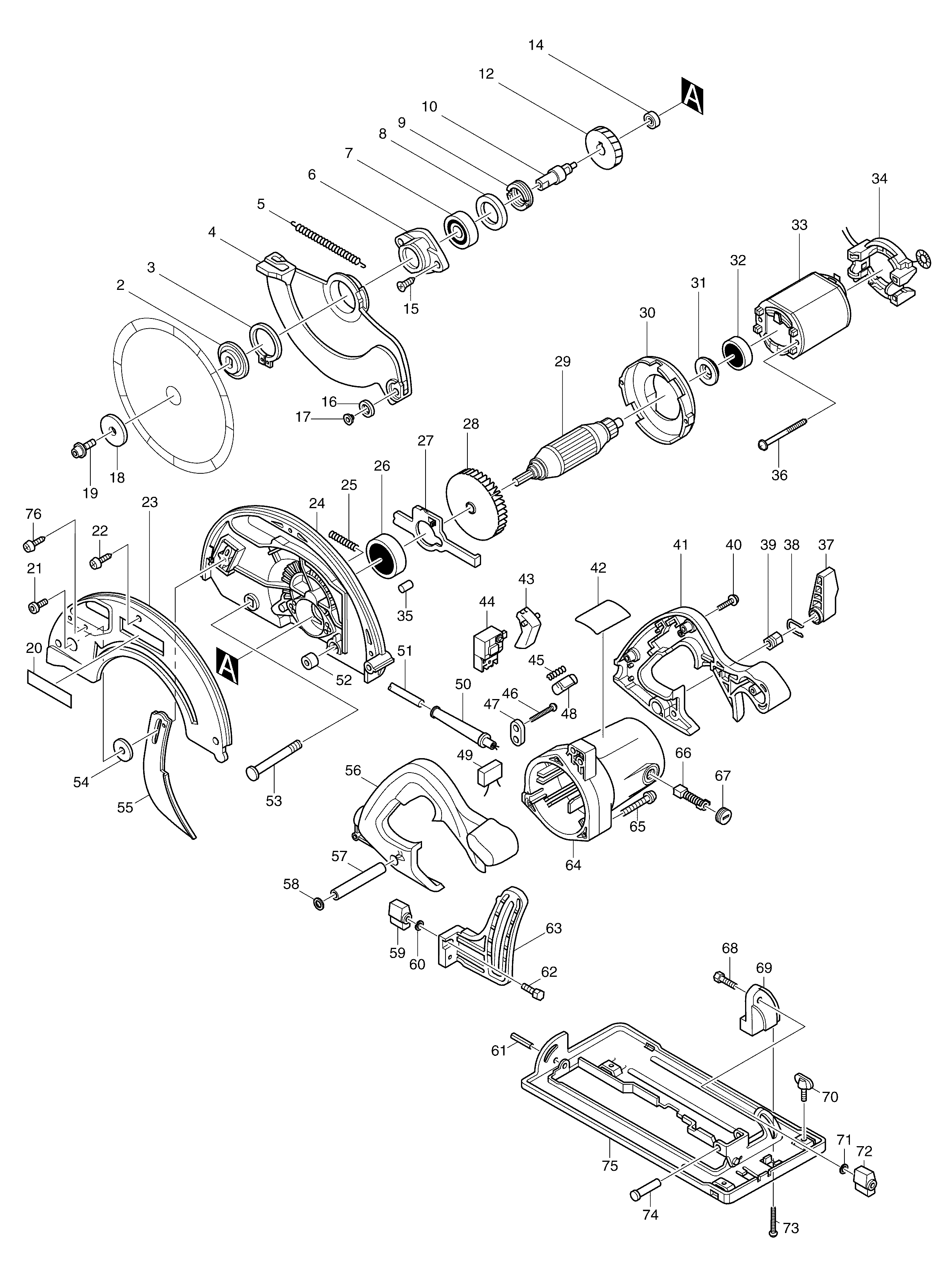

Sheet 1: Makita 5603R parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 224311-1 | Makita 224311-1 INNER FLANGE 40 |
| 3 | 961156-3 | Makita 961156-3 RETAINING RING S-40 |
| 4 | 316598-0 | Makita 316598-0 SAFETY COVER |
| 5 | 231797-2 | Makita 231797-2 TENSION SPRING 4 |
| 6 | 316683-9 | Makita 316683-9 BEARING BOX |
| 7 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 8 | 267126-3 | Makita 267126-3 FLAT WASHER 22, GD0600 |
| 9 | 285831-0 | Makita 285831-0 BEARING RETAINER 19-34, 5603R |
| 10 | 322675-8 | Makita 322675-8 SPINDLE |
| 12 | 226425-2 | Makita 226425-2 HELICAL GEAR 41 |
| 14 | 211019-6 | Makita 211019-6 BALL BEARING 626, EBH250U |
| 15 | 265034-2 | Makita 265034-2 COUNTERSUNK HEAD SCREW M5*16, 5606B |
| 16 | 415438-0 | Makita 415438-0 ROLLER 20, 5740NB |
| 17 | 415437-2 | Makita 415437-2 ROLLER PIN 6, 5740NB |
| 18 | 224306-4 | Makita 224306-4 OUTER FLANGE 40 |
| 19 | 266024-8 | Makita 266024-8 HEX.SOCKET HEAD BOLT M6*20, 5806B |
| 20 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 21 | 922312-0 | Makita 922312-0 Hex Socket Head Bolt M6X12 for 2414NB |
| 22 | 266042-6 | Makita 266042-6 TAPPING SCREW BIND.CT 4*20, LS1016L |
| 23 | 316687-1 | Makita 316687-1 BLADE CASE COVER |
| 24 | 152477-6 | Makita 152477-6 BLADE CASE COMPLETE |
| 25 | 233092-6 | Makita 233092-6 COMPRESSION SPRING 5, 5806B |
| 26 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 27 | 344114-8 | Makita 344114-8 SHAFT LOCK |
| 28 | 241876-8 | Makita 241876-8 FAN 76 HR4000C |
| 29 | 516223-5 | Makita 516223-5 Armature Ass'y 220V for 5603R |
| 30 | 415503-5 | Makita 415503-5 BAFFLE PLATE |
| 31 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 32 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 33 | 634233-1 | Makita 634233-1 FIELD 220V |
| 34 | 632503-2 | Makita 632503-2 SUPPORT COMPLETE |
| 35 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 36 | 266110-5 | Makita 266110-5 TAPPING SCREW FLANGE PF5X |
| 37 | 272230-5 | Makita 272230-5 Lever 54 for N5900B |
| 38 | 231955-0 | Makita 231955-0 RING SPRING 12, N5900B |
| 39 | 252134-7 | Makita 252134-7 HEX NUT, 5903R |
| 40 | 266111-3 | Makita 266111-3 TAPPING SCREW FLANGE PF 5 X25 |
| 41 | 182675-8 | Makita 182675-8 HANDLE SET |
| 42 | 858231-3 | |
| 43 | 415439-8 | Makita 415439-8 SWITCH LEVER |
| 44 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 45 | 231230-4 | Makita 231230-4 COMPRESSION SPRING 4 |
| 46 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 47 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 48 | 415440-3 | Makita 415440-3 LOCK-OFF BUTTON |
| 49 | 645118-6 | Makita 645118-6 NOISE SUPPRESSOR |
| 50 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 51 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 52 | 262511-5 | Makita 262511-5 RUBBER SLEEVE 6, LS1040 |
| 53 | 266019-1 | Makita 266019-1 CAP SQUARE NECK BOLT M8X9 |
| 54 | 253783-3 | Makita 253783-3 FLAT WASHER 6 |
| 55 | 165093-5 | Makita 165093-5 RIVING KNIFE 5603R |
| 56 | 182675-8 | Makita 182675-8 HANDLE SET |
| 57 | 331432-3 | Makita 331432-3 PIPE 9 |
| 58 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 59 | 252624-0 | Makita 252624-0 WING NUT, 5740NB |
| 60 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 61 | 951204-6 | Makita 951204-6 SPRING PIN 6-16 |
| 62 | 921332-1 | Makita 921332-1 HEX. BOLT M6X20 |
| 63 | 316597-2 | Makita 316597-2 DEPTH GUIDE |
| 64 | 159714-9 | Makita 159714-9 MOTOR HOUSING COMPLETE |
| 65 | 911278-9 | Makita 911278-9 PAN HEAD SCREW M5X55 |
| 66 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 67 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 68 | 921332-1 | Makita 921332-1 HEX. BOLT M6X20 |
| 69 | 415443-7 | Makita 415443-7 ANGULAR PLATE GUIDE |
| 70 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 71 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 72 | 252624-0 | Makita 252624-0 WING NUT, 5740NB |
| 73 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 74 | 256690-9 | Makita 256690-9 PIN 10 |
| 75 | 163358-9 | Makita 163358-9 BASE |
| 76 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
