Bosch 550W DWAS 38-570

Bosch 550W DWAS 38-570 pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 112 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 550W DWAS 38-570: 112 positions on 1 sheet

Bosch 550W DWAS 38-570 parts list (1 sheet)

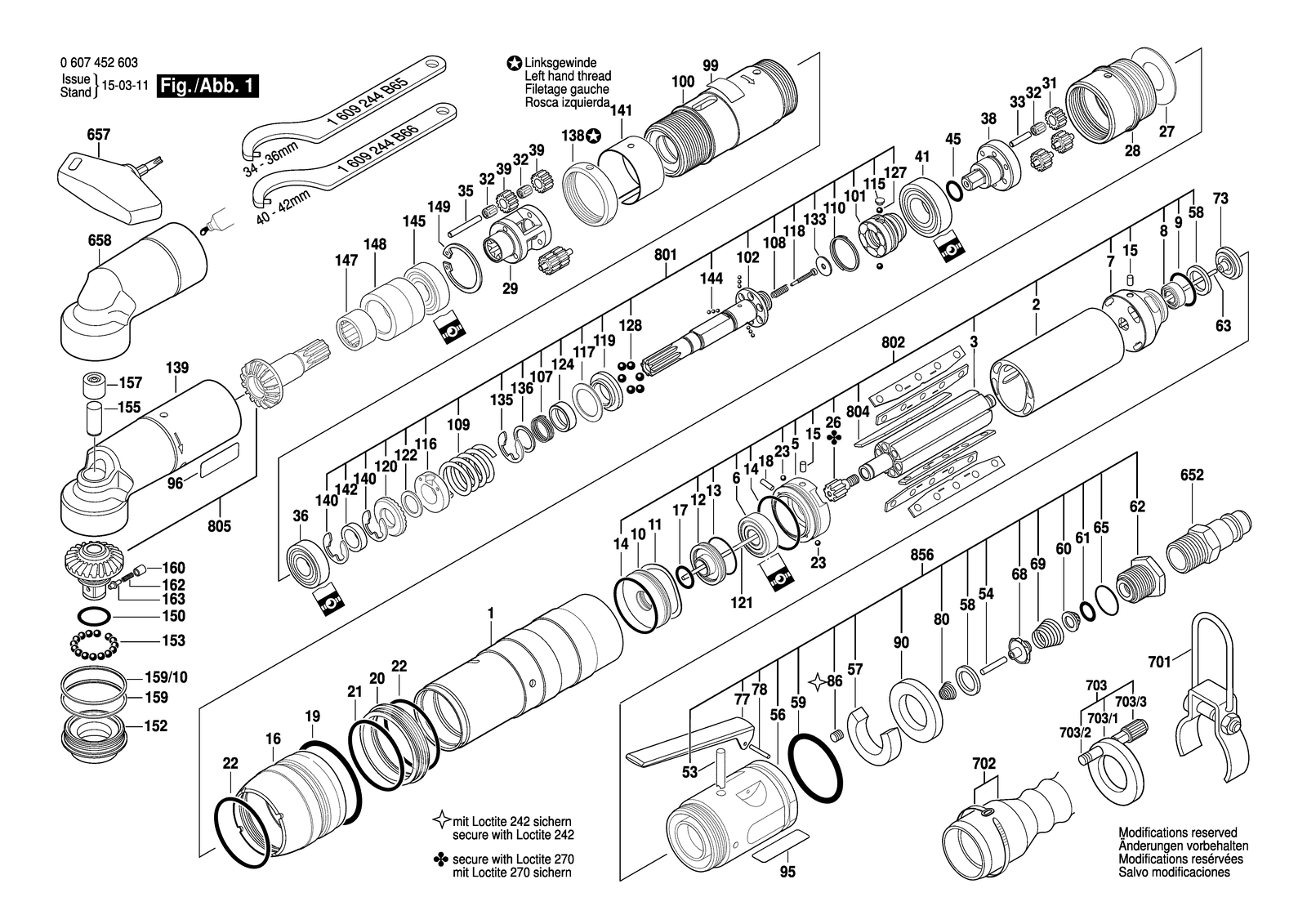

Bosch 550W DWAS 38-570 parts diagram, sheet 1
No.Part numberPart name
13600760113Motor Housing
103605700180Bearing Flange
1003605125062Housing
1013606445043Clutch Element
1023603124030Output Shaft
1073604615004Compression Spring
1083604610057Compression Spring
1093604619020Compression Spring Blue
113609202A05Shim
1103600224053Retaining ring
1153601023011Sealing plate
1163600134016Setting Ring
1171600101023Plain Washer Thick 0,5 MM
1183603003005Rod
1193600190038Support Disc
123605700179Bearing Flange
1203603344046Catch Disk
1213603201077Straight Pin
1223600101052Shim washer
1243600250004Ring
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1281903230008Ball 4,5 MM III DIN 5401-ST
131610210075O-Ring 20,0X1,5 MM
1333600190024Washer
1353600224059Retaining ring
1362600101513Plain Washer
1383603344062Threaded Ring
1393605106093Spindle Housing
141610210100O-Ring 27,0X1,5 MM
1402916080012Locking washer DIN 6799-9-FST
1413600400032Protection Sleeve
1423600200055Spacer Ring
1441903230002Ball 2 MM III DIN 5401 St
1453600905015Groove ball bearing
1473600917020Needle bearing
1483608874921Spacer
1492916660011Spring retaining ring DIN 472-28X1,2 MM
153609201579Straight Pin
1501610210116O-Ring 14,0X2,0 MM
1523605700190Bearing Flange
1531903230008Ball 4,5 MM III DIN 5401-ST
1552917530174Straight Pin
1573608874669Needle bearing INA 8,00X12,00X10,00
1593608874923Shim 0,1
159/103608874924Shim 0,05
163600409010Sleeve
1603600320016Guide Sleeve
1621604611004Compression Spring
1631603124060Pressure Spindle
173600210003O-Ring 15,6X1,8 MM
182917850055Straight Pin DIN 28734-2,5X8
191610210128O-Ring 35,0X3,0 MM
23604090064Stator
203600409011Sealing Sleeve
213600210006O-Ring 41,0X1,78 MM
223600210022O-Ring 39,0X2,0 MM
231903230026Ball 1,5 Mmiiidin 5401-ST
263606300000Pinion
273600101001Stop Disc
283606334095Ring Gear
293606337219Planetary-Gear Carrier
33604220159Rotor
313606316098Cylindrical Gear Z=12
323600913000Needle-Roller Assembly Ina K3X5X7
333603201000Needle Roller
352917530083Straight Pin DIN 6325-3M6X24
363600905023Groove ball bearing
383606337220Planetary-Gear Carrier
393606316099Cylindrical Gear Z=16
413600905027Groove ball bearing
452600210001O-Ring 7,65X1,78 MM
53605700175Bearing Flange
533603201085Bolt
542917530081Straight Pin DIN 6325-3M6X20
563605190195Valve Housing
573601010046Non-woven fabric
583600209004Valve Bushing
591610210087O-Ring 33,0X3,5 MM
63600905039Groove ball bearing 9X24X7 MM
603600002000Strainer
611900210306O-Ring 10X2 MM
623603458008Fitting
633603100030Connecting Rod
653600210036O-Ring 16X1,25 MM
6523603386063Hose fitting
6573607950027Screwdriver
6583609202A29Protective Cap
683603231017Valve Cone
693604616008Compression Spring
73605700191Bearing Flange
7013601310000Suspension Loop
7023607000027Air Hose
7033609202A08Pressure Monitor
703/13609202A07Silencer
703/23609202A06Distance Pipe
703/32121004050Threaded joint
733608750040Valve Cone
773601902001Control Lever
782917710039Grooved Pin DIN 8742-2X16
81900905030Groove ball bearing 7X14X5
803604643010Compression Spring
8013609202982Assembly Of Service Parts
8023609202A19Assembly Of Service Parts
8043609202988Assembly Of Service Parts
8053609202B05Bevel gear
8563609202989Assembly Of Service Parts
862912041147Set screw M 5X5-DIN 913-45H
93600210003O-Ring 15,6X1,8 MM
903600105013Silencer
95160111A3HFNameplate
963601110331Manufacturer's nameplate
993601119236Reference Plate
