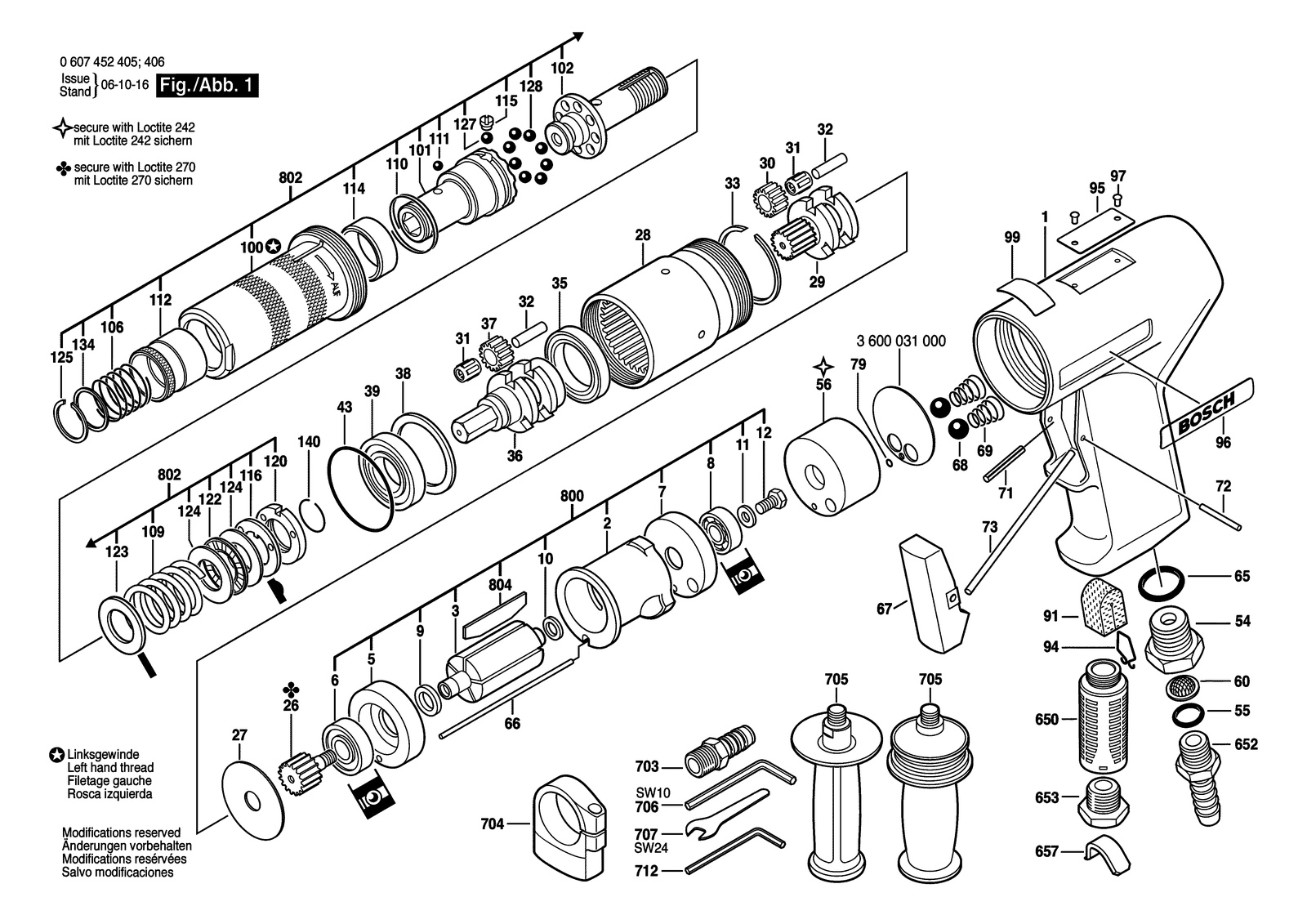

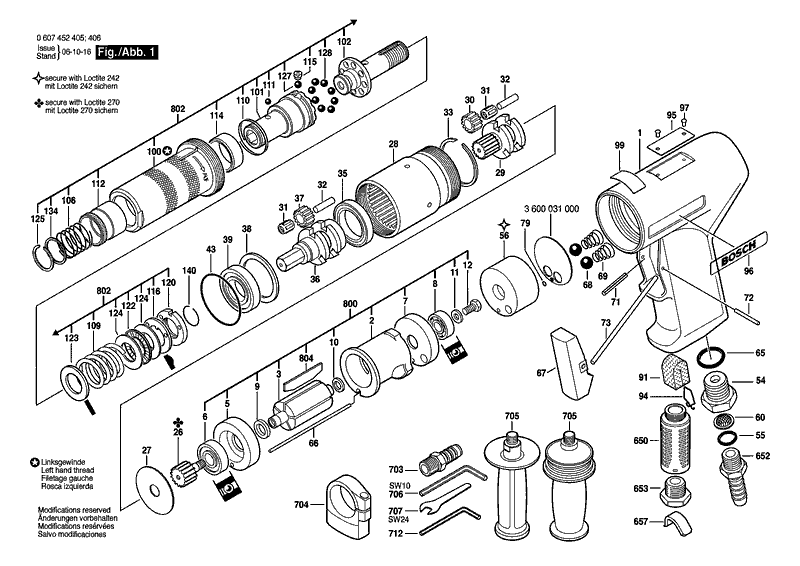

Bosch 550 WATT-SERIE pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 156 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 550 WATT-SERIE: 156 positions on 1 sheet
Bosch 550 WATT-SERIE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108027 | Motor Housing |
| 1 | 3605108027 | Motor Housing |
| 10 | 3600202004 | Spacer Ring |
| 10 | 3600202004 | Spacer Ring |
| 100 | 3605125016 | Housing |
| 100 | 3605125016 | Housing |
| 101 | 3606445031 | Clutch Element |
| 101 | 3606445031 | Clutch Element |
| 102 | 3606122013 | Drive Shaft |
| 102 | 3606122013 | Drive Shaft |
| 106 | 3604615001 | Compression Spring |
| 106 | 3604615001 | Compression Spring |
| 109 | 3604619004 | Compression Spring |
| 109 | 3604619000 | Compression Spring Ø 4 MM |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 11 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 110 | 3604601001 | Retaining ring |
| 110 | 3604601001 | Retaining ring |
| 111 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 111 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 112 | 3600311015 | Clamping Sleeve |
| 112 | 3600311015 | Clamping Sleeve |
| 114 | 3600301003 | Sintered-Metal Bushing |
| 114 | 3600301003 | Sintered-Metal Bushing |
| 115 | 3600001000 | Sealing plate |
| 115 | 3600001000 | Sealing plate |
| 116 | 3600134000 | Adjusting Disc |
| 116 | 3600134000 | Adjusting Disc |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 120 | 3603301004 | Round Nut |
| 120 | 3603301004 | Round Nut |
| 122 | 3600921000 | Roller Thrust Bearing |
| 122 | 3600921000 | Roller Thrust Bearing |
| 123 | 3600103004 | Support Disc |
| 123 | 3600103004 | Support Disc |
| 124 | 3600101002 | Support Disc |
| 124 | 3600101002 | Support Disc |
| 125 | 3600224001 | Retaining ring |
| 125 | 3600224001 | Retaining ring |
| 127 | 1903230009 | Ball DIN 5401-5 G28 |
| 127 | 1903230009 | Ball DIN 5401-5 G28 |
| 128 | 1903230011 | Ball DIN 5401-6 G28 |
| 128 | 1903230011 | Ball DIN 5401-6 G28 |
| 134 | 3600101055 | Plain Washer |
| 134 | 3600101055 | Plain Washer |
| 140 | 2916600008 | Retaining ring 14 DIN 9045 |
| 140 | 2916600008 | Retaining ring 14 DIN 9045 |
| 2 | 3604090009 | Stator 550W |
| 2 | 3604090009 | Stator 550W |
| 26 | 3606300156 | Pinion |
| 26 | 3606300155 | Pinion |
| 27 | 3600101004 | Stop Disc |
| 27 | 3600101004 | Stop Disc |
| 28 | 3606334002 | Ring Gear Z=46 |
| 28 | 3606334002 | Ring Gear Z=46 |
| 29 | 3606337010 | Planetary-Gear Carrier |
| 29 | 3606337011 | Planetary-Gear Carrier |
| 3 | 3604220005 | Rotor |
| 3 | 3604220005 | Rotor |
| 30 | 3606316102 | Cylindrical Gear |
| 30 | 3606316109 | Cylindrical Gear |
| 31 | 3600910000 | Needle-Roller Assembly |
| 31 | 3600910000 | Needle-Roller Assembly |
| 32 | 3603201005 | Needle Roller |
| 32 | 3603201005 | Needle Roller |
| 33 | 3600224004 | Retaining ring |
| 33 | 3600224004 | Retaining ring |
| 35 | 3600905001 | Groove ball bearing 25X37X7 |
| 35 | 3600905001 | Groove ball bearing 25X37X7 |
| 36 | 3606337034 | Planetary-Gear Carrier |
| 36 | 3606337034 | Planetary-Gear Carrier |
| 37 | 3606316103 | Cylindrical Gear |
| 37 | 3606316103 | Cylindrical Gear |
| 38 | 3600101005 | Stop Disc |
| 38 | 3600101005 | Stop Disc |
| 39 | 3600905025 | Groove ball bearing |
| 39 | 3600905025 | Groove ball bearing |
| 43 | 3600210006 | O-Ring 41,0X1,78 MM |
| 43 | 3600210006 | O-Ring 41,0X1,78 MM |
| 5 | 3605700014 | Bearing Flange |
| 5 | 3605700014 | Bearing Flange |
| 54 | 3603458008 | Fitting |
| 54 | 3603458008 | Fitting |
| 55 | 1900210306 | O-Ring 10X2 MM |
| 55 | 1900210306 | O-Ring 10X2 MM |
| 56 | 3605190016 | Valve Insert |
| 56 | 3605190016 | Valve Insert |
| 6 | 1900905127 | Groove ball bearing 10X26X8 |
| 6 | 1900905127 | Groove ball bearing 10X26X8 |
| 60 | 3600002000 | Strainer |
| 60 | 3600002000 | Strainer |
| 65 | 3600210003 | O-Ring 15,6X1,8 MM |
| 65 | 3600210003 | O-Ring 15,6X1,8 MM |
| 650 | 3607000073 | Silencer |
| 650 | 3607000073 | Silencer |
| 652 | 2603386002 | Hose fitting |
| 652 | 2603386002 | Hose fitting |
| 653 | 3603462000 | Silencer |
| 653 | 3603462000 | Silencer |
| 657 | 3601329007 | Angle Piece |
| 657 | 3601329007 | Angle Piece |
| 66 | 3604710006 | Straight Pin |
| 66 | 3604710006 | Straight Pin |
| 67 | 3602053001 | Control Lever |
| 67 | 3602053001 | Control Lever |
| 68 | 3603230004 | Ball Ø9 MM |
| 68 | 3603230004 | Ball Ø9 MM |
| 69 | 3604616002 | Compression Spring |
| 69 | 3604616002 | Compression Spring |
| 7 | 3605700012 | Bearing Flange |
| 7 | 3605700012 | Bearing Flange |
| 703 | 3603386001 | Hose fitting Ø 8 MM |
| 703 | 3603386001 | Hose fitting Ø 8 MM |
| 704 | 3608040002 | Support clamp |
| 704 | 3608040002 | Support clamp |
| 705 | 160202509Z | Auxiliary Handle |
| 705 | 16020250A1 | Auxiliary Handle |
| 705 | 160202509Z | Auxiliary Handle |
| 705 | 16020250A1 | Auxiliary Handle |
| 706 | 1907950009 | Offset Screwdriver DIN 911 SW10 |
| 706 | 1907950009 | Offset Screwdriver DIN 911 SW10 |
| 707 | 1907950513 | Single-Head Eng. Wrench DIN 894 SW24 |
| 707 | 1907950513 | Single-Head Eng. Wrench DIN 894 SW24 |
| 71 | 2917601059 | Straight grooved pin 2,5X16 DIN 1473 |
| 71 | 2917601059 | Straight grooved pin 2,5X16 DIN 1473 |
| 712 | 3607950001 | Hexagon-Socket Key |
| 712 | 3607950001 | Hexagon-Socket Key |
| 72 | 2917610083 | Straight Pin 3M6X24 DIN en ISO 2338 |
| 72 | 2917610083 | Straight Pin 3M6X24 DIN en ISO 2338 |
| 73 | 3604710003 | Straight Pin |
| 73 | 3604710003 | Straight Pin |
| 79 | 3600210002 | O-Ring 1,8X1,0 MM |
| 79 | 3600210002 | O-Ring 1,8X1,0 MM |
| 8 | 1900905029 | Ball Bearing 8X22X7 |
| 8 | 1900905029 | Ball Bearing 8X22X7 |
| 800 | 3607031031 | Assembly Of Service Parts |
| 800 | 3607031031 | Assembly Of Service Parts |
| 802 | 3607031113 | Overriding Clutch |
| 802 | 3607031107 | Overriding Clutch |
| 804 | 3607030260 | Assembly Of Service Parts 5 Piece |
| 804 | 3607030260 | Assembly Of Service Parts 5 Piece |
| 9 | 2600200007 | Spacer Ring |
| 9 | 2600200007 | Spacer Ring |
| 91 | 3601010001 | Silencer |
| 91 | 3601010001 | Silencer |
| 94 | 3601250003 | Holding Spring |
| 94 | 3601250003 | Holding Spring |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 97 | 3603133000 | Grooved Nail |
| 97 | 3603133000 | Grooved Nail |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
