Makita 5104S: exploded parts diagram, 1 sheet, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 5104S: 87 positions on 1 sheet

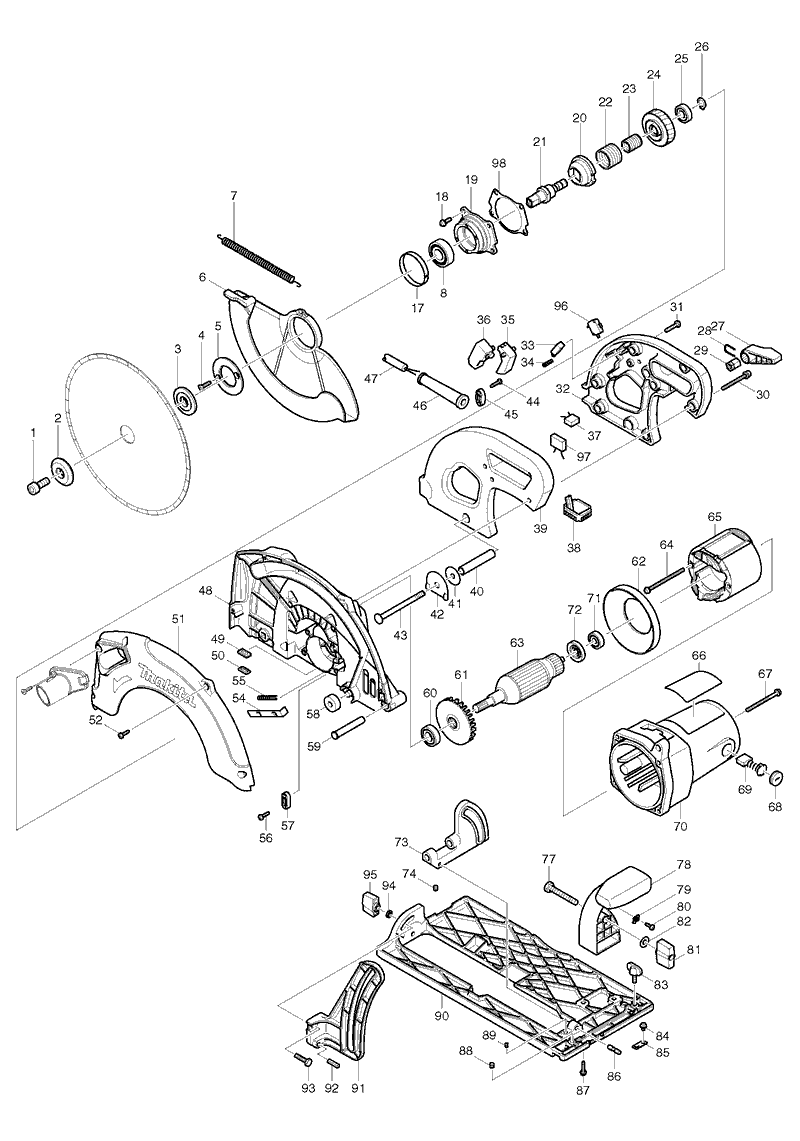

Sheet 1: Makita 5104S parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266083-2 | Makita 266083-2 Hex. Socket Head Bolt M10 X25 |
| 2 | 224325-0 | Makita 224325-0 OUTER FLANGE 45 FOR 5103R |
| 3 | 224326-8 | Makita 224326-8 INNER FLANGE 45 FOR 5103R |
| 4 | 912222-9 | Makita 912222-9 COUNTERSUNK HEAD M5X16, M926 |
| 5 | 285681-3 | Makita 285681-3 BEARING RETAINER 34-62 |
| 6 | 318240-9 | Makita 318240-9 SAFETY COVER |
| 7 | 231850-4 | Makita 231850-4 TENSION SPRING 6 |
| 8 | 211278-2 | Makita 211278-2 BALL BEARING 6203DDW, 9069 |
| 17 | 344303-5 | Makita 344303-5 THICKNESS RING |
| 18 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 19 | 316709-7 | Makita 316709-7 BEARING BOX |
| 20 | 322830-2 | Makita 322830-2 LOCK SLEEVE |
| 21 | 322827-1 | Makita 322827-1 SPINDLE |
| 22 | 231968-1 | Makita 231968-1 LOCK SPRING 27 FOR 5103R |
| 23 | 231969-9 | Makita 231969-9 LOCK SPRING 20 FOR 5103R |
| 24 | 226452-9 | Makita 226452-9 HELICAL GEAR 39 FOR 5103R |
| 25 | 211104-5 | Makita 211104-5 BALL BEARING 6001, 5377MG |
| 26 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 27 | 272230-5 | Makita 272230-5 Lever 54 for N5900B |
| 28 | 231955-0 | Makita 231955-0 RING SPRING 12, N5900B |
| 29 | 252134-7 | Makita 252134-7 HEX NUT, 5903R |
| 30 | 911263-2 | Makita 911263-2 PAN HEAD SCREW M5X40 WR, 4100NH |
| 31 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 32 | 182773-8 | Makita 182773-8 HANDLE SET |
| 33 | 415440-3 | Makita 415440-3 LOCK-OFF BUTTON |
| 34 | 231230-4 | Makita 231230-4 COMPRESSION SPRING 4 |
| 35 | 415439-8 | Makita 415439-8 SWITCH LEVER |
| 36 | 651923-1 | Makita 651923-1 Switch TG70B for LS1040 |
| 37 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 38 | 631209-9 | Makita 631209-9 CONTROLLER 5103R |
| 39 | 182773-8 | Makita 182773-8 HANDLE SET |
| 40 | 331469-0 | Makita 331469-0 PIPE 9 |
| 41 | 267216-2 | Makita 267216-2 FLAT WASHER 8, BO3700 |
| 42 | 232151-3 | Makita 232151-3 LEAF SPRING |
| 43 | 266019-1 | Makita 266019-1 CAP SQUARE NECK BOLT M8X9 |
| 44 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 45 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 46 | 682505-8 | Makita 682505-8 Cord Guard 10-90 for 5806B |
| 47 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 48 | 158612-4 | Makita 158612-4 BLADE CASE COMPL5104R |
| 49 | 443098-8 | Makita 443098-8 FELT |
| 50 | 344263-1 | Makita 344263-1 PLATE |
| 51 | 318237-8 | Makita 318237-8 BLADE CASE COVER |
| 52 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 54 | 344261-5 | Makita 344261-5 SHAFT LOCK |
| 55 | 233084-5 | Makita 233084-5 COMPRESSION SPRING 12 FOR HR2410 |
| 56 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 57 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 58 | 262007-6 | Makita 262007-6 RUBBER RING 8 5103R |
| 59 | 268008-2 | Makita 268008-2 PIN 10 |
| 60 | 211236-8 | Makita 211236-8 Ball Bearing 6002DDW, BO3700 |
| 61 | 241889-9 | Makita 241889-9 FAN 74 |
| 62 | 415768-9 | Makita 415768-9 BAFFLE PLATE |
| 63 | 516653-0 | Makita 516653-0 ARMATURE ASSY FOR |
| 64 | 911944-8 | Makita 911944-8 PAN HEAD SCREW M5X80 |
| 65 | 596318-0 | Makita 596318-0 FIELD ASSY |
| 66 | 864143-0 | Makita 864143-0 5104S NAME PLATE5104S |
| 67 | 911288-6 | Makita 911288-6 PAN HEAD SCREW M5X65 |
| 68 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 69 | 191953-5 | Old code 191953-5 |
| 70 | 158613-2 | Makita 158613-2 MOTORHOUSING COMPL5104 |
| 71 | 210042-8 | Makita 210042-8 BALL BEARING 629LLB, MT410 |
| 72 | 681633-6 | Makita 681633-6 INSULATION WASHER |
| 73 | 318262-9 | Makita 318262-9 ANGULAR PLATE |
| 74 | 266039-5 | Makita 266039-5 HEX. SOCKET HEAD SCREW M6 X6 |
| 77 | 921477-5 | Makita 921477-5 HEX. BOLT M8X55 |
| 78 | 415722-3 | |
| 79 | 816128-2 | Makita 816128-2 POSITION PLATE, LS1013 |
| 80 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 81 | 252626-6 | Makita 252626-6 WING NUT |
| 82 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 83 | 265701-9 | Makita 265701-9 THUMB SCREW M6X14, 5604R |
| 84 | 911109-2 | Makita 911109-2 PAN HEAD SCREW M4*8, 3612 |
| 85 | 415433-0 | Makita 415433-0 TOP GUIDE FOR |
| 86 | 256231-1 | Makita 256231-1 PIN 6 |
| 87 | 266021-4 | Makita 266021-4 TAPPING SCREW PT.5X20 |
| 88 | 266039-5 | Makita 266039-5 HEX. SOCKET HEAD SCREW M6 X6 |
| 89 | 265993-0 | Makita 265993-0 SET SCREW M4X5 |
| 90 | 318238-6 | Makita 318238-6 BASE 5104 |
| 91 | 318239-4 | Makita 318239-4 DEPTH GUIDE |
| 92 | 951210-1 | Makita 951210-1 SPRING PIN 6-20 |
| 93 | 921342-8 | Makita 921342-8 HEX. BOLT M6X25 |
| 94 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 95 | 252624-0 | Makita 252624-0 WING NUT, 5740NB |
| 96 | 651941-9 | Makita 651941-9 SWITCH, LS1040 |
| 97 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 98 | 442142-8 | Makita 442142-8 GASKET5104S |
