Makita 5016
Makita 5016: exploded parts diagram, 1 sheet, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 5016: 74 positions on 1 sheet

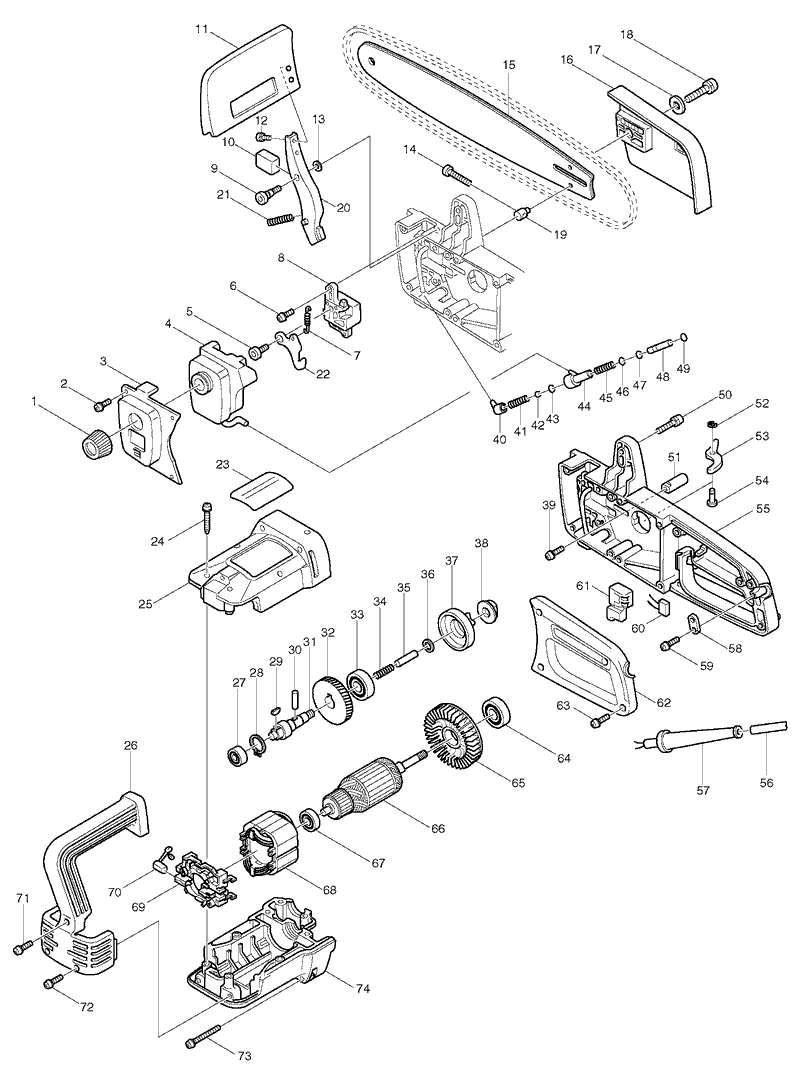

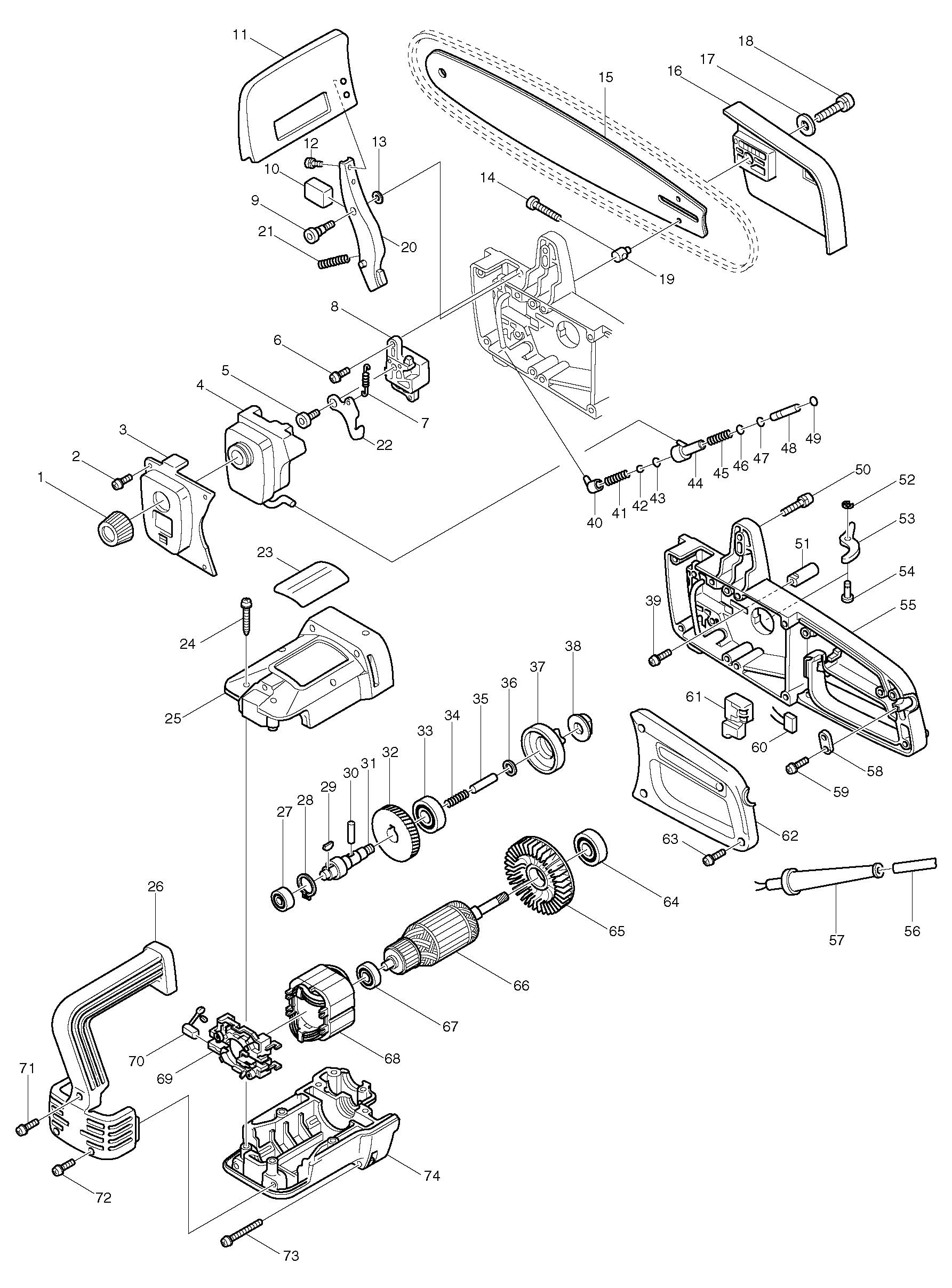

Sheet 1: Makita 5016 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 242042-0 | Makita 242042-0 CAP |
| 2 | 265926-5 | Makita 265926-5 TAPPING SCREW 4X16 |
| 3 | 159253-9 | Makita 159253-9 MAIN HOUSING COVER COMPLE TE |
| 4 | 150272-8 | Makita 150272-8 OIL VESSEL |
| 5 | 265928-1 | Makita 265928-1 HEX. SOCKET HEAD BOLT M8 |
| 6 | 911126-2 | Makita 911126-2 PAN HEAD SCREW M4X16, 5900B |
| 7 | 231780-9 | Makita 231780-9 TENSION SPRING 5 |
| 8 | 316118-0 | Makita 316118-0 GUIDE BAR RETAINER |
| 9 | 265927-3 | Makita 265927-3 HEX. SOCKET HEAD BOLT M6 |
| 10 | 423194-8 | Makita 423194-8 PACKING |
| 11 | 150255-8 | Makita 150255-8 PROTECTOR COMPLETE |
| 12 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 13 | 253726-5 | Makita 253726-5 FLAT WASHER 6, LS0713 |
| 14 | 251208-1 | Makita 251208-1 PAN HEAD SCREW M5X35 |
| 15 | 168248-1 | Makita 168248-1 GUIDE BAR 5016NB |
| 16 | 150141-3 | |
| 17 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 18 | 921456-3 | |
| 19 | 325549-2 | Makita 325549-2 ADJUST PIN |
| 20 | 151321-4 | Makita 151321-4 BRAKE LEVER COMPLETE |
| 21 | 231468-1 | Makita 231468-1 COMPRESSION SPRING 8 |
| 22 | 343589-8 | Makita 343589-8 STOPPER |
| 23 | 856368-0 | Makita 856368-0 NAME PLATE 5016 |
| 24 | 265932-0 | Makita 265932-0 TAPPING SCREW 4X35 |
| 25 | 182228-3 | Makita 182228-3 MOTOR HOUSING SET |
| 26 | 414366-6 | Makita 414366-6 FRONT GRIP |
| 27 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 28 | 961056-7 | Makita 961056-7 RETAINING RING S-16 |
| 29 | 254032-1 | Makita 254032-1 WOODRUFF KEY 5 |
| 30 | 256192-5 | Makita 256192-5 PIN 6 |
| 31 | 322266-5 | Makita 322266-5 SPINDLE |
| 32 | 221773-4 | |
| 33 | 211251-2 | Makita 211251-2 BALL BEARING 6003VVCM, 5277NB |
| 34 | 231466-5 | Makita 231466-5 COMPRESSION SPRING 4 |
| 35 | 256191-7 | Makita 256191-7 PIN 5 |
| 36 | 267065-7 | |
| 37 | 152353-4 | Makita 152353-4 SPROCKET COMPLETE |
| 38 | 252220-4 | |
| 39 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 40 | 414377-1 | Makita 414377-1 NOZZLE |
| 41 | 231400-5 | Makita 231400-5 COMPRESSION SPRING 3, UC3020A |
| 42 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 43 | 213015-0 | Makita 213015-0 O RING 3 |
| 44 | 414379-7 | Makita 414379-7 CASING |
| 45 | 231465-7 | Makita 231465-7 COMPRESSION SPRING 2 |
| 46 | 213014-2 | Makita 213014-2 O RING 3 |
| 47 | 213014-2 | Makita 213014-2 O RING 3 |
| 48 | 322264-9 | |
| 49 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 50 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 51 | 322265-7 | Makita 322265-7 CHAIN CATCHER |
| 52 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 53 | 343590-3 | Makita 343590-3 PIN PRESSER |
| 54 | 256660-8 | Makita 256660-8 PIN 5 |
| 55 | 159094-3 | Makita 159094-3 MAIN HOUSING COMPLETE |
| 56 | 665500-3 | Makita 665500-3 POWER SUPPLY CORD 1.00-2- |
| 57 | 682505-8 | Makita 682505-8 Cord Guard 10-90 for 5806B |
| 58 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 59 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 60 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 61 | 651252-2 | Makita 651252-2 Switch for 1900 1923H 1911B 4101RH 4200H 4200NH 4100 |
| 62 | 414587-0 | Makita 414587-0 HANDLE COVER |
| 63 | 265925-7 | |
| 64 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 65 | 241846-7 | Makita 241846-7 FAN 80 |
| 66 | 516008-9 | Makita 516008-9 ARMATURE ASS'Y 220V |
| 67 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 68 | 634068-0 | |
| 69 | 632097-7 | |
| 70 | 191928-4 | Makita 191928-4 CB-403 Carbon Brushes for Saw 5014 5016 |
| 71 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 72 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 73 | 911273-9 | Makita 911273-9 PAN HEAD SCREW M5X50 WR, 2414NB |
| 74 | 182228-3 | Makita 182228-3 MOTOR HOUSING SET |
