Makita 5014NB
Makita 5014NB: exploded parts diagram, 1 sheet, 100 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 5014NB: 100 positions on 1 sheet

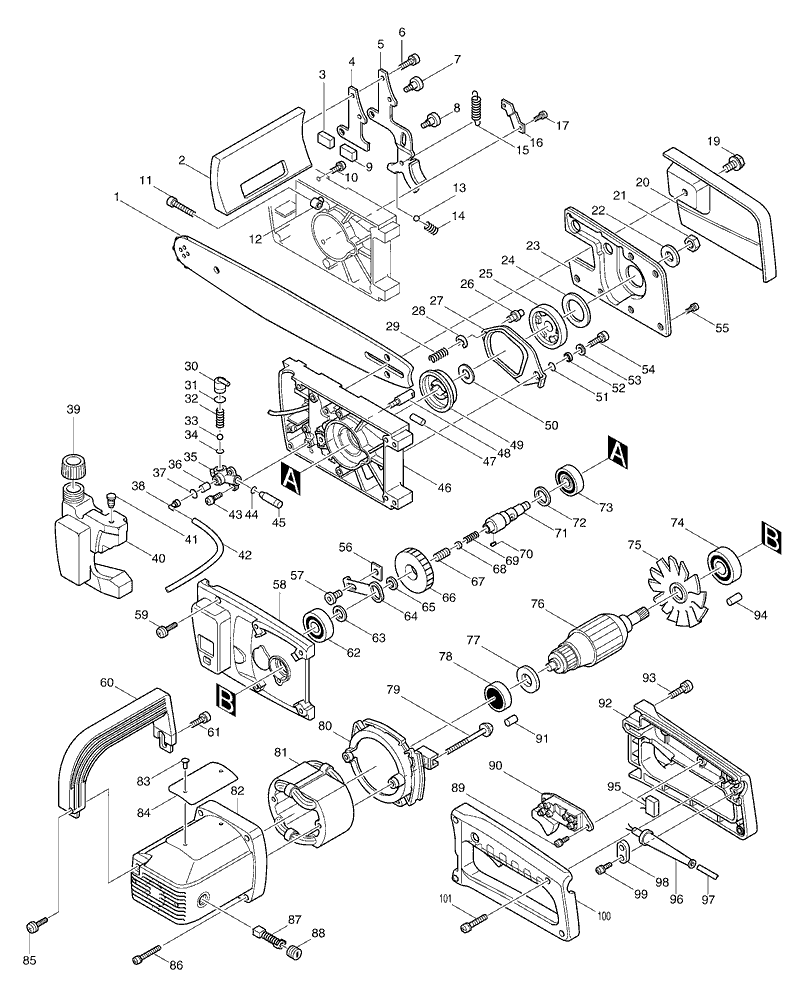

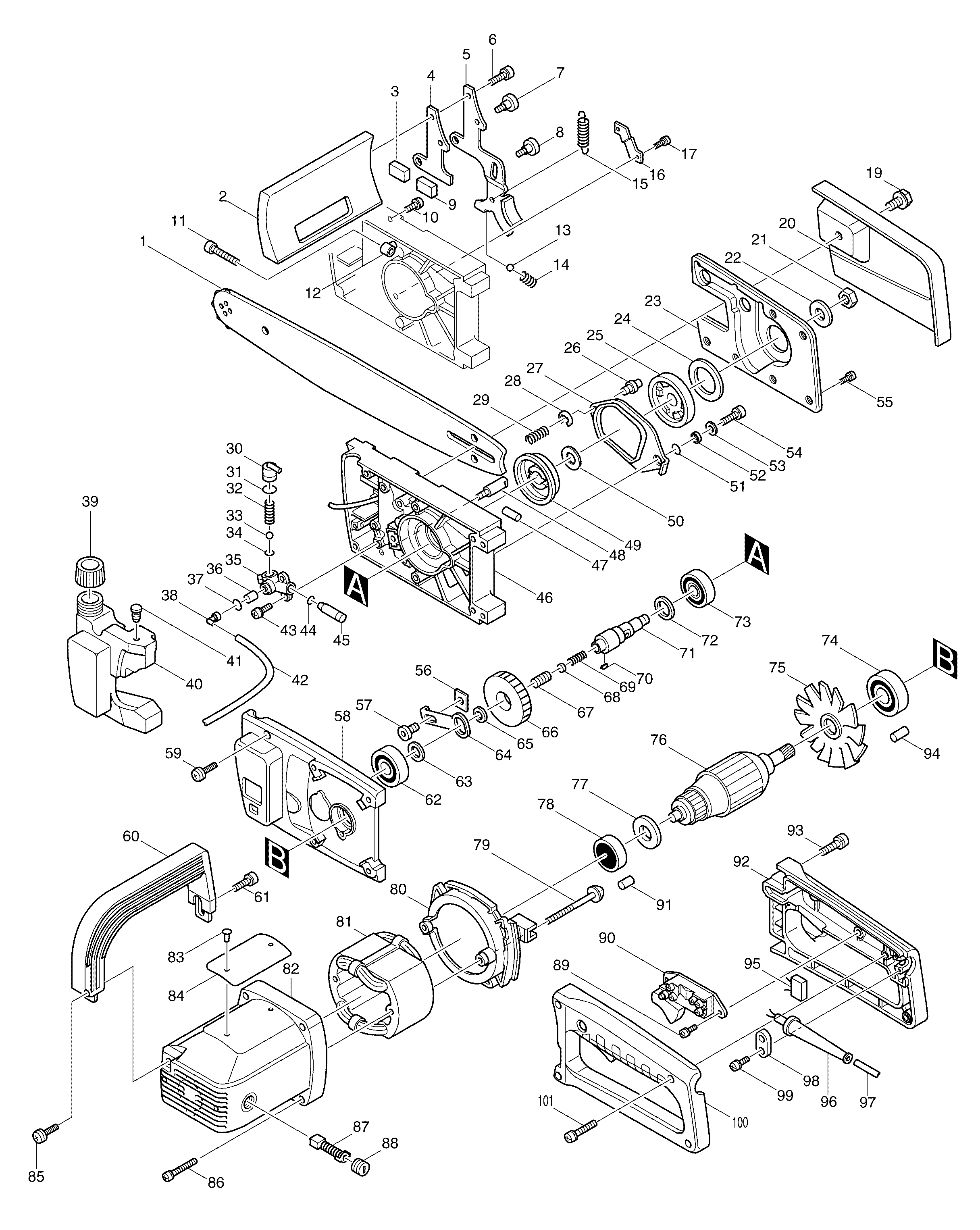

Sheet 1: Makita 5014NB parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 168147-7 | |
| 2 | 155778-1 | Makita 155778-1 PROTECTOR COMPLETE |
| 3 | 423120-7 | Makita 423120-7 PACKING |
| 4 | 342905-1 | Makita 342905-1 SUPPORTER PLATE |
| 5 | 168146-9 | |
| 6 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 7 | 265861-7 | |
| 8 | 265862-5 | |
| 9 | 423120-7 | Makita 423120-7 PACKING |
| 10 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 11 | 251426-1 | Makita 251426-1 - FLAT HEAD SCREW M5X40 |
| 12 | 325549-2 | Makita 325549-2 ADJUST PIN |
| 13 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 14 | 231445-3 | Makita 231445-3 COMPRESSION SPRING 4 |
| 15 | 231778-6 | |
| 16 | 342870-4 | Makita 342870-4 COVER PLATE |
| 17 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 19 | 251697-0 | |
| 20 | 342871-2 | Makita 342871-2 CHAIN COVER |
| 21 | 252043-0 | |
| 22 | 267009-7 | Makita 267009-7 FLAT WASHER 8 |
| 23 | 155751-1 | |
| 24 | 213417-0 | |
| 25 | 152274-0 | Makita 152274-0 SPROCKET COMPLETE |
| 26 | 256421-6 | Makita 256421-6 PIN 6 |
| 27 | 342869-9 | Makita 342869-9 CLUTCH PRESSURE |
| 28 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 29 | 231372-4 | Makita 231372-4 COMPRESSION SPRING 5 |
| 30 | 410525-0 | Makita 410525-0 NOZZLE B |
| 31 | 213007-9 | Makita 213007-9 O RING 8 |
| 32 | 231400-5 | Makita 231400-5 COMPRESSION SPRING 3, UC3020A |
| 33 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 34 | 213022-3 | Makita 213022-3 O RING 3 |
| 35 | 134374-8 | Makita 134374-8 CASING ASS'Y |
| 36 | 423135-4 | Makita 423135-4 Filter |
| 37 | 213054-0 | Makita 213054-0 O-RING 9, M442 |
| 38 | 410524-2 | Makita 410524-2 NOZZLE A |
| 39 | 242042-0 | Makita 242042-0 CAP |
| 40 | 134374-8 | Makita 134374-8 CASING ASS'Y |
| 41 | 421298-0 | Makita 421298-0 CHECK VALVE |
| 42 | 412072-7 | Makita 412072-7 TUBE 3 |
| 43 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 44 | 213022-3 | Makita 213022-3 O RING 3 |
| 45 | 321946-0 | Makita 321946-0 PLUNGER |
| 46 | 157517-5 | Makita 157517-5 GEAR HOUSING |
| 47 | 256152-7 | Makita 256152-7 PIN 6 |
| 48 | 321396-9 | Makita 321396-9 CHAIN CATCHER 5014NB |
| 49 | 223067-3 | |
| 50 | 253878-2 | Makita 253878-2 FLAT WASHER 10 |
| 51 | 257113-0 | Makita 257113-0 RING 5 |
| 52 | 253308-3 | Makita 253308-3 THIN WASHER 6, HR2610 |
| 53 | 253184-5 | Makita 253184-5 FLAT WASHER 5 |
| 54 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 55 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 56 | 342874-6 | |
| 57 | 265863-3 | Makita 265863-3 HEX. SOCKET HEAD BOLT M6 |
| 58 | 157556-5 | |
| 59 | 911231-5 | Makita 911231-5 PAN HEAD SCREW M5*20, HR4002 |
| 60 | 273620-5 | |
| 61 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 62 | 211101-1 | Makita 211101-1 BEARING 6001LLB, JR3060T |
| 63 | 253084-9 | Makita 253084-9 FLAT WASHER 12, HR4002 |
| 64 | 342873-8 | |
| 65 | 253771-0 | Makita 253771-0 FLAT WASHER 16 |
| 66 | 221741-7 | Makita 221741-7 HELICAL GEAR 53 |
| 67 | 913426-6 | Makita 913426-6 SET SCREW M8X16 |
| 68 | 342876-2 | Makita 342876-2 PLATE |
| 69 | 231271-0 | Makita 231271-0 COMPRESSION SPRING 4 |
| 70 | 254032-1 | Makita 254032-1 WOODRUFF KEY 5 |
| 71 | 321860-0 | Makita 321860-0 SPINDLE |
| 72 | 267011-0 | Makita 267011-0 FLAT WASHER 17 |
| 73 | 211251-2 | Makita 211251-2 BALL BEARING 6003VVCM, 5277NB |
| 74 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 75 | 241093-0 | Makita 241093-0 FAN 97 |
| 76 | 514797-0 | Makita 514797-0 ARMATURE ASSY 5014NB |
| 77 | 681624-7 | Makita 681624-7 INSULATION WASHER |
| 78 | 211068-3 | Makita 211068-3 BALL BEARING 6200LB |
| 79 | 911295-9 | Makita 911295-9 PAN HEAD SCREW M5X70 |
| 80 | 410519-5 | |
| 81 | 524763-9 | Makita 524763-9 FIELD ASS Y 220V |
| 82 | 157516-7 | Makita 157516-7 MOTOR HOUSING |
| 83 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 84 | 855234-8 | Makita 855234-8 NAME PLATE 5014NB |
| 85 | 911231-5 | Makita 911231-5 PAN HEAD SCREW M5*20, HR4002 |
| 86 | 911273-9 | Makita 911273-9 PAN HEAD SCREW M5X50 WR, 2414NB |
| 87 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 88 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 89 | 911101-8 | Makita 911101-8 PAN HEAD SCREW M4X6 |
| 90 | 651040-7 | Makita 651040-7 SWITCH HPAH2-22S |
| 91 | 263013-4 | Makita 263013-4 RUBBER PIN 4 |
| 92 | 181787-4 | Makita 181787-4 HANDLE SET |
| 93 | 911228-4 | Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG |
| 94 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 95 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 96 | 682505-8 | Makita 682505-8 Cord Guard 10-90 for 5806B |
| 97 | 665527-3 | Makita 665527-3 POWER SUPPLY CORD 1.00-2- |
| 98 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 99 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 100 | 181787-4 | Makita 181787-4 HANDLE SET |
| 101 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
