Makita 5008MG: exploded parts diagram, 1 sheet, 83 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 5008MG: 83 positions on 1 sheet

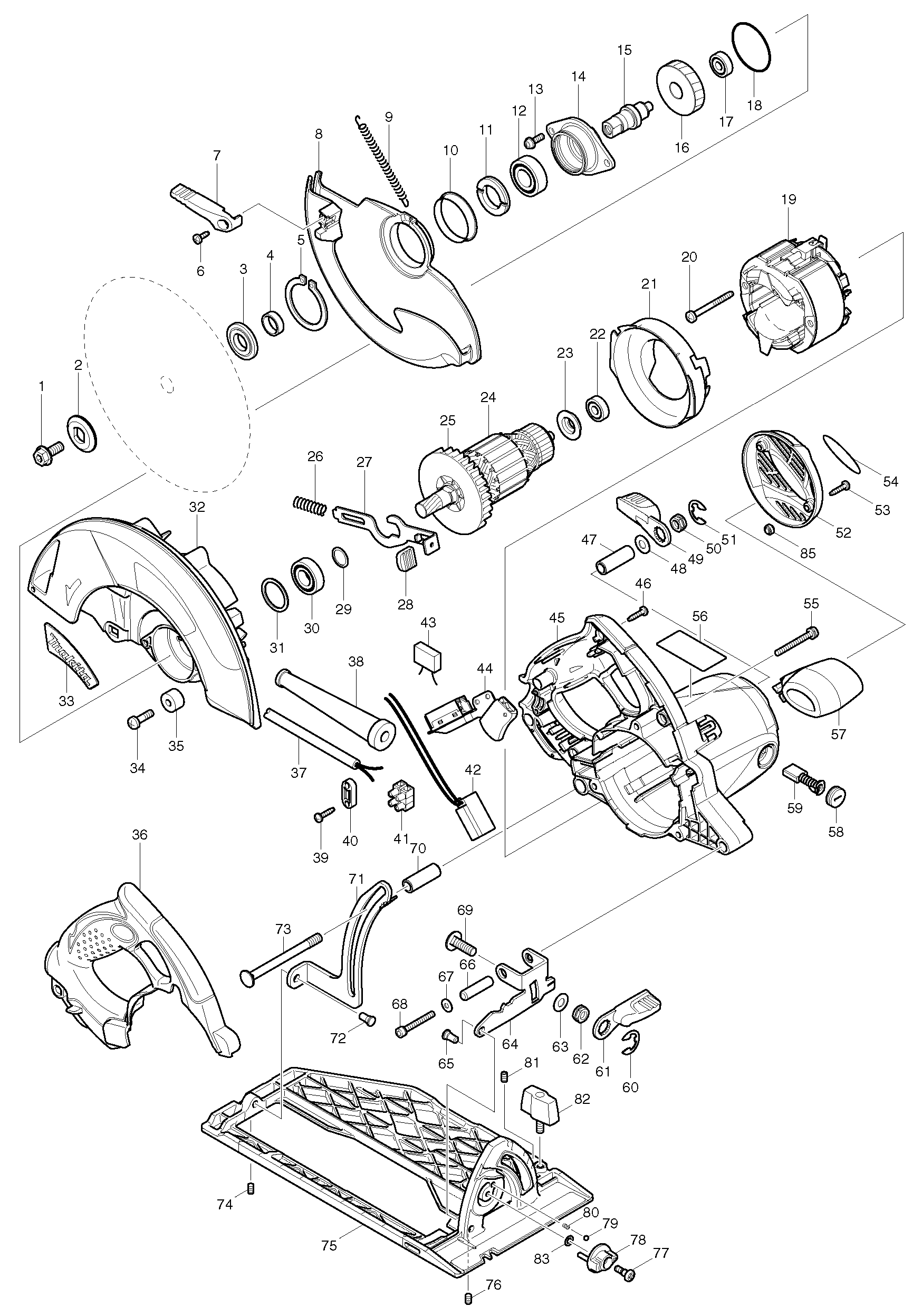

Sheet 1: Makita 5008MG parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266283-4 | Makita 266283-4 Hex. Socket Hex Bolt M8X20, 5007MG |
| 2 | 224409-4 | Makita 224409-4 35 Outer Flange 35 for 5008MG |
| 3 | 224412-5 | Makita 224412-5 INNER FLANGE 35, 5008MG |
| 4 | 257279-6 | Makita 257279-6 RING17, 5007MG |
| 5 | 961201-4 | Makita 961201-4 RETAINING RING S-42, 5007NB |
| 6 | 266398-7 | Makita 266398-7 TAPPING SCREW 4*12, 5007MG |
| 7 | 272258-3 | Makita 272258-3 LEVER 37, 5008MG |
| 8 | 318175-4 | Makita 318175-4 SAFETY COVER, 5008MG |
| 9 | 231848-1 | Makita 231848-1 TENSION SPRING 4, 5008MG |
| 10 | 345422-0 | Makita 345422-0 SPACER, 4131 |
| 11 | 285848-3 | Makita 285848-3 BEARING RETAINER 23-36, 5007MG |
| 12 | 211275-8 | Makita 211275-8 BALL BEARING 6003DDW |
| 13 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 14 | 318056-2 | Makita 318056-2 BEARING BOX, 5007MG |
| 15 | 324690-8 | Makita 324690-8 SPINDLE, 5007MG |
| 16 | 226662-8 | Makita 226662-8 HELICAL GEAR 43, 5008MG |
| 17 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 18 | 213623-7 | Makita 213623-7 O-RING 46, LF1000 |
| 19 | 596289-1 | Makita 596289-1 Field Ass'y 220-240V 5007MG 5008MG |
| 20 | 266397-9 | Makita 266397-9 TAPPING SCREW 5*50, 5007MG |
| 21 | 419548-5 | Makita 419548-5 BAFFLE PLATE, 5007MG |
| 22 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 23 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 24 | 517763-6 | Makita 517763-6 Armature Assy 220V 5008MG 240V |
| 26 | 231297-2 | Makita 231297-2 COMPRESSION SPRING 9, 5007MG |
| 27 | 345717-1 | Makita 345717-1 SHAFT LOCK, 5007MG |
| 28 | 286275-7 | Makita 286275-7 CAP, 5007MG |
| 29 | 267280-3 | Makita 267280-3 FLAT WASHER 15, LS1040 |
| 30 | 211236-8 | Makita 211236-8 Ball Bearing 6002DDW, BO3700 |
| 31 | 261132-0 | Makita 261132-0 URETHANE WASHER26, 5007MG |
| 32 | 188446-1 | Makita 188446-1 BLADE CASE SET, 5008MG |
| 33 | 819234-2 | Makita 819234-2 MAKITA LOGO PLATE, 5007MG |
| 34 | 251247-1 | Makita 251247-1 PAN HEAD SCREW M6X20, 5806B |
| 35 | 262552-1 | Makita 262552-1 RUBBER SLEEVE6, N5900B |
| 36 | 419553-2 | Makita 419553-2 HANDLE COVER, 5007MG |
| 37 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 38 | 682564-2 | Makita 682564-2 CORD GUARD 10, N5900B |
| 39 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 40 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 41 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 42 | 631710-4 | Makita 631710-4 LIGHT CIRCUIT, 5007MG |
| 43 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 44 | 651189-3 | Makita 651189-3 Switch TG933TN-2 for 5007MG 5008MB |
| 45 | 158100-1 | Makita 158100-1 MOTOR HOUSING COMPLETE, 5007MG |
| 46 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 47 | 331719-3 | Makita 331719-3 PIPE 9, 5007MG |
| 48 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 49 | 272253-3 | Makita 272253-3 LEVER 56, 5007MG |
| 50 | 252199-9 | Makita 252199-9 HEX NUT M8-13, 5007MG |
| 51 | 257953-6 | Makita 257953-6 BOWSTOP RING E-12, 5007MG |
| 52 | 188448-7 | Makita 188448-7 REAR COVER SET, 5007MG |
| 53 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 54 | 819237-6 | Makita 819237-6 MAKITA LOGO LABEL, 5007MG |
| 55 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 56 | 863999-8 | Makita 863999-8 5008MG NAME PLATE5008MG |
| 57 | 419550-8 | Makita 419550-8 FRONT GRIP, 5007MG |
| 58 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 59 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 60 | 257953-6 | Makita 257953-6 BOWSTOP RING E-12, 5007MG |
| 61 | 272253-3 | Makita 272253-3 LEVER 56, 5007MG |
| 62 | 252199-9 | Makita 252199-9 HEX NUT M8-13, 5007MG |
| 63 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 64 | 345835-5 | Makita 345835-5 ANGULAR GUIDE, 5008MG |
| 65 | 256480-0 | Makita 256480-0 SHOULDER PIN 6-7, MT581 |
| 66 | 257759-2 | Makita 257759-2 SLEEVE 6, 5007MG |
| 67 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 68 | 922261-1 | Makita 922261-1 HEX.SOCKET HEX.BOLT M5X40, 5007MG |
| 69 | 266396-1 | Makita 266396-1 FLAT HAND SQUARE NECK BOLT, 5007MG |
| 70 | 331719-3 | Makita 331719-3 PIPE 9, 5007MG |
| 71 | 345833-9 | Makita 345833-9 DEPTH GUIDE, 5008MG |
| 72 | 256480-0 | Makita 256480-0 SHOULDER PIN 6-7, MT581 |
| 73 | 266237-1 | Makita 266237-1 F.H. SQUARE NECK BOLT M8*90, 5007MG |
| 74 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 75 | 158423-7 | Makita 158423-7 Base Complete 5008MG 5008MB |
| 76 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 77 | 251370-2 | Makita 251370-2 PAN HEAD SCREW M5, 5007MG |
| 78 | 419549-3 | Makita 419549-3 DIAL 27, 5007MG |
| 79 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 80 | 233314-4 | Makita 233314-4 COMPRESSION SPRING 4, 5007MG |
| 81 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 82 | 251858-2 | Makita 251858-2 THUMB SCREW M6X15, 5007NB |
| 83 | 253811-4 | Makita 253811-4 FLAT WASHER 5, 5007MG |
| 85 | 450351-5 | Makita 450351-5 SPACER, 5008MG |
