Makita 500
Makita 500: exploded parts diagram, 1 sheet, 57 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 500: 57 positions on 1 sheet

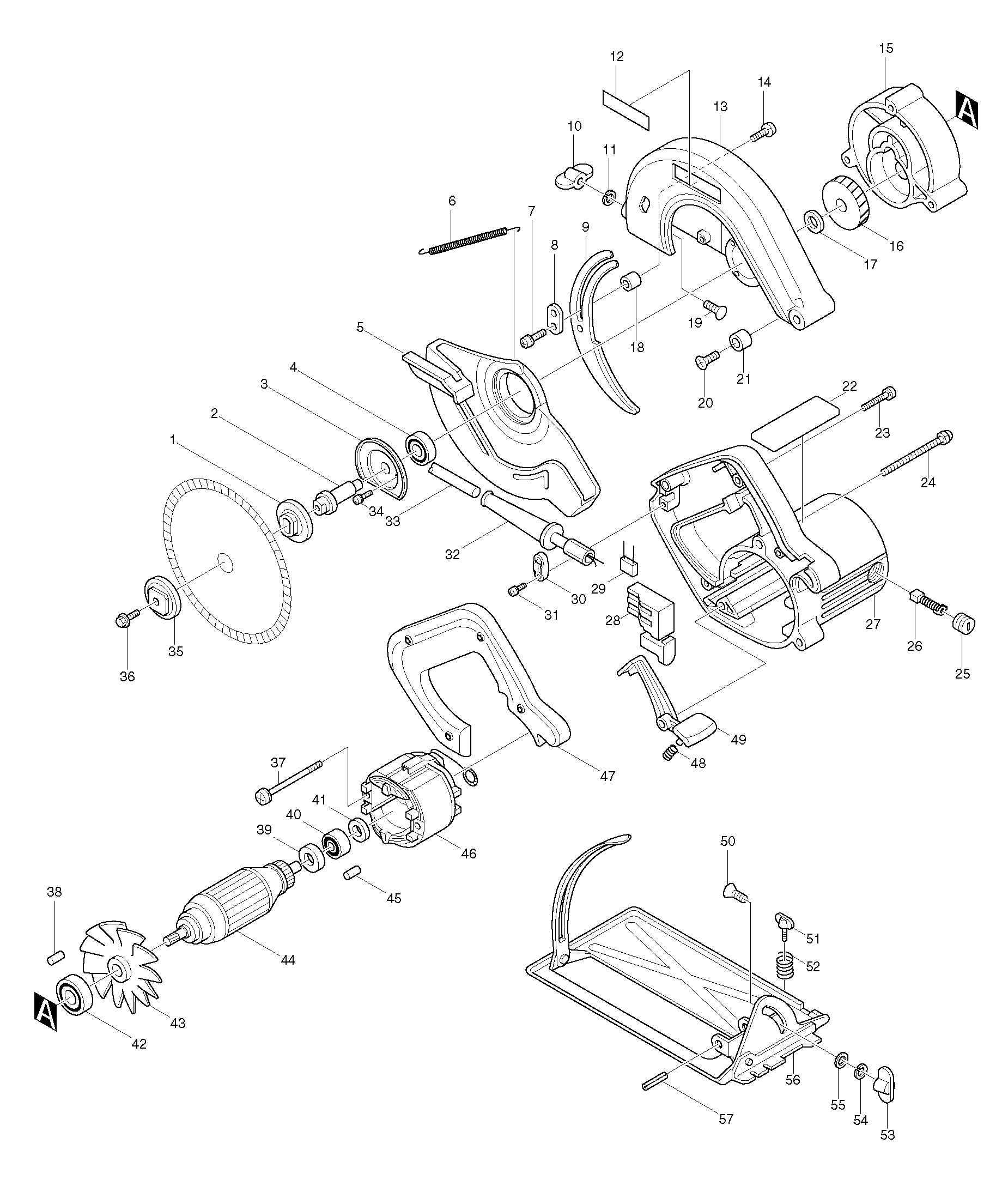

Sheet 1: Makita 500 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 224131-3 | Makita 224131-3 INNER FLANGE 34 |
| 2 | 322328-9 | Makita 322328-9 SPINDLE |
| 3 | 285664-3 | |
| 4 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 5 | 414561-8 | Makita 414561-8 SAFETY COVER |
| 6 | 231784-1 | Makita 231784-1 TENSION SPRING 3 |
| 7 | 911106-8 | Makita 911106-8 PAN HEAD SCREW M4X8, 5007NB |
| 8 | 341583-4 | Makita 341583-4 PLATE |
| 9 | 343685-2 | |
| 10 | 252631-3 | Makita 252631-3 SCREW M6 |
| 11 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 12 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 13 | 316356-4 | Makita 316356-4 BLADE CASE |
| 14 | 911106-8 | Makita 911106-8 PAN HEAD SCREW M4X8, 5007NB |
| 15 | 159127-4 | |
| 16 | 221779-2 | Makita 221779-2 HELICAL GEAR 51 |
| 17 | 267075-4 | Makita 267075-4 FLAT WASHER 10 |
| 18 | 322329-7 | Makita 322329-7 HOLDER |
| 19 | 265939-6 | Makita 265939-6 CAP SQUARE NECK BOLT M6X1 |
| 20 | 251368-9 | Makita 251368-9 COUNTERSUNK HEAD SCREW M6, SS610D |
| 21 | 262049-0 | Makita 262049-0 RUBBER RING 6, SS610D |
| 22 | 856926-2 | Makita 856926-2 NAME PLATE N500 |
| 23 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 24 | 911288-6 | Makita 911288-6 PAN HEAD SCREW M5X65 |
| 25 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 26 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 27 | 159282-2 | Makita 159282-2 MOTOR HOUSING COMPLETE |
| 28 | 651234-4 | DISC 651234-4 |
| 29 | 645209-3 | Makita 645209-3 NOISE SUPPRESSOR |
| 30 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 31 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 32 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 33 | 666053-5 | Makita 666053-5 POWER S.CORD HD-21 CORD, 4329 |
| 34 | 911116-5 | Makita 911116-5 PAN HEAD SCREW M4*12, 9035 |
| 35 | 224116-9 | Makita 224116-9 OUTER FLANGE 34 |
| 36 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
| 37 | 911586-8 | Makita 911586-8 PAN HEAD SCREW M4X60 |
| 38 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 39 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 40 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 41 | 253842-3 | Makita 253842-3 FLAT WASHER 14, HR2410 |
| 42 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 43 | 241023-1 | |
| 44 | 511898-5 | |
| 45 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 46 | 599318-9 | |
| 47 | 414563-4 | |
| 48 | 231485-1 | Makita 231485-1 COMPRESSION SPRING 4 |
| 49 | 414566-8 | |
| 50 | 265939-6 | Makita 265939-6 CAP SQUARE NECK BOLT M6X1 |
| 51 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 52 | 231139-0 | Makita 231139-0 COMPRESSION SPRING 9, N5900B |
| 53 | 252631-3 | Makita 252631-3 SCREW M6 |
| 54 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 55 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 56 | 134624-1 | Makita 134624-1 BASE ASS'Y |
| 57 | 951219-3 | Makita 951219-3 SPRING PIN 6-32 |
