Bosch 493

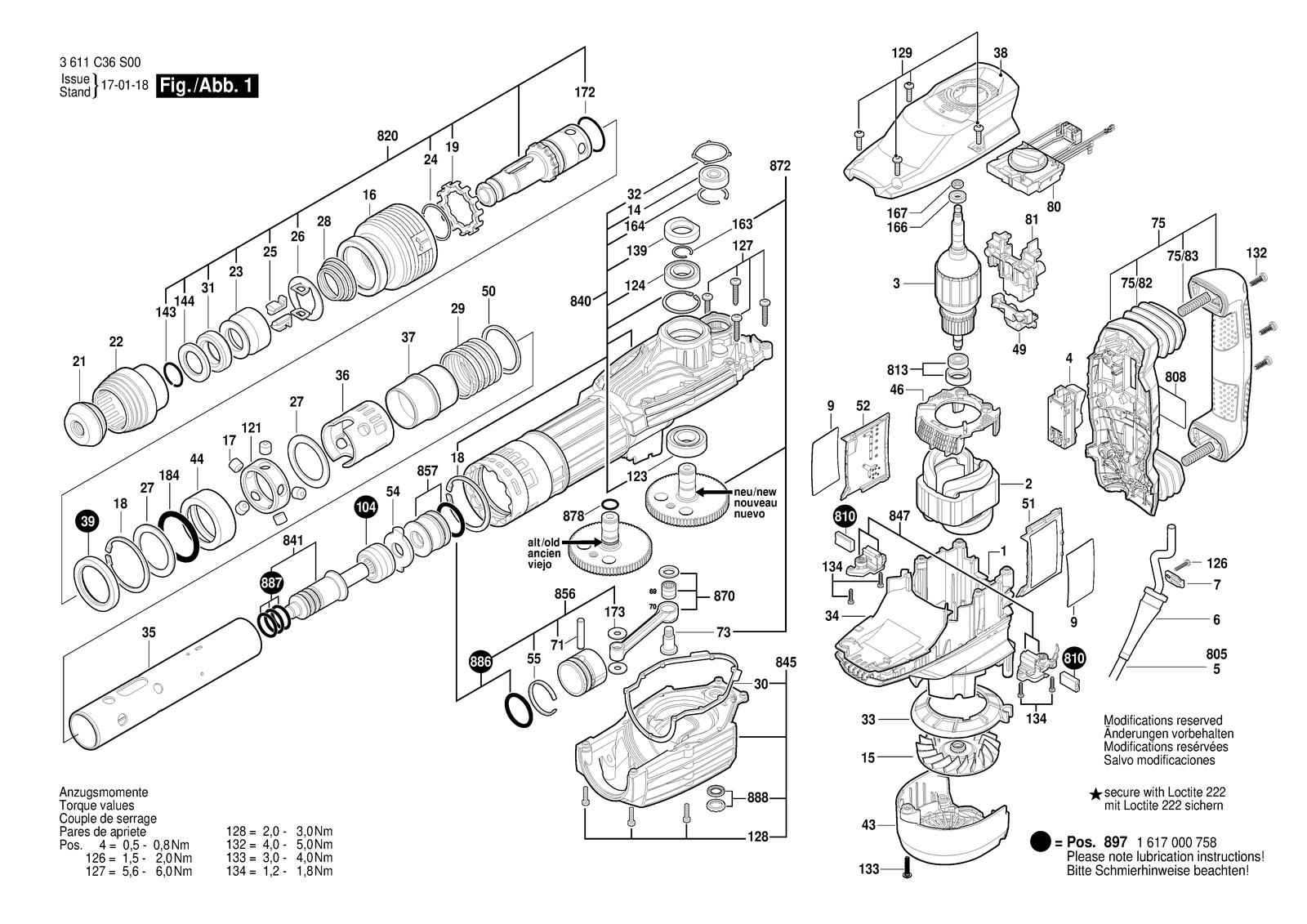

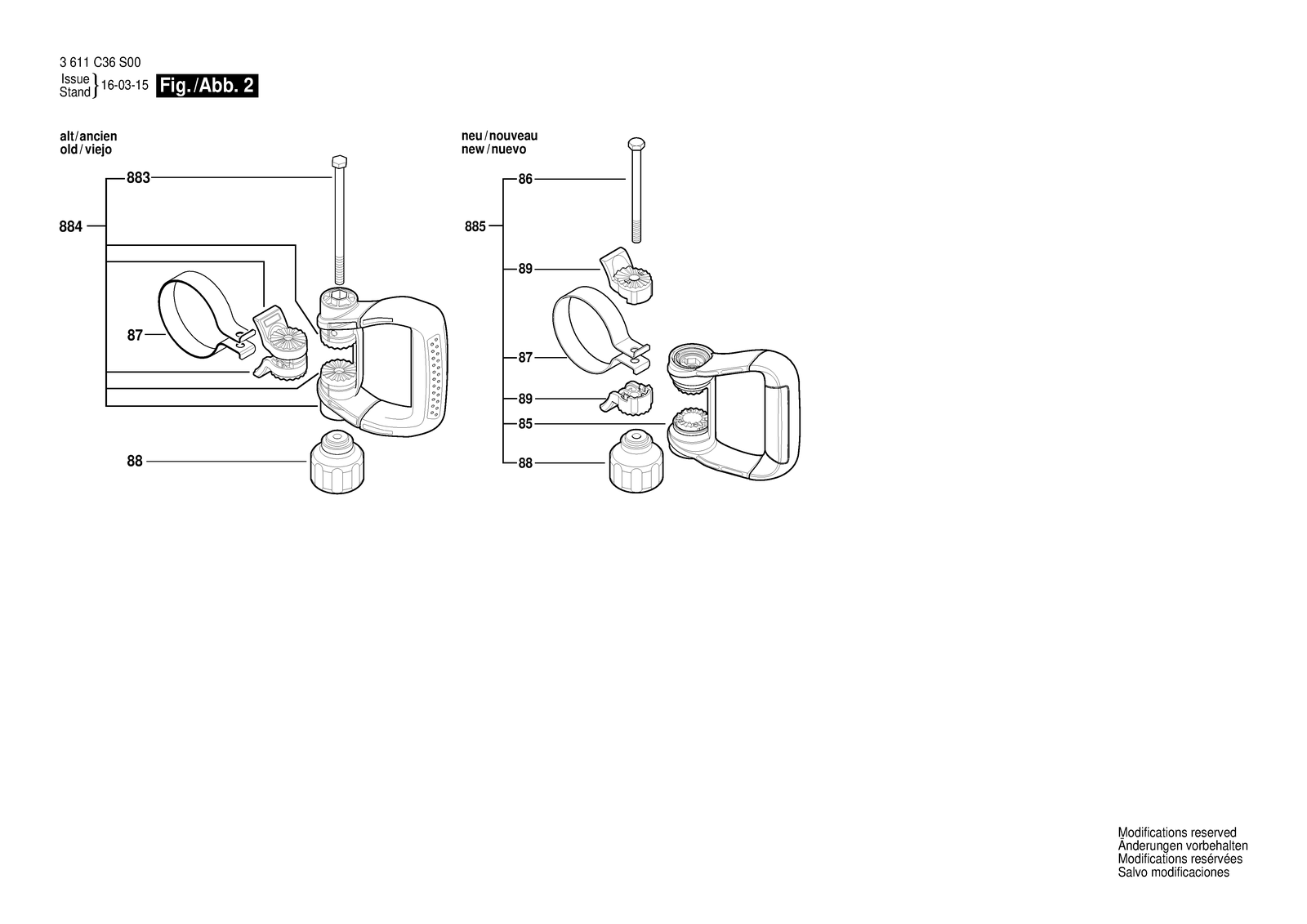

Bosch 493 demolition hammer: exploded parts diagram, 2 sheets, 190 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 493: 190 positions on 2 sheets
Bosch 493 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 161510829P | Motor Housing |
| 1 | 161510829P | Motor Housing |
| 104 | 1610210219 | Damper |
| 104 | 1610210219 | Damper |
| 121 | 1610200032 | Retaining snap ring |
| 121 | 1610200032 | Retaining snap ring |
| 123 | 1610900033 | Groove ball bearing 20X47X14 |
| 123 | 1610900033 | Groove ball bearing 20X47X14 |
| 124 | 1610900034 | Groove ball bearing 20X42X12 |
| 124 | 1610900034 | Groove ball bearing 20X42X12 |
| 126 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 126 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 127 | 1613490022 | Torx Oval-Head Screw 6X30 |
| 127 | 1613490022 | Torx Oval-Head Screw 6X30 |
| 128 | 1613414026 | Torx socket button screw |
| 128 | 1613414026 | Torx socket button screw |
| 129 | 1613490024 | Torx Oval-Head Screw M5X20 |
| 129 | 1613490024 | Torx Oval-Head Screw M5X20 |
| 132 | 1613490025 | Torx Oval-Head Screw 6X20 |
| 132 | 1613490025 | Torx Oval-Head Screw 6X20 |
| 133 | 1613490026 | Torx Oval-Head Screw 5X25 |
| 133 | 1613490026 | Torx Oval-Head Screw 5X25 |
| 134 | 1613490027 | Torx Oval-Head Screw 3,5X16 |
| 134 | 1613490027 | Torx Oval-Head Screw 3,5X16 |
| 139 | 1610209017 | Felt Washer |
| 139 | 1610209017 | Felt Washer |
| 14 | 1600905028 | Groove ball bearing |
| 14 | 1600905028 | Groove ball bearing |
| 143 | 1614601071 | Retaining ring |
| 143 | 1614601071 | Retaining ring |
| 144 | 1610101023 | Supporting Disc |
| 144 | 1610101023 | Supporting Disc |
| 15 | 1616610106 | Fan |
| 15 | 1616610106 | Fan |
| 16 | 1610499076 | Guide Sleeve |
| 16 | 1610499076 | Guide Sleeve |
| 163 | 1610224012 | Spring retaining ring |
| 163 | 1610224012 | Spring retaining ring |
| 164 | 1610224013 | Spring retaining ring |
| 164 | 1610224013 | Spring retaining ring |
| 166 | 1610209011 | Solenoid Ring |
| 166 | 1610209011 | Solenoid Ring |
| 167 | 2915050107 | Hex Nut DIN 439-BM8-04 |
| 167 | 2915050107 | Hex Nut DIN 439-BM8-04 |
| 17 | 1613103012 | Locking Bolt |
| 17 | 1613103012 | Locking Bolt |
| 172 | 1610210216 | O-Ring |
| 172 | 1610210216 | O-Ring |
| 173 | 1610100021 | Disc |
| 173 | 1610100021 | Disc |
| 18 | 1610224011 | Spring retaining ring |
| 18 | 1610224011 | Spring retaining ring |
| 184 | 1610210218 | Damping Ring |
| 184 | 1610210218 | Damping Ring |
| 19 | 1616490071 | Carrier |
| 19 | 1616490071 | Carrier |
| 2 | 160422052F | Field 230V |
| 2 | 160422052F | Field 230V |
| 21 | 1610508025 | Protective Cap |
| 21 | 1610508025 | Protective Cap |
| 22 | 1610499078 | Protection Sleeve |
| 22 | 1610499078 | Protection Sleeve |
| 23 | 1610520005 | Stop Sleeve |
| 23 | 1610520005 | Stop Sleeve |
| 24 | 1614601020 | Retaining ring |
| 24 | 1614601020 | Retaining ring |
| 25 | 1612300025 | Stopping Device |
| 25 | 1612300025 | Stopping Device |
| 26 | 1610290105 | Indexing Disk |
| 26 | 1610290105 | Indexing Disk |
| 27 | 1610101024 | Stop Disc |
| 27 | 1610101024 | Stop Disc |
| 28 | 1614621014 | Conical helical spring |
| 28 | 1614621014 | Conical helical spring |
| 29 | 1614621015 | Compression Spring |
| 29 | 1614621015 | Compression Spring |
| 3 | 1614011120 | Armature 230V |
| 3 | 1614011120 | Armature 230V |
| 30 | 1611015063 | Sealing Frame |
| 30 | 1611015063 | Sealing Frame |
| 31 | 1610290106 | Damping Ring |
| 31 | 1610290106 | Damping Ring |
| 32 | 1610210214 | Sealing Frame |
| 32 | 1610210214 | Sealing Frame |
| 33 | 1610591047 | Air-Deflector Ring |
| 33 | 1610591047 | Air-Deflector Ring |
| 34 | 1610591048 | Air Path |
| 34 | 1610591048 | Air Path |
| 35 | 1615806243 | Hammer Pipe |
| 35 | 1615806243 | Hammer Pipe |
| 36 | 1610190066 | Perforated Ring |
| 36 | 1610190066 | Perforated Ring |
| 37 | 1610420006 | Control Bushing |
| 37 | 1610420006 | Control Bushing |
| 38 | 1600A001PK | Covering hood |
| 38 | 1600A001PK | Covering hood |
| 39 | 1610283052 | Rotary shaft lip seal |
| 39 | 1610283052 | Rotary shaft lip seal |
| 4 | 160720030C | Switch |
| 4 | 160720030C | Switch |
| 43 | 160550044Y | Brush-Cover |
| 43 | 160550044Y | Brush-Cover |
| 44 | 1610322017 | Guide Sleeve |
| 44 | 1610322017 | Guide Sleeve |
| 46 | 1615500427 | Holding-Down-Appliance |
| 46 | 1615500427 | Holding-Down-Appliance |
| 49 | 1604477020 | Plug Holder |
| 49 | 1604477020 | Plug Holder |
| 5 | 1604460349 | Power supply cord AUS 4,15M 2 X 1,5MM H07 Rn-F |
| 50 | 1610206028 | Stop Ring |
| 50 | 1610206028 | Stop Ring |
| 51 | 1605500450 | Housing Cover |
| 51 | 1605500450 | Housing Cover |
| 52 | 1605500451 | Housing Cover |
| 52 | 1605500451 | Housing Cover |
| 54 | 1610190069 | Control Disc |
| 54 | 1610190069 | Control Disc |
| 55 | 1610500024 | Retaining snap ring |
| 55 | 1610500024 | Retaining snap ring |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 71 | 1613101014 | Straight Pin |
| 71 | 1613101014 | Straight Pin |
| 73 | 1610320015 | Eccentric Bolt |
| 73 | 1610320015 | Eccentric Bolt |
| 75 | 161513215C | Handle |
| 75 | 161513215C | Handle |
| 75/82 | 1610415003 | Bellows |
| 75/82 | 1610415003 | Bellows |
| 75/83 | 1614621009 | Compression Spring |
| 75/83 | 1614621009 | Compression Spring |
| 80 | 1617233052 | Speed governor |
| 80 | 1617233052 | Speed governor |
| 805 | 1617000723 | Power supply cord |
| 808 | 160111A3H5 | Nameplate |
| 808 | 160111A3HD | Nameplate |
| 81 | 1611038018 | Inserted Part |
| 81 | 1611038018 | Inserted Part |
| 810 | 1617000750 | Carbon Brush |
| 810 | 1617000750 | Carbon Brush |
| 813 | 1617000744 | Groove ball bearing |
| 813 | 1617000744 | Groove ball bearing |
| 820 | 1617000745 | Toolholder |
| 820 | 1617000745 | Toolholder |
| 840 | 1617000A52 | Impact Mechanism Housing |
| 840 | 1617000A52 | Impact Mechanism Housing |
| 841 | 1617000747 | Striker Pin |
| 841 | 1617000747 | Striker Pin |
| 845 | 1617000A53 | Gear Cover |
| 845 | 1617000A53 | Gear Cover |
| 847 | 1617000749 | Brush Holder |
| 847 | 1617000749 | Brush Holder |
| 85 | 1602025081 | Auxiliary Handle |
| 85 | 1602025081 | Auxiliary Handle |
| 856 | 1617000751 | Hammer Piston |
| 856 | 1617000751 | Hammer Piston |
| 857 | 1617000752 | Striker |
| 857 | 1617000752 | Striker |
| 86 | 2911021267 | Hex Screw |
| 86 | 2911021267 | Hex Screw |
| 87 | 1600A01BH0 | Clamping Band |
| 87 | 1600A01BH0 | Clamping Band |
| 870 | 1617000753 | Connecting Rod |
| 870 | 1617000753 | Connecting Rod |
| 872 | 1600A005A4 | Eccentric Cog Wheel |
| 872 | 1600A005A4 | Eccentric Cog Wheel |
| 878 | 1610210215 | O-Ring |
| 878 | 1610210215 | O-Ring |
| 88 | 1619P16922 | Star Knob |
| 88 | 1619P16922 | Star Knob |
| 883 | 1613490019 | Hex Screw |
| 883 | 1613490019 | Hex Screw |
| 884 | 160202508T | Auxiliary Handle |
| 884 | 160202508T | Auxiliary Handle |
| 885 | 160202508J | Auxiliary Handle |
| 885 | 160202508J | Auxiliary Handle |
| 886 | 1617000755 | O-Ring |
| 886 | 1617000755 | O-Ring |
| 887 | 1617000756 | O-Ring |
| 887 | 1617000756 | O-Ring |
| 888 | 1617000757 | Parts Set |
| 888 | 1617000757 | Parts Set |
| 89 | 1600A008BL | Clamping Piece |
| 89 | 1600A008BL | Clamping Piece |
| 897 | 1617000758 | Wear and Tear Part Set |
| 897 | 1617000758 | Wear and Tear Part Set |
| 9 | 160111C05U | Sticker |
| 9 | 161111C01E | Sticker SPIT 493 |
