Bosch 455
Bosch 455 demolition hammer: exploded parts diagram, 2 sheets, 97 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

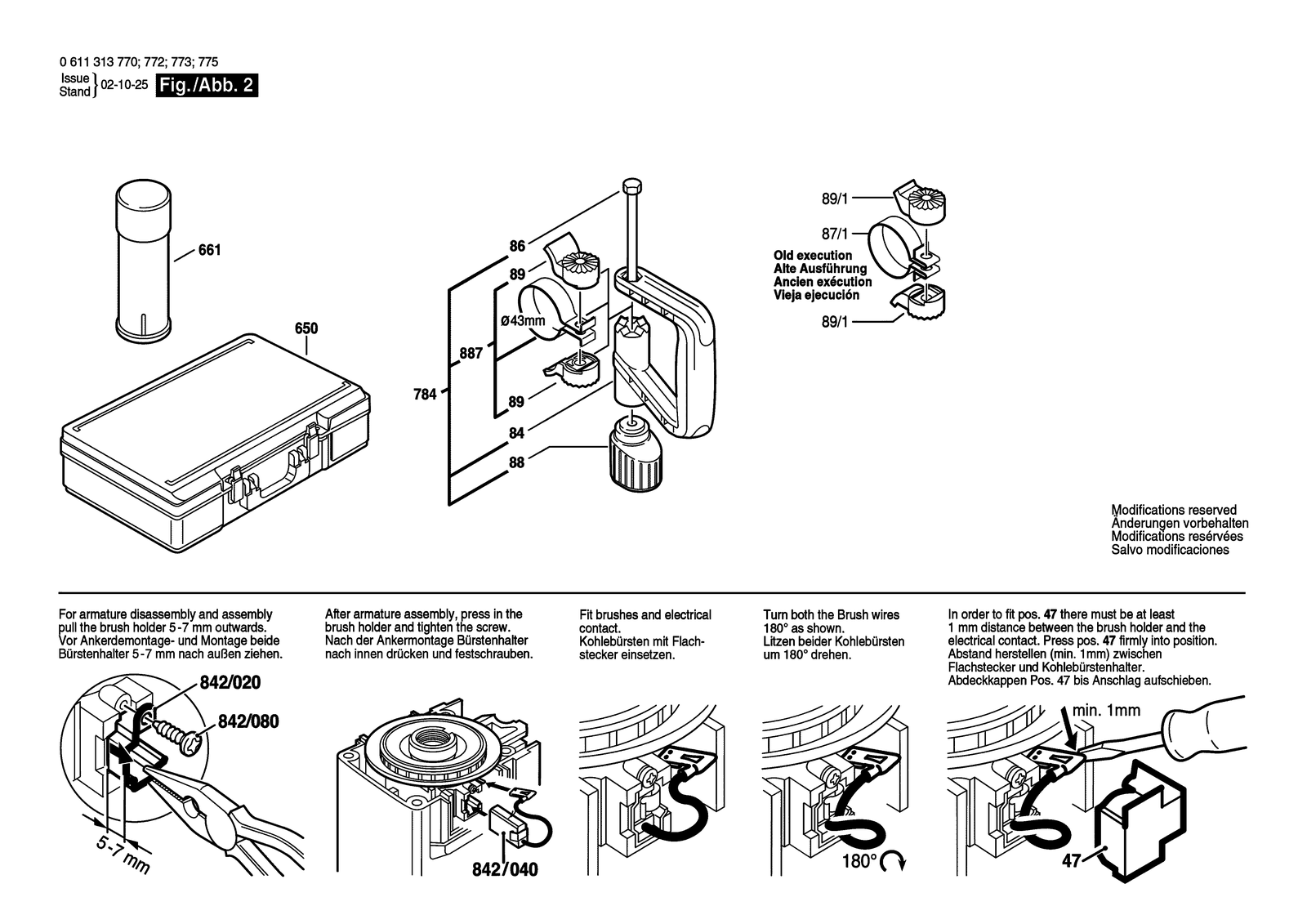

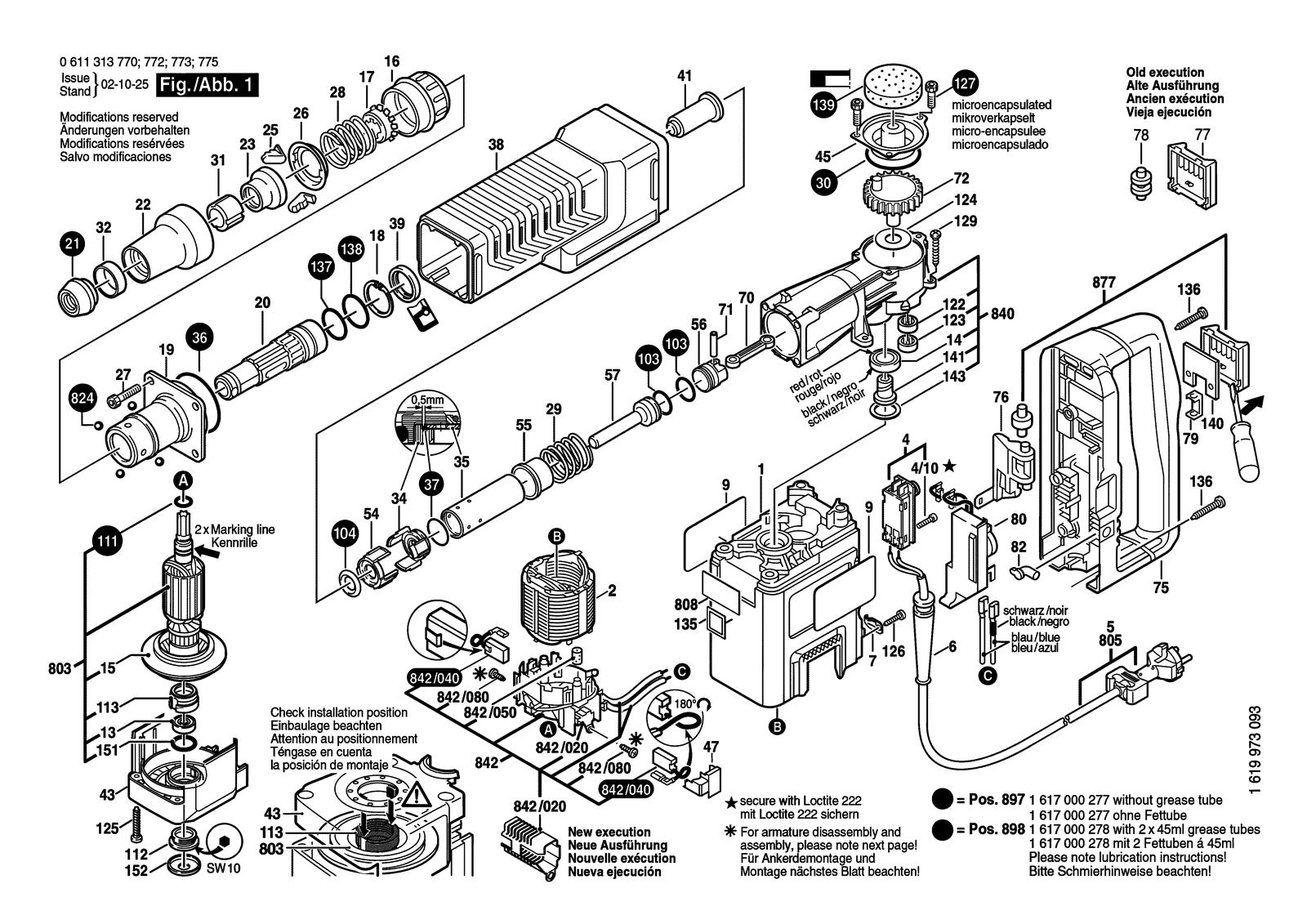

All parts of Bosch 455: 97 positions on 2 sheets
Bosch 455 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615102146 | Motor Housing Orange |
| 103 | 1610210091 | O-Ring 24,0X4,0 MM |
| 104 | 1610210093 | O-Ring 17,0X8,0 MM |
| 111 | 1610210081 | O-Ring 10,0X1,0 MM |
| 112 | 1613461001 | Threaded Ring M24X1,5MM, SW10 |
| 113 | 1610501036 | Bushing |
| 122 | 1610910088 | Needle bearing |
| 123 | 1610910087 | Nozzle Socket |
| 124 | 1610101008 | Thrust Bearing Disc Thick 1,0 MM |
| 125 | 2912401036 | Tapping Screw DIN7981-ST4,8X25-C-Z |
| 126 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 127 | 2914551117 | Microencapsulated Screw DIN 912-M 5X12-8.8 |
| 129 | 2912401036 | Tapping Screw DIN7981-ST4,8X25-C-Z |
| 13 | 1610900025 | Groove ball bearing 7X22X7 |
| 135 | 1611110387 | Reference Plate |
| 136 | 2910211236 | Tapping Screw DIN 7971-ST4,8X25-C |
| 137 | 1610210101 | O-Ring 26,0X2,0 MM |
| 138 | 1610210103 | O-Ring 33,0X2,0 MM |
| 139 | 1610108021 | Felt Washer |
| 14 | 1610905027 | Groove ball bearing 15X32X9 |
| 140 | 1611098004 | Support Plate |
| 141 | 1613344005 | Headed Bush |
| 143 | 1610108024 | Felt Washer |
| 15 | 1616610071 | Fan |
| 151 | 2600210028 | O-Ring 21,0X2,0 MM |
| 152 | 1610508030 | Cover |
| 16 | 1610499016 | Ratchet Sleeve |
| 17 | 1610590002 | Retaining snap ring |
| 18 | 2916660016 | Spring retaining ring DIN 472 37X1,5MM |
| 19 | 1615700033 | Clamping-Flange |
| 2 | 1604220343 | Field 220-230V |
| 2 | 1614220132 | Field 100V |
| 20 | 1618597069 | Toolholder |
| 21 | 1610508017 | Protective Cap |
| 22 | 1610499015 | Protection Sleeve |
| 23 | 1610520001 | Stop Sleeve |
| 25 | 1612300027 | Stopping Device |
| 26 | 1610290025 | Indexing Disk |
| 27 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 28 | 1614621000 | Compression Spring |
| 29 | 1614615002 | Compression Spring |
| 30 | 1610210136 | O-Ring 60,0X2,5 MM |
| 31 | 1610390015 | Spacer Tube |
| 32 | 1610202016 | Cylinder Sleeve |
| 34 | 1610390030 | Spacer Tube |
| 35 | 1615806086 | Hammer Pipe |
| 36 | 1610210022 | O-Ring 48,0X2,0 MM |
| 37 | 1900210131 | O-Ring 30X2,5 MM |
| 38 | 1615190034 | Covering hood Orange |
| 39 | 1610283027 | Rotary shaft lip seal |
| 4 | 1617200048 | Switch |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 41 | 1618710052 | Striker Pin |
| 43 | 1615808080 | Bearing cover Orange |
| 45 | 1615500294 | Housing Cover |
| 47 | 1610591012 | Cover |
| 5 | 1614460047 | Power supply cord IL 4,15M 2 X 1,0MM H07 Rn-F |
| 54 | 1610190010 | Control Disc |
| 55 | 1610420004 | Control Bushing |
| 56 | 1618700057 | Hammer Piston Black |
| 57 | 1618710077 | Striker |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 650 | 1615438268 | Carrying Case |
| 661 | 1615430009 | Grease Tube 30 Ml |
| 7 | 1601302018 | Fastening Clamp |
| 70 | 1612001031 | Connecting Rod |
| 71 | 1613101005 | Straight Pin |
| 72 | 1616317051 | Eccentric Cog Wheel Z=43 |
| 75 | 1615132043 | Handle Black |
| 76 | 1612026029 | Control Lever |
| 784 | 2602025080 | Auxiliary Handle |
| 79 | 1615819016 | Bearing Pedestal |
| 80 | 16072335CV | Speed governor 220-240V |
| 80 | 16072335CW | Speed governor 115V |
| 803 | 1614010186 | Armature 220-240V |
| 803 | 1614010187 | Armature 100-110V |
| 805 | 1617000723 | Power supply cord |
| 808 | 160111A3H3 | Nameplate |
| 82 | 1615510000 | Light Conductor |
| 824 | 1617000239 | Ball DIN 5401-5 Mm-Iii-St |
| 84 | 1615132044 | Strap-Shaped Handle Black |
| 840 | 1617000804 | Assembly Of Service Parts |
| 842 | 1614336009 | Brush Holder |
| 842/020 | 1614336043 | Brush Guide |
| 842/040 | 1617014122 | Carbon-Brush Set |
| 842/050 | 1613212004 | Rubber Buffer |
| 842/080 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 86 | 2911011270 | Hex Screw DIN 931-M8X130-8.8 |
| 877 | 1617000299 | Shift Plate Orange |
| 88 | 1613349018 | Star Knob Black M8 |
| 887 | 1617000171 | Clamping Band Ø 43 MM |
| 89 | 1617000171 | Clamping Band Ø 43 MM |
| 89 | 1618040068 | Clamping Piece |
| 897 | 1617000277 | Wear and Tear Part Set |
| 898 | 1617000278 | Wear and Tear Part Set |
| 9 | 1611110712 | Manufacturer's nameplate |
