Bosch 4410

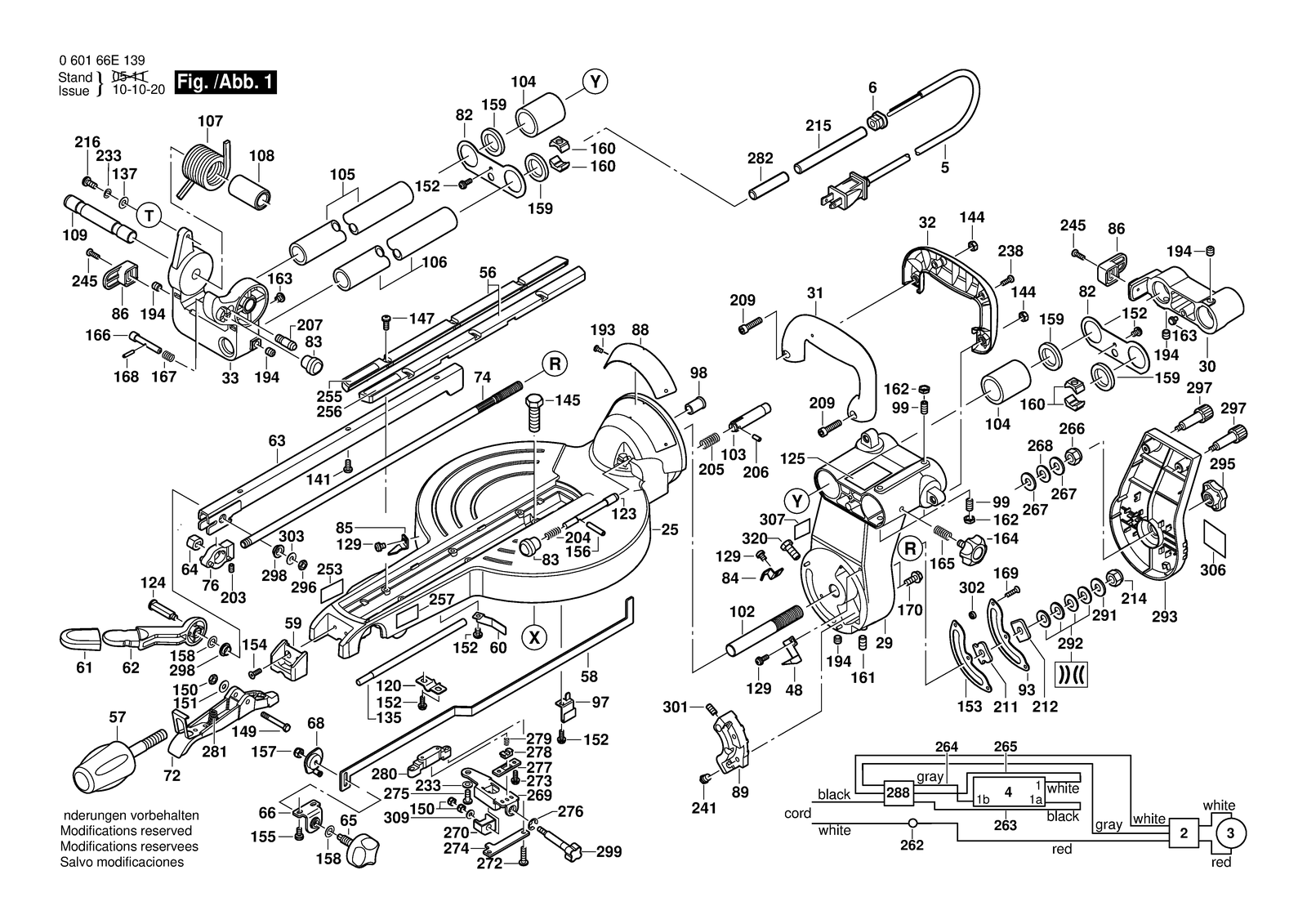

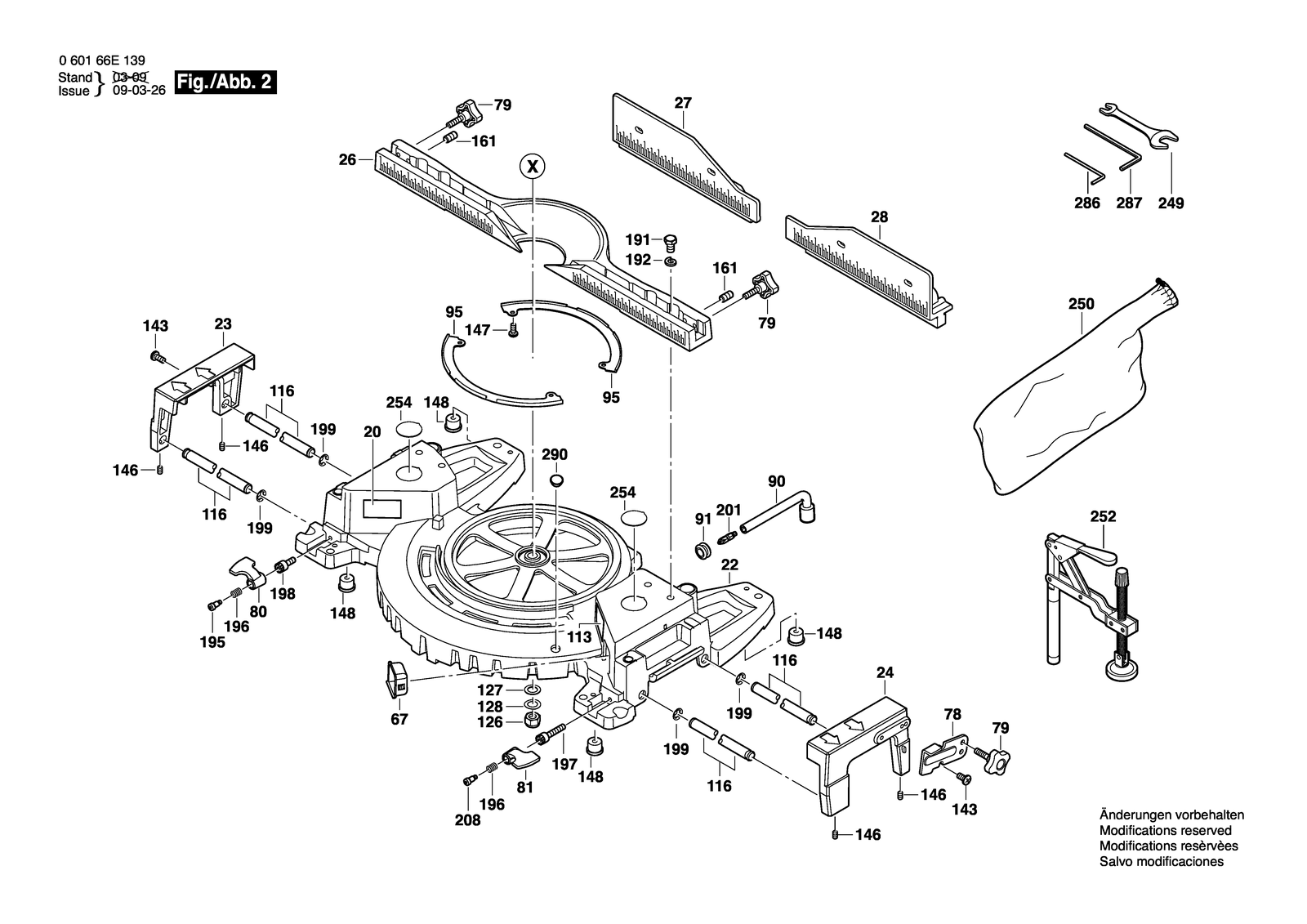

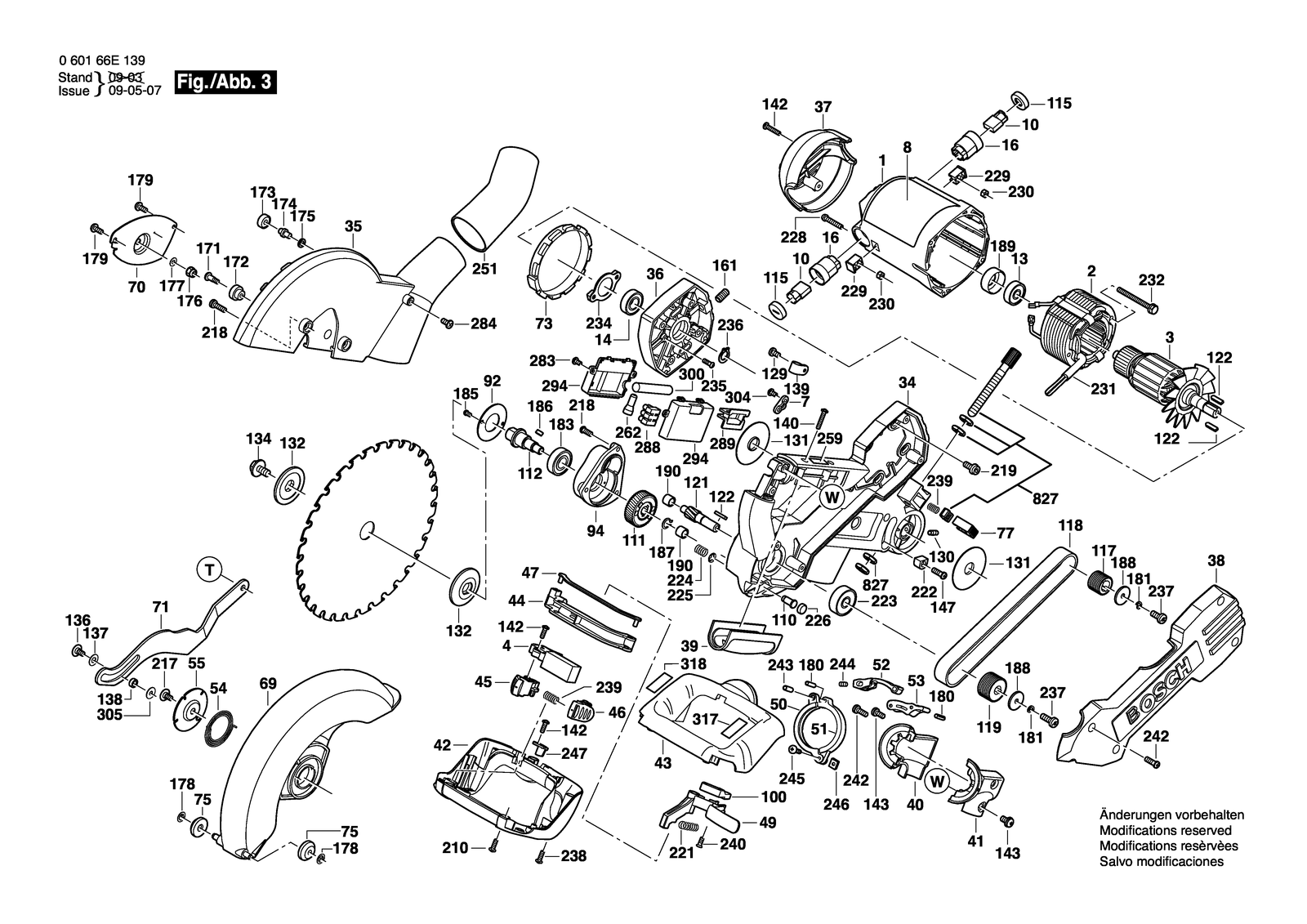

Bosch 4410 slide mitre saw: exploded parts diagram, 3 sheets, 572 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 4410: 572 positions on 3 sheets
Bosch 4410 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610915750 | Motor Housing |
| 1 | 2610915750 | Motor Housing |
| 10 | 2610997207 | Carbon-Brush Set |
| 10 | 2610997207 | Carbon-Brush Set |
| 100 | 2610916462 | Detent Pin |
| 100 | 2610916462 | Detent Pin |
| 102 | 2610919580 | Shaft Old L=127MM |
| 102 | 2610919580 | Shaft Old L=127MM |
| 103 | 2610915759 | Detent Pin |
| 103 | 2610915759 | Detent Pin |
| 104 | 2610915760 | Sliding Bearing |
| 104 | 2610915760 | Sliding Bearing |
| 105 | 2610916792 | Sliding Rail |
| 105 | 2610916792 | Sliding Rail |
| 106 | 2610916793 | Sliding Rail |
| 106 | 2610916793 | Sliding Rail |
| 107 | 2610922577 | Torsion Spring |
| 107 | 2610922577 | Torsion Spring |
| 108 | 2610916795 | Sleeve |
| 108 | 2610916795 | Sleeve |
| 109 | 2610916796 | Shaft |
| 109 | 2610916796 | Shaft |
| 110 | 2610919577 | Locking Pin |
| 110 | 2610919577 | Locking Pin |
| 111 | 2610916798 | Toothed Gear |
| 111 | 2610916798 | Toothed Gear |
| 112 | 2610924725 | Output Shaft |
| 112 | 2610924725 | Output Shaft |
| 113 | 2610920804 | Label |
| 113 | 2610920804 | Label |
| 115 | 2610916802 | Brush-Cover Ø 22MM |
| 115 | 2610916802 | Brush-Cover Ø 22MM |
| 116 | 2610916803 | Extension Shaft |
| 116 | 2610916803 | Extension Shaft |
| 117 | 2610916804 | Drive disk |
| 117 | 2610916804 | Drive disk |
| 118 | 2610921197 | Wide V-Belt |
| 118 | 2610921197 | Wide V-Belt |
| 119 | 2610919294 | Pulley |
| 119 | 2610919294 | Pulley |
| 120 | 2610916807 | Guide Plate |
| 120 | 2610916807 | Guide Plate |
| 121 | 2610933125 | Counter Shaft |
| 121 | 2610933125 | Counter Shaft |
| 122 | 2610916809 | Wedge |
| 122 | 2610916809 | Wedge |
| 123 | 2610916810 | Detent Pin |
| 123 | 2610916810 | Detent Pin |
| 124 | 1609902678 | Lever Shaft |
| 124 | 1609902678 | Lever Shaft |
| 125 | 2610916812 | Label |
| 125 | 2610916812 | Label |
| 126 | 2610911886 | Self-locking nut |
| 126 | 2610911886 | Self-locking nut |
| 127 | 2610911887 | Plain Washer |
| 127 | 2610911887 | Plain Washer |
| 128 | 2610911868 | Spring Washer |
| 128 | 2610911868 | Spring Washer |
| 129 | 2610911907 | Screw and washer assembly |
| 129 | 2610911907 | Screw and washer assembly |
| 13 | 2610911928 | Ball Bearing |
| 13 | 2610911928 | Ball Bearing |
| 130 | 2610911908 | Set screw |
| 130 | 2610911908 | Set screw |
| 131 | 2610911937 | Shim |
| 131 | 2610911937 | Shim |
| 132 | 2610911909 | Flange |
| 132 | 2610911909 | Flange |
| 134 | 2610924286 | Trunnion |
| 134 | 2610924286 | Trunnion |
| 135 | 2610921469 | Rod |
| 135 | 2610921469 | Rod |
| 136 | 2610911598 | Shoulder Screw |
| 136 | 2610911598 | Shoulder Screw |
| 137 | 2610911599 | Plain Washer |
| 137 | 2610911599 | Plain Washer |
| 138 | 2610911850 | Spacer |
| 138 | 2610911850 | Spacer |
| 139 | 2610911872 | Cable Clip |
| 139 | 2610911872 | Cable Clip |
| 14 | 2610911927 | Ball Bearing |
| 14 | 2610911927 | Ball Bearing |
| 140 | 2610911458 | Screw |
| 140 | 2610911458 | Screw |
| 141 | 2610998572 | Screw |
| 141 | 2610998572 | Screw |
| 142 | 2610950117 | Screw |
| 142 | 2610950117 | Screw |
| 143 | 2615297323 | Screw |
| 143 | 2615297323 | Screw |
| 144 | 2610911896 | Nut |
| 144 | 2610911896 | Nut |
| 145 | 2610911861 | Hex Screw |
| 145 | 2610911861 | Hex Screw |
| 146 | 2610356437 | Set screw |
| 146 | 2610356437 | Set screw |
| 147 | 2610911899 | Screw |
| 147 | 2610911899 | Screw |
| 148 | 2610358846 | Rubber Bushing |
| 148 | 2610358846 | Rubber Bushing |
| 149 | 2610911918 | Screw |
| 149 | 2610911918 | Screw |
| 150 | 2610911901 | Self-locking nut |
| 150 | 2610911901 | Self-locking nut |
| 151 | 2610347092 | Plain Washer |
| 151 | 2610347092 | Plain Washer |
| 152 | 2610911897 | Screw |
| 152 | 2610911897 | Screw |
| 153 | 2610919287 | Retaining Plate |
| 153 | 2610919287 | Retaining Plate |
| 154 | 2610911900 | Screw |
| 154 | 2610911900 | Screw |
| 155 | 2610910784 | Screw |
| 155 | 2610910784 | Screw |
| 156 | 2610997274 | Pin |
| 156 | 2610997274 | Pin |
| 157 | 2610355332 | Square Nut |
| 157 | 2610355332 | Square Nut |
| 158 | 2610921458 | Washer |
| 158 | 2610921458 | Washer |
| 159 | 2610911589 | Felt Washer |
| 159 | 2610911589 | Felt Washer |
| 16 | 2610915761 | Brush Holder |
| 16 | 2610915761 | Brush Holder |
| 160 | 2610919102 | Clamping Block |
| 160 | 2610919102 | Clamping Block |
| 161 | 2610911914 | Set screw |
| 161 | 2610911914 | Set screw |
| 162 | 2610358149 | Nut |
| 162 | 2610358149 | Nut |
| 163 | 2610911584 | Rubber Pad |
| 163 | 2610911584 | Rubber Pad |
| 164 | 2610911583 | Knob |
| 164 | 2610911583 | Knob |
| 165 | 2610911582 | Spring |
| 165 | 2610911582 | Spring |
| 166 | 2610947520 | Bolt |
| 166 | 2610947520 | Bolt |
| 167 | 2610911576 | Compression Spring |
| 167 | 2610911576 | Compression Spring |
| 168 | 2610911577 | Retaining Pin |
| 168 | 2610911577 | Retaining Pin |
| 169 | 2610358848 | Screw |
| 169 | 2610358848 | Screw |
| 170 | 2610327859 | Screw 18,9 MM |
| 170 | 2610327859 | Screw 18,9 MM |
| 171 | 2610911911 | Shoulder Screw |
| 171 | 2610911911 | Shoulder Screw |
| 172 | 2610911921 | Round Rubber |
| 172 | 2610911921 | Round Rubber |
| 173 | 2610911938 | Ball Bearing |
| 173 | 2610911938 | Ball Bearing |
| 174 | 2610911883 | Shoulder Screw |
| 174 | 2610911883 | Shoulder Screw |
| 175 | 2610911906 | Washer |
| 175 | 2610911906 | Washer |
| 176 | 2610911570 | Hex Nut |
| 176 | 2610911570 | Hex Nut |
| 177 | 2610953068 | Plain Washer |
| 177 | 2610953068 | Plain Washer |
| 178 | 2610990521 | Spring retaining ring |
| 178 | 2610990521 | Spring retaining ring |
| 179 | 2610004925 | Screw |
| 179 | 2610004925 | Screw |
| 180 | 2610358812 | Bolt |
| 180 | 2610358812 | Bolt |
| 181 | 2610355325 | Spring Washer |
| 181 | 2610355325 | Spring Washer |
| 183 | 2610327846 | Ball Bearing |
| 183 | 2610327846 | Ball Bearing |
| 185 | 2610317505 | Tapping Screw |
| 185 | 2610317505 | Tapping Screw |
| 186 | 2610993102 | Woodruff Key |
| 186 | 2610993102 | Woodruff Key |
| 187 | 2610997281 | Spring retaining ring |
| 187 | 2610997281 | Spring retaining ring |
| 188 | 2610029674 | Washer |
| 188 | 2610029674 | Washer |
| 189 | 2610996948 | Rubber Ring |
| 189 | 2610996948 | Rubber Ring |
| 190 | 2610358922 | Needle-Roller Bearing |
| 190 | 2610358922 | Needle-Roller Bearing |
| 191 | 2610355277 | Screw |
| 191 | 2610355277 | Screw |
| 192 | 2610015011 | Washer |
| 192 | 2610015011 | Washer |
| 193 | 2610913862 | Screw |
| 193 | 2610913862 | Screw |
| 194 | 2610910786 | Set screw |
| 194 | 2610910786 | Set screw |
| 195 | 2610919060 | Shoulder Screw |
| 195 | 2610919060 | Shoulder Screw |
| 196 | 2610919061 | Compression Spring |
| 196 | 2610919061 | Compression Spring |
| 197 | 2610926010 | Screw |
| 197 | 2610926010 | Screw |
| 198 | 2610926011 | Screw |
| 198 | 2610926011 | Screw |
| 199 | 2610912556 | Retaining snap ring |
| 199 | 2610912556 | Retaining snap ring |
| 2 | 2610945489 | Field |
| 2 | 2610945489 | Field |
| 20 | 2610920805 | Label |
| 20 | 2610920805 | Label |
| 201 | 2610919065 | Screwdriver Bit |
| 201 | 2610919065 | Screwdriver Bit |
| 203 | 2610355295 | Screw |
| 203 | 2610355295 | Screw |
| 204 | 2610919067 | Compression Spring |
| 204 | 2610919067 | Compression Spring |
| 205 | 2610919068 | Compression Spring |
| 205 | 2610919068 | Compression Spring |
| 206 | 2610919069 | Spring Pin |
| 206 | 2610919069 | Spring Pin |
| 207 | 2610911873 | Stop Screw |
| 207 | 2610911873 | Stop Screw |
| 208 | 2610919070 | Shoulder Screw |
| 208 | 2610919070 | Shoulder Screw |
| 209 | 2610919071 | Stop Screw |
| 209 | 2610919071 | Stop Screw |
| 210 | 2610320304 | Screw |
| 210 | 2610320304 | Screw |
| 211 | 2610919072 | Brake Plate |
| 211 | 2610919072 | Brake Plate |
| 212 | 2610919073 | Brake Plate |
| 212 | 2610919073 | Brake Plate |
| 214 | 2615297331 | Nut |
| 214 | 2615297331 | Nut |
| 215 | 2610948208 | Pvc Tube |
| 215 | 2610948208 | Pvc Tube |
| 216 | 2610919075 | Shoulder Screw |
| 216 | 2610919075 | Shoulder Screw |
| 217 | 2610919076 | Shoulder Screw |
| 217 | 2610919076 | Shoulder Screw |
| 218 | 2610327867 | Screw |
| 218 | 2610327867 | Screw |
| 219 | 2610998575 | Screw |
| 219 | 2610998575 | Screw |
| 22 | 2610919259 | Base |
| 22 | 2610919259 | Base |
| 221 | 2610919077 | Compression Spring |
| 221 | 2610919077 | Compression Spring |
| 222 | 2610919078 | Pad |
| 222 | 2610919078 | Pad |
| 223 | 2610919079 | Ball Bearing |
| 223 | 2610919079 | Ball Bearing |
| 224 | 2610919080 | Compression Spring |
| 224 | 2610919080 | Compression Spring |
| 225 | 2610358869 | Retaining snap ring |
| 225 | 2610358869 | Retaining snap ring |
| 226 | 2610919571 | Device cap |
| 226 | 2610919571 | Device cap |
| 228 | 2610358928 | Screw |
| 228 | 2610358928 | Screw |
| 229 | 2610911569 | Insert |
| 229 | 2610911569 | Insert |
| 23 | 2610919261 | Extension Stand |
| 23 | 2610919261 | Extension Stand |
| 230 | 2610327868 | Nut |
| 230 | 2610327868 | Nut |
| 231 | 2610921464 | Sleeve |
| 231 | 2610921464 | Sleeve |
| 232 | 2610911929 | Screw |
| 232 | 2610911929 | Screw |
| 233 | 2610911450 | Washer |
| 233 | 2610911450 | Washer |
| 234 | 2610911566 | Bearing cover |
| 234 | 2610911566 | Bearing cover |
| 235 | 2610318812 | Screw |
| 235 | 2610318812 | Screw |
| 236 | 2610919083 | Retaining snap ring |
| 236 | 2610919083 | Retaining snap ring |
| 237 | 2610919084 | Screw |
| 237 | 2610919084 | Screw |
| 238 | 2610320330 | Screw |
| 238 | 2610320330 | Screw |
| 239 | 2610919085 | Compression Spring |
| 239 | 2610919085 | Compression Spring |
| 24 | 2610919262 | Extension Stand |
| 24 | 2610919262 | Extension Stand |
| 240 | 2610915162 | Screw |
| 240 | 2610915162 | Screw |
| 241 | 2610351178 | Hex Screw |
| 241 | 2610351178 | Hex Screw |
| 242 | 2610945488 | Screw |
| 242 | 2610945488 | Screw |
| 243 | 2610919086 | Pin |
| 243 | 2610919086 | Pin |
| 244 | 2610919087 | Set screw |
| 244 | 2610919087 | Set screw |
| 245 | 2610358519 | Screw |
| 245 | 2610358519 | Screw |
| 246 | 2610925187 | Nut |
| 246 | 2610925187 | Nut |
| 247 | 2610916061 | Stop Plate |
| 247 | 2610916061 | Stop Plate |
| 249 | 2610917658 | Adjusting Wrench |
| 249 | 2610917658 | Adjusting Wrench |
| 25 | 2610919260 | Saw Table |
| 25 | 2610919260 | Saw Table |
| 250 | 2610006436 | Dust Bag |
| 250 | 2610006436 | Dust Bag |
| 251 | 2610919280 | Suction Tube |
| 251 | 2610919280 | Suction Tube |
| 252 | 2610919089 | Quick-Clamping Device |
| 252 | 2610919089 | Quick-Clamping Device |
| 253 | 2610917098 | Label |
| 253 | 2610917098 | Label |
| 254 | 2610911658 | Warning Plate |
| 254 | 2610911658 | Warning Plate |
| 255 | 2610917099 | Label |
| 255 | 2610917099 | Label |
| 256 | 2610917096 | Label |
| 256 | 2610917096 | Label |
| 257 | 2610920807 | Adhesive Label |
| 257 | 2610920807 | Adhesive Label |
| 259 | 2610917097 | Label |
| 259 | 2610917097 | Label |
| 26 | 2610919263 | Support |
| 26 | 2610919263 | Support |
| 262 | 2610911933 | Connector |
| 262 | 2610911933 | Connector |
| 263 | 2610921461 | Wire |
| 263 | 2610921461 | Wire |
| 264 | 2610921462 | Wire |
| 264 | 2610921462 | Wire |
| 265 | 2610921463 | Wire |
| 265 | 2610921463 | Wire |
| 266 | 2610910791 | Nut |
| 266 | 2610910791 | Nut |
| 267 | 2610910792 | Washer |
| 267 | 2610910792 | Washer |
| 268 | 2610004578 | Plain Washer |
| 268 | 2610004578 | Plain Washer |
| 269 | 2610919296 | Adjusting Plate |
| 269 | 2610919296 | Adjusting Plate |
| 27 | 2610919264 | Sliding Support |
| 27 | 2610919264 | Sliding Support |
| 270 | 2610919297 | Adjusting Wedge |
| 270 | 2610919297 | Adjusting Wedge |
| 272 | 2610921470 | Adjusting Screw |
| 272 | 2610921470 | Adjusting Screw |
| 273 | 2610921471 | Adjusting Screw |
| 273 | 2610921471 | Adjusting Screw |
| 274 | 2610919301 | Adjusting Plate |
| 274 | 2610919301 | Adjusting Plate |
| 275 | 2610921472 | Shoulder Screw |
| 275 | 2610921472 | Shoulder Screw |
| 276 | 2610921475 | Retaining snap ring |
| 276 | 2610921475 | Retaining snap ring |
| 277 | 2610919573 | Plate |
| 277 | 2610919573 | Plate |
| 278 | 2610919300 | Latch |
| 278 | 2610919300 | Latch |
| 279 | 2610921476 | Contact strap |
| 279 | 2610921476 | Contact strap |
| 28 | 2610919265 | Sliding Support |
| 28 | 2610919265 | Sliding Support |
| 280 | 2610919575 | Holder |
| 280 | 2610919575 | Holder |
| 281 | 2610921477 | Spring |
| 281 | 2610921477 | Spring |
| 282 | 2610921479 | Sleeve |
| 282 | 2610921479 | Sleeve |
| 283 | 2610921480 | Screw |
| 283 | 2610921480 | Screw |
| 284 | 2610921481 | Screw |
| 284 | 2610921481 | Screw |
| 286 | 2610921512 | Double head engin wrench |
| 286 | 2610921512 | Double head engin wrench |
| 287 | 2610921483 | Hexagon Socket Wrench |
| 287 | 2610921483 | Hexagon Socket Wrench |
| 288 | 2610921484 | Connection Block |
| 288 | 2610921484 | Connection Block |
| 289 | 2610921487 | Shim |
| 289 | 2610921487 | Shim |
| 29 | 2610919266 | Bearing Pedestal |
| 29 | 2610919266 | Bearing Pedestal |
| 290 | 2610921488 | Device cap |
| 290 | 2610921488 | Device cap |
| 291 | 2610919282 | Plain Washer |
| 291 | 2610919282 | Plain Washer |
| 292 | 2610919281 | Washer |
| 292 | 2610919281 | Washer |
| 293 | 2610919272 | Housing Cover Old |
| 293 | 2610919272 | Housing Cover Old |
| 294 | 2610919279 | Housing Cover |
| 294 | 2610919279 | Housing Cover |
| 295 | 2610919273 | Nut Old |
| 295 | 2610919273 | Nut Old |
| 296 | 2610921459 | Nut |
| 296 | 2610921459 | Nut |
| 297 | 2610921460 | Knob Old |
| 297 | 2610921460 | Knob Old |
| 298 | 2610919572 | Bushing |
| 298 | 2610919572 | Bushing |
| 299 | 2610919298 | Screw |
| 299 | 2610919298 | Screw |
| 3 | 2610915752 | Armature 115V |
| 3 | 2610915752 | Armature 115V |
| 30 | 2610919267 | End cap |
| 30 | 2610919267 | End cap |
| 300 | 2610921464 | Sleeve |
| 300 | 2610921464 | Sleeve |
| 301 | 2610921466 | Screw |
| 301 | 2610921466 | Screw |
| 302 | 2610921467 | Spacer |
| 302 | 2610921467 | Spacer |
| 303 | 2610910013 | Washer |
| 303 | 2610910013 | Washer |
| 304 | 2610919276 | Screw |
| 304 | 2610919276 | Screw |
| 305 | 2610913099 | Plain Washer |
| 305 | 2610913099 | Plain Washer |
| 306 | 2610920808 | Label |
| 306 | 2610920808 | Label |
| 307 | 2610920809 | Label |
| 307 | 2610920809 | Label |
| 309 | 2610002585 | Washer |
| 309 | 2610002585 | Washer |
| 31 | 2610915772 | Handle |
| 31 | 2610915772 | Handle |
| 317 | 2610923939 | Label |
| 317 | 2610923939 | Label |
| 318 | 2610923938 | Label |
| 318 | 2610923938 | Label |
| 32 | 2610915727 | Handle |
| 32 | 2610915727 | Handle |
| 320 | 2610906037 | Bolt |
| 320 | 2610906037 | Bolt |
| 33 | 2610915728 | Bearing Pedestal |
| 33 | 2610915728 | Bearing Pedestal |
| 34 | 2610919268 | Gear Housing |
| 34 | 2610919268 | Gear Housing |
| 35 | 2610927691 | Safety Cover |
| 35 | 2610927691 | Safety Cover |
| 36 | 2610915731 | Intermediate Layer |
| 36 | 2610915731 | Intermediate Layer |
| 37 | 2610915732 | Housing Cover |
| 37 | 2610915732 | Housing Cover |
| 38 | 2610919275 | Housing Cover |
| 38 | 2610919275 | Housing Cover |
| 39 | 2610915734 | Handle Cover |
| 39 | 2610915734 | Handle Cover |
| 4 | 2610950336 | Switch |
| 4 | 2610950336 | Switch |
| 40 | 2610915735 | Bearing Pedestal |
| 40 | 2610915735 | Bearing Pedestal |
| 41 | 2610915736 | Bearing Pedestal |
| 41 | 2610915736 | Bearing Pedestal |
| 42 | 2610915737 | Bearing Pedestal |
| 42 | 2610915737 | Bearing Pedestal |
| 43 | 2610915738 | Bearing Pedestal |
| 43 | 2610915738 | Bearing Pedestal |
| 44 | 2610915739 | Trigger |
| 44 | 2610915739 | Trigger |
| 45 | 2610915740 | Button |
| 45 | 2610915740 | Button |
| 46 | 2610915741 | Button |
| 46 | 2610915741 | Button |
| 47 | 2610915742 | Linkage part |
| 47 | 2610915742 | Linkage part |
| 48 | 2610919289 | Pointer |
| 48 | 2610919289 | Pointer |
| 49 | 2610915744 | Release Lever |
| 49 | 2610915744 | Release Lever |
| 5 | 2610923314 | Cord |
| 5 | 2610923314 | Cord |
| 50 | 2610915745 | Collar |
| 50 | 2610915745 | Collar |
| 51 | 2610915746 | Collar |
| 51 | 2610915746 | Collar |
| 52 | 2610915747 | Latch |
| 52 | 2610915747 | Latch |
| 53 | 2610915748 | Latch |
| 53 | 2610915748 | Latch |
| 54 | 2610949175 | Torsion Spring |
| 54 | 2610949175 | Torsion Spring |
| 55 | 2610915704 | Plate |
| 55 | 2610915704 | Plate |
| 56 | 2610919286 | Support Plate |
| 56 | 2610919286 | Support Plate |
| 57 | 2610009612 | Knob |
| 57 | 2610009612 | Knob |
| 58 | 2610919285 | Linkage |
| 58 | 2610919285 | Linkage |
| 59 | 2610915708 | Holding Fixture |
| 59 | 2610915708 | Holding Fixture |
| 6 | 2610915755 | Cord guard |
| 6 | 2610915755 | Cord guard |
| 60 | 2610919569 | Leaf Spring |
| 60 | 2610919569 | Leaf Spring |
| 61 | 2610915710 | Cover |
| 61 | 2610915710 | Cover |
| 62 | 2610915711 | Lever |
| 62 | 2610915711 | Lever |
| 63 | 2610919291 | Bracket |
| 63 | 2610919291 | Bracket |
| 64 | 2610919270 | Cam |
| 64 | 2610919270 | Cam |
| 65 | 2610915714 | Knob |
| 65 | 2610915714 | Knob |
| 66 | 2610915715 | Bracket |
| 66 | 2610915715 | Bracket |
| 67 | 2610919570 | Cable Clip |
| 67 | 2610919570 | Cable Clip |
| 68 | 2610915717 | Bracket |
| 68 | 2610915717 | Bracket |
| 69 | 2610927693 | Wheel Guard |
| 69 | 2610927693 | Wheel Guard |
| 7 | 2610921465 | Fastening Clamp |
| 7 | 2610921465 | Fastening Clamp |
| 70 | 2610915719 | Plate |
| 70 | 2610915719 | Plate |
| 71 | 2610919284 | Linkage |
| 71 | 2610919284 | Linkage |
| 72 | 2610919274 | Locking Lever |
| 72 | 2610919274 | Locking Lever |
| 73 | 2610915722 | Baffle |
| 73 | 2610915722 | Baffle |
| 74 | 2610919290 | Rod |
| 74 | 2610919290 | Rod |
| 75 | 2610915724 | Roller |
| 75 | 2610915724 | Roller |
| 76 | 2610919271 | Cam Ring |
| 76 | 2610919271 | Cam Ring |
| 77 | 2610915726 | Push-Button |
| 77 | 2610915726 | Push-Button |
| 78 | 1609902518 | Stop Plate |
| 78 | 1609902518 | Stop Plate |
| 79 | 2610915687 | Knob |
| 79 | 2610915687 | Knob |
| 8 | 2610920803 | Nameplate |
| 8 | 2610957125 | Nameplate |
| 80 | 2610915688 | Locking Lever |
| 80 | 2610915688 | Locking Lever |
| 81 | 2610915689 | Locking Lever |
| 81 | 2610915689 | Locking Lever |
| 82 | 2610915690 | Retaining Plate |
| 82 | 2610915690 | Retaining Plate |
| 827 | 1619P03312 | Assembly Of Service Parts |
| 827 | 1619P03312 | Assembly Of Service Parts |
| 83 | 2610915691 | Cover |
| 83 | 2610915691 | Cover |
| 84 | 2610919288 | Pointer |
| 84 | 2610919288 | Pointer |
| 85 | 2610919283 | Pointer |
| 85 | 2610919283 | Pointer |
| 86 | 2610915694 | Cable Cleat |
| 86 | 2610915694 | Cable Cleat |
| 88 | 2610921478 | Scale Plate |
| 88 | 2610921478 | Scale Plate |
| 89 | 2610919574 | Stop Block |
| 89 | 2610919574 | Stop Block |
| 90 | 2610915698 | Wrench Socket |
| 90 | 2610915698 | Wrench Socket |
| 91 | 2610915699 | Rubber Bushing |
| 91 | 2610915699 | Rubber Bushing |
| 92 | 2610915700 | Bearing Cover Plate |
| 92 | 2610915700 | Bearing Cover Plate |
| 93 | 2610915701 | Retaining Plate |
| 93 | 2610915701 | Retaining Plate |
| 94 | 2610927711 | Gear Cover |
| 94 | 2610927711 | Gear Cover |
| 95 | 2610911863 | Sliding Plate |
| 95 | 2610911863 | Sliding Plate |
| 97 | 2610916459 | Guide Bracket |
| 97 | 2610916459 | Guide Bracket |
| 98 | 2610916460 | Bushing |
| 98 | 2610916460 | Bushing |
| 99 | 2610921843 | Screw |
| 99 | 2610921843 | Screw |
Selected parts0
