Makita 4390D
Makita 4390D: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4390D: 26 positions on 1 sheet

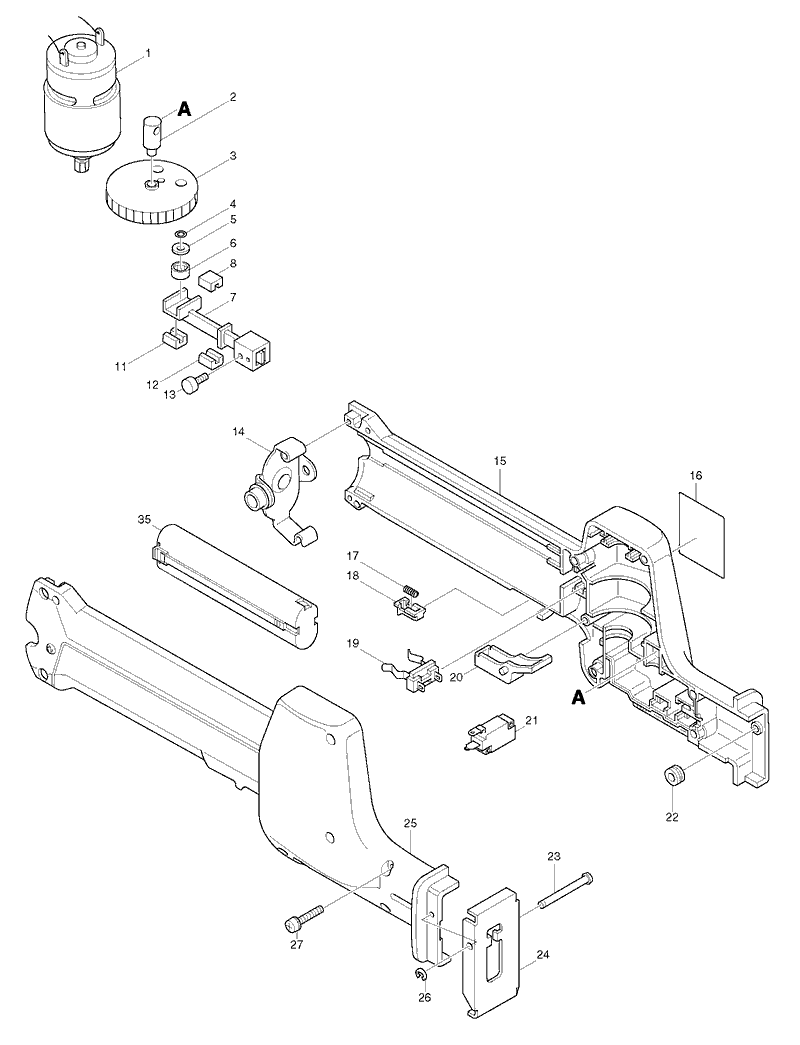

Sheet 1: Makita 4390D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 629581-1 | Makita 629581-1 DC Motor 9.6V for 6095D UM1690D |
| 2 | 152272-4 | |
| 3 | 153202-8 | |
| 4 | 253307-5 | Makita 253307-5 THIN WASHER 4 |
| 5 | 253874-0 | Makita 253874-0 Flat Washer 4 for UC3020A LS1016 |
| 6 | 212014-9 | Makita 212014-9 NEEDLE BEARING 407 |
| 7 | 154401-5 | Makita 154401-5 SLIDER |
| 8 | 214020-0 | Makita 214020-0 PLANE BEARING 3 |
| 11 | 214020-0 | Makita 214020-0 PLANE BEARING 3 |
| 12 | 214020-0 | Makita 214020-0 PLANE BEARING 3 |
| 13 | 922107-1 | Makita 922107-1 Hex. Socket Head Bolt for LC1230 |
| 14 | 163157-9 | Makita 163157-9 SET PLATE |
| 15 | 182406-5 | |
| 16 | 855903-1 | Makita 855903-1 NAME PLATE 4390D |
| 17 | 231390-2 | |
| 18 | 414169-8 | |
| 19 | 643909-9 | Makita 643909-9 BATTERY HOLDER *, 6222D |
| 20 | 410972-5 | Makita 410972-5 TRIGGER |
| 21 | 651866-7 | Makita 651866-7 SWITCH V-5130E-092 |
| 22 | 322099-8 | Makita 322099-8 ROLLER |
| 23 | 256654-3 | Makita 256654-3 PIN 4 |
| 24 | 343875-7 | |
| 25 | 182406-5 | |
| 26 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 27 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 35 | 191681-2 |
