Makita 4340CT
Makita 4340CT: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4340CT: 78 positions on 1 sheet

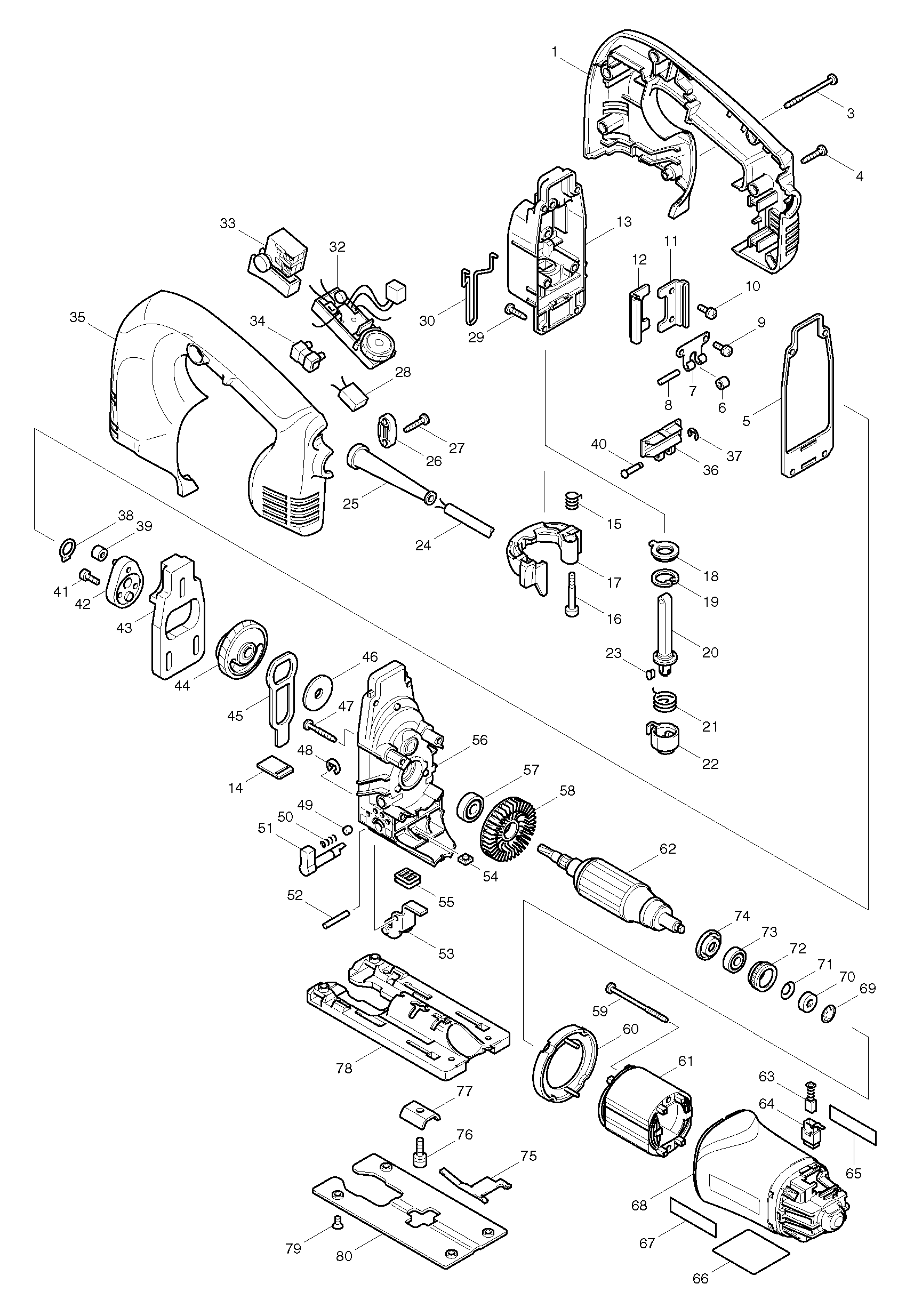

Sheet 1: Makita 4340CT parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183423-8 | |
| 3 | 266091-3 | Makita 266091-3 TAPPING SCREW 4X50, LS1040F |
| 4 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 5 | 442138-9 | Makita 442138-9 Packing for 4340FTC |
| 6 | 214031-5 | Makita 214031-5 PLANE BEARING 4 |
| 7 | 232207-2 | Makita 232207-2 Leaf Spring for 4340FTC |
| 8 | 256117-9 | Makita 256117-9 PIN 4, 4322 |
| 9 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 10 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 11 | 345240-6 | Makita 345240-6 Linear Guide for 4340FTC |
| 12 | 345240-6 | Makita 345240-6 Linear Guide for 4340FTC |
| 13 | 153338-3 | Makita 153338-3 Gear Housing Cover Complete 4340FCT |
| 14 | 417839-8 | Makita 417839-8 SEAL PLATE 4340FTC |
| 15 | 231659-4 | Makita 231659-4 Torsion Spring for BJV140, BJV180, 4340CT, 4340FTC |
| 16 | 265026-1 | Makita 265026-1 Pan Head Screw M4 for LS1016L |
| 17 | 417842-9 | Makita 417842-9 TOOL OPENER 4340FCT |
| 18 | 421817-2 | Makita 421817-2 Dust Cover for 4340FTC |
| 19 | 962068-3 | Makita 962068-3 RETAINING RING R-18 |
| 20 | 165326-8 | Makita 165326-8 ROD 4340FTC |
| 21 | 231660-9 | Makita 231660-9 Torsion Spring for 4340FTC |
| 22 | 310136-0 | Makita 310136-0 Jigsaw Blade Clamp 4340FCT 4340CT 4341CT 4350CT 4351CT |
| 23 | 310135-2 | Makita 310135-2 PUSH PIN 4340FCT |
| 24 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 25 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 26 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 27 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 28 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 29 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 30 | 324233-6 | Makita 324233-6 SAFETY WIRE 4340FTC |
| 32 | 631463-5 | Makita 631463-5 Controller for 4340CT |
| 33 | 650202-4 | Makita 650202-4 Switch for JV0600 |
| 34 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 35 | 183423-8 | |
| 36 | 310134-4 | Makita 310134-4 Slider for BJV140, BJV180, 4340CT, 4340FTC |
| 37 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 38 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 39 | 212014-9 | Makita 212014-9 NEEDLE BEARING 407 |
| 40 | 268090-1 | Makita 268090-1 PIN 4, JV0600 |
| 41 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 42 | 153336-7 | Makita 153336-7 Crank Complete for 4340FTC |
| 43 | 313108-4 | Makita 313108-4 BALANCE PLATE, 4340T |
| 44 | 153335-9 | Makita 153335-9 Gear Complete 4340FCT 4341 4350 4351 4340 SMA400 |
| 45 | 345235-9 | Makita 345235-9 PUSH PLATE 4340FTC |
| 46 | 253877-4 | Makita 253877-4 FLAT WASHER 8 |
| 47 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 48 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 49 | 286032-3 | Makita 286032-3 CAP 5 4340FTC |
| 50 | 233139-6 | Makita 233139-6 COMP.SPRING 3 4340FTC |
| 51 | 272244-4 | Makita 272244-4 LEVER 17, 4340T |
| 52 | 268063-4 | Makita 268063-4 PIN 4 4340FTC |
| 53 | 153334-1 | Makita 153334-1 Jigsaw Blade Guide for 4340FCT 4350FCT 4351FCT BJV140 BJV180 |
| 54 | 252171-1 | Makita 252171-1 SQUARE NUT M5-8 4340FTC |
| 55 | 421816-4 | Makita 421816-4 DUST SEAL 4340FTC |
| 56 | 153337-5 | Makita 153337-5 GEAR HOUSING COMPLETE |
| 57 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 58 | 241881-5 | Makita 241881-5 FAN 52, 6409 |
| 59 | 266052-3 | Makita 266052-3 TAPPING SCREW, UB1101 |
| 60 | 417838-0 | Makita 417838-0 BAFFLE PLATE 4340FTC |
| 61 | 593508-6 | Makita 593508-6 FIED ASSY 240V 4340FTC |
| 62 | 517398-3 | Makita 517398-3 Armature Ass*y 4340FT 4341 4350 4351 240V |
| 63 | 191962-4 | Old code CB-419 = CB-407 |
| 64 | 643936-6 | Makita 643936-6 BRUSH HOLDER 6*9, HP1500 |
| 65 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 66 | 853851-8 | |
| 67 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 68 | 183435-1 | Makita 183435-1 MOTOR HOUSING 4340FTC |
| 69 | 259039-2 | Makita 259039-2 SELF LOCK 6 4340FTC |
| 70 | 688117-5 | Makita 688117-5 Magnet Sleeve for GD0800C GDO810C |
| 71 | 267756-0 | Makita 267756-0 WAVE WASHER 6 |
| 72 | 421494-0 | Makita 421494-0 Labyrinthhian Rubber Ring 9, 4304Z |
| 73 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 74 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 75 | 232208-0 | Makita 232208-0 Leaf Spring for 4340FTC |
| 76 | 922226-3 | Makita 922226-3 HEX.SOCKET HEAD BOLT M5X18, LS1016L |
| 77 | 345237-5 | Makita 345237-5 CRANK PLATE 4340FTC |
| 78 | 317565-8 | Makita 317565-8 Base 4340FTC 4340CT 4341CT BJV180 |
| 79 | 912107-9 | Makita 912107-9 Countersunk Head Screw M4X8 5740NB 5037NB |
| 80 | 345238-3 | Makita 345238-3 Base Plate |
