Makita 4328
Makita 4328: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 4328: 50 positions on 1 sheet

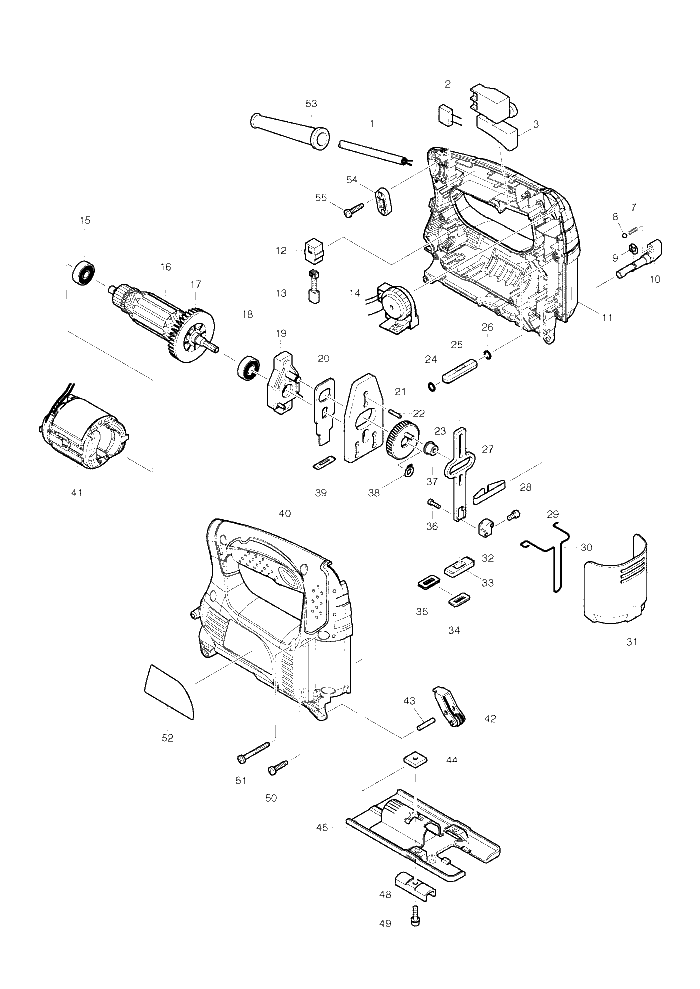

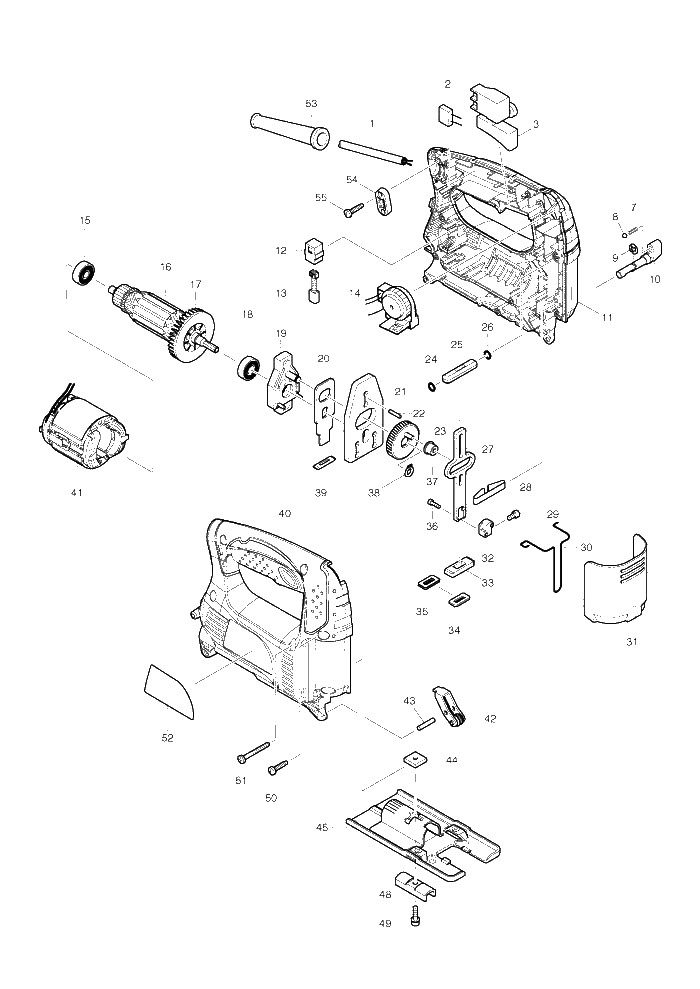

Sheet 1: Makita 4328 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
| 2 | 645239-4 | Makita 645239-4 CAPACITOR, UC3530A |
| 3 | 651286-5 | Makita 651286-5 Switch for 4322 4323 4327 4329 BO3700 BO4900V BO4901 BO5021 |
| 7 | 233151-6 | Makita 233151-6 COMPRESSION SPRING 4, 4322 |
| 8 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 9 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 10 | 272239-7 | Makita 272239-7 LEVER 18, 4322 |
| 11 | 188338-4 | Makita 188338-4 HOUSING SET, 4328 |
| 12 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 13 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 14 | 631777-2 | Makita 631777-2 Controller 240v for Jigsaw 4327 4328 4329 |
| 15 | 210025-8 | Makita 210025-8 BALL BEARING 627LLB, 9035 |
| 16 | 515718-5 | Makita 515718-5 Armature Ass'y 220V for 4322 4324 4326 4327 4329 |
| 18 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 19 | 152600-3 | Makita 152600-3 Bearing Case Complete for 4324 4328 4329 MT431 |
| 20 | 344683-9 | Makita 344683-9 PUSH PLATE, 4322 |
| 21 | 344614-8 | Makita 344614-8 BALANCE PLATE, 4322 |
| 22 | 256254-9 | Makita 256254-9 PIN 3, 4322 |
| 23 | 153260-4 | Makita 153260-4 Helical Gear Complete for Jig Saw 4324 |
| 24 | 213038-8 | Makita 213038-8 O RING 5, 4322 |
| 25 | 313082-6 | Makita 313082-6 Slider Guide 4322 4323 4324 4326 4327 4328 4329 JV100D MT431 |
| 26 | 213038-8 | Makita 213038-8 O RING 5, 4322 |
| 27 | 344613-0 | Makita 344613-0 Slider for 4322 4323 4324 4326 |
| 28 | 232183-0 | Makita 232183-0 LEAF SPRING, 4322 |
| 29 | 922107-1 | Makita 922107-1 Hex. Socket Head Bolt for LC1230 |
| 30 | 323748-0 | Makita 323748-0 Safety Wire for 4324 |
| 31 | 416476-5 | Makita 416476-5 DUST COVER 4322, 4322 |
| 32 | 313140-8 | Makita 313140-8 Blade Clamp for 4328 |
| 33 | 313086-8 | Makita 313086-8 SLIDER SUPPORT, 4322 |
| 34 | 423307-1 | Makita 423307-1 POLYURTHAN SPONGESEAL, 4322 |
| 35 | 344686-3 | Makita 344686-3 SEAL PLATE, 4322 |
| 36 | 266177-3 | Makita 266177-3 Hex Socket Head Bolt M3*10 4322 |
| 37 | 257683-9 | Makita 257683-9 Shoulder Sleeve 4 for 4322 4323 4324 4326 4327 4328 |
| 38 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 39 | 416703-0 | Makita 416703-0 DUST SEAL, 4322 |
| 40 | 188338-4 | Makita 188338-4 HOUSING SET, 4328 |
| 41 | 633658-6 | Makita 633658-6 FIELD 220V 190T, 4329 |
| 42 | 158392-2 | Makita 158392-2 Retainer complete for 4329 JV100D MT431 |
| 43 | 256117-9 | Makita 256117-9 PIN 4, 4322 |
| 44 | 343540-8 | Makita 343540-8 HOLDER, 4322 |
| 45 | 163397-9 | Makita 163397-9 Base Plate for 4322 4324 4329 JV0600 JV100D |
| 48 | 344685-5 | Makita 344685-5 CLAME PLATE, 4322 |
| 49 | 922128-3 | Makita 922128-3 Hex. Socket Head Bolt M4X16 for 4324 |
| 50 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 51 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 52 | 863965-5 | |
| 53 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 54 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 55 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 17 | 241881-5 | Makita 241881-5 FAN 52, 6409 |
