All parts of Makita 4324: 50 positions on 1 sheet

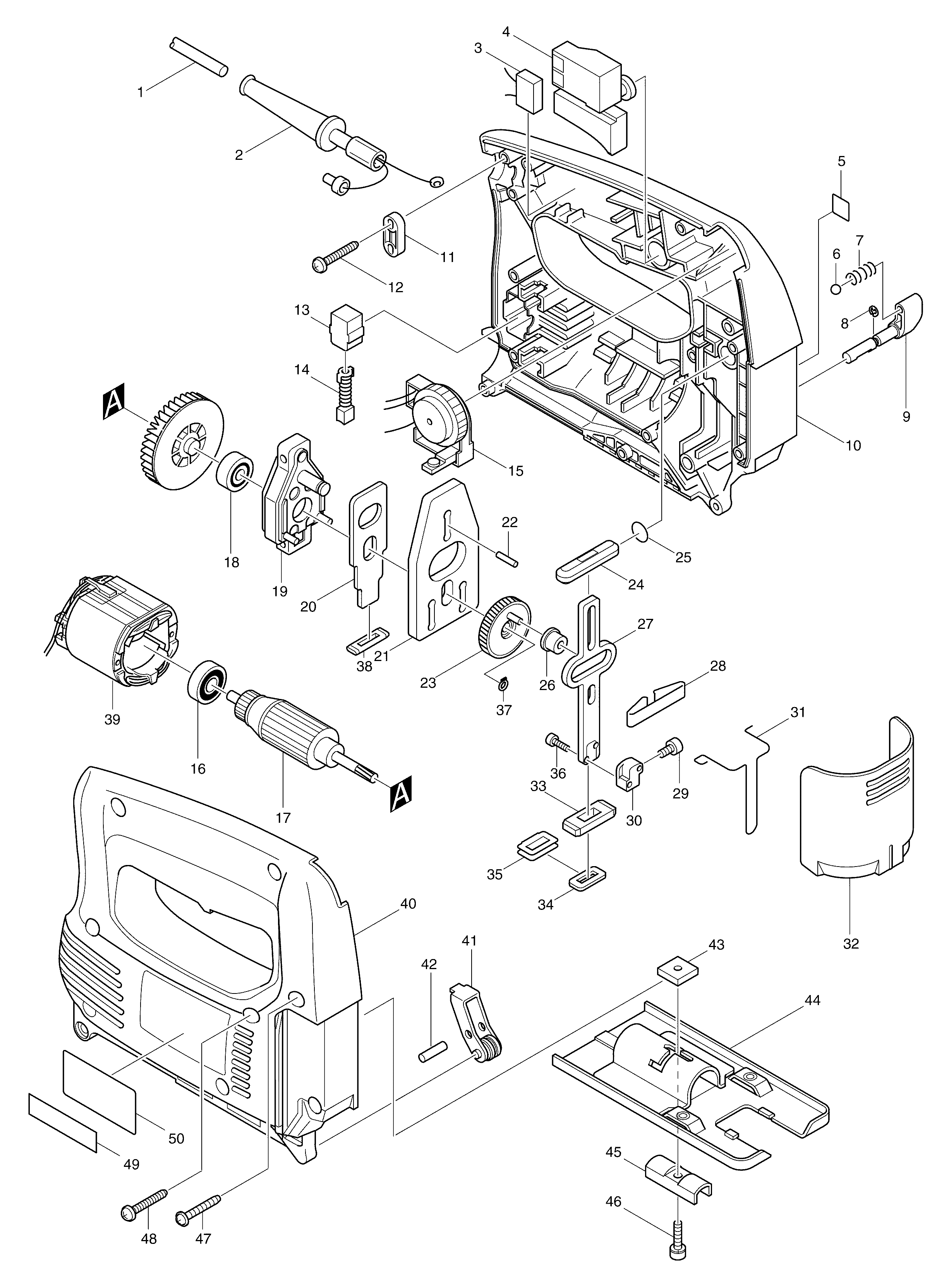

Sheet 1: Makita 4324 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 666053-5 | Makita 666053-5 POWER S.CORD HD-21 CORD, 4329 |
| 2 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 3 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 4 | 651286-5 | Makita 651286-5 Switch for 4322 4323 4327 4329 BO3700 BO4900V BO4901 BO5021 |
| 5 | 816343-8 | Makita 816343-8 INDICATION LABEL |
| 6 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 7 | 233151-6 | Makita 233151-6 COMPRESSION SPRING 4, 4322 |
| 8 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 9 | 272239-7 | Makita 272239-7 LEVER 18, 4322 |
| 10 | 183051-9 | Makita 183051-9 HOUSING R COMPLETE 4324, 4324 |
| 11 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 12 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 13 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 14 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 15 | 631266-7 | Makita 631266-7 Controller for 4323 4324 |
| 16 | 210025-8 | Makita 210025-8 BALL BEARING 627LLB, 9035 |
| 17 | 517268-6 | Makita 517268-6 ARMATURE ASSY 4322 |
| 18 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 19 | 152600-3 | Makita 152600-3 Bearing Case Complete for 4324 4328 4329 MT431 |
| 20 | 344683-9 | Makita 344683-9 PUSH PLATE, 4322 |
| 21 | 344614-8 | Makita 344614-8 BALANCE PLATE, 4322 |
| 22 | 256254-9 | Makita 256254-9 PIN 3, 4322 |
| 23 | 153260-4 | Makita 153260-4 Helical Gear Complete for Jig Saw 4324 |
| 24 | 313082-6 | Makita 313082-6 Slider Guide 4322 4323 4324 4326 4327 4328 4329 JV100D MT431 |
| 25 | 213038-8 | Makita 213038-8 O RING 5, 4322 |
| 26 | 257683-9 | Makita 257683-9 Shoulder Sleeve 4 for 4322 4323 4324 4326 4327 4328 |
| 27 | 344613-0 | Makita 344613-0 Slider for 4322 4323 4324 4326 |
| 28 | 232183-0 | Makita 232183-0 LEAF SPRING, 4322 |
| 29 | 922107-1 | Makita 922107-1 Hex. Socket Head Bolt for LC1230 |
| 30 | 313083-4 | Makita 313083-4 Blade Clamp for 4322 4324 4323 Jigsaw |
| 31 | 323748-0 | Makita 323748-0 Safety Wire for 4324 |
| 32 | 416476-5 | Makita 416476-5 DUST COVER 4322, 4322 |
| 33 | 313086-8 | Makita 313086-8 SLIDER SUPPORT, 4322 |
| 34 | 423307-1 | Makita 423307-1 POLYURTHAN SPONGESEAL, 4322 |
| 35 | 344686-3 | Makita 344686-3 SEAL PLATE, 4322 |
| 36 | 266177-3 | Makita 266177-3 Hex Socket Head Bolt M3*10 4322 |
| 37 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 38 | 416703-0 | Makita 416703-0 DUST SEAL, 4322 |
| 39 | 633408-9 | Makita 633408-9 FIELD 220V-240V, 4323 |
| 40 | 183051-9 | Makita 183051-9 HOUSING R COMPLETE 4324, 4324 |
| 41 | 152601-1 | Makita 152601-1 Retainer Complete for 4324 |
| 42 | 256117-9 | Makita 256117-9 PIN 4, 4322 |
| 43 | 343540-8 | Makita 343540-8 HOLDER, 4322 |
| 44 | 163397-9 | Makita 163397-9 Base Plate for 4322 4324 4329 JV0600 JV100D |
| 45 | 344685-5 | Makita 344685-5 CLAME PLATE, 4322 |
| 46 | 266178-1 | Makita 266178-1 HEX.SOCKET HEAD BOLT |
| 47 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 48 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 49 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 50 | 859816-8 | Makita 859816-8 4324 NAME PLATE |
